Week 3: Getting Fancy with Regression

DSAN 5300: Statistical Learning
Spring 2026, Georgetown University

Class Sessions
Author
Affiliation

Jeff Jacobs

jj1088@georgetown.edu

Published

Monday, January 26, 2026

Open slides in new tab →

Recap: Linear Regression

  • What happens to my dependent variable \(Y\) when my independent variable \(X\) changes by 1 unit?

  • Whenever you carry out a regression, keep the goal in the front of your mind:

    Tip The Goal of Regression

    Find a line \(\widehat{y} = mx + b\) that best predicts \(Y\) for given values of \(X\)

What Regression is Not

  • Final reminder that Regression, PCA have different goals!

  • If your goal was to, e.g., generate realistic \((x,y)\) pairs, then (mathematically) you want PCA! Roughly:

    \[ \widehat{f}_{\text{PCA}} = \min_{\mathbf{c}}\left[ \sum_{i=1}^{n} (\widehat{x}_i(\mathbf{c}) - x_i)^2 + (\widehat{y}_i(\mathbf{c}) - y_i)^2 \right] \]

  • Our goal is a good predictor of \(Y\):

    \[ \widehat{f}_{\text{Reg}} = \min_{\beta_0, \beta_1}\left[ \sum_{i=1}^{n} (\widehat{y}_i(\beta) - y_i)^2 \right] \]

How Do We Define “Best”?

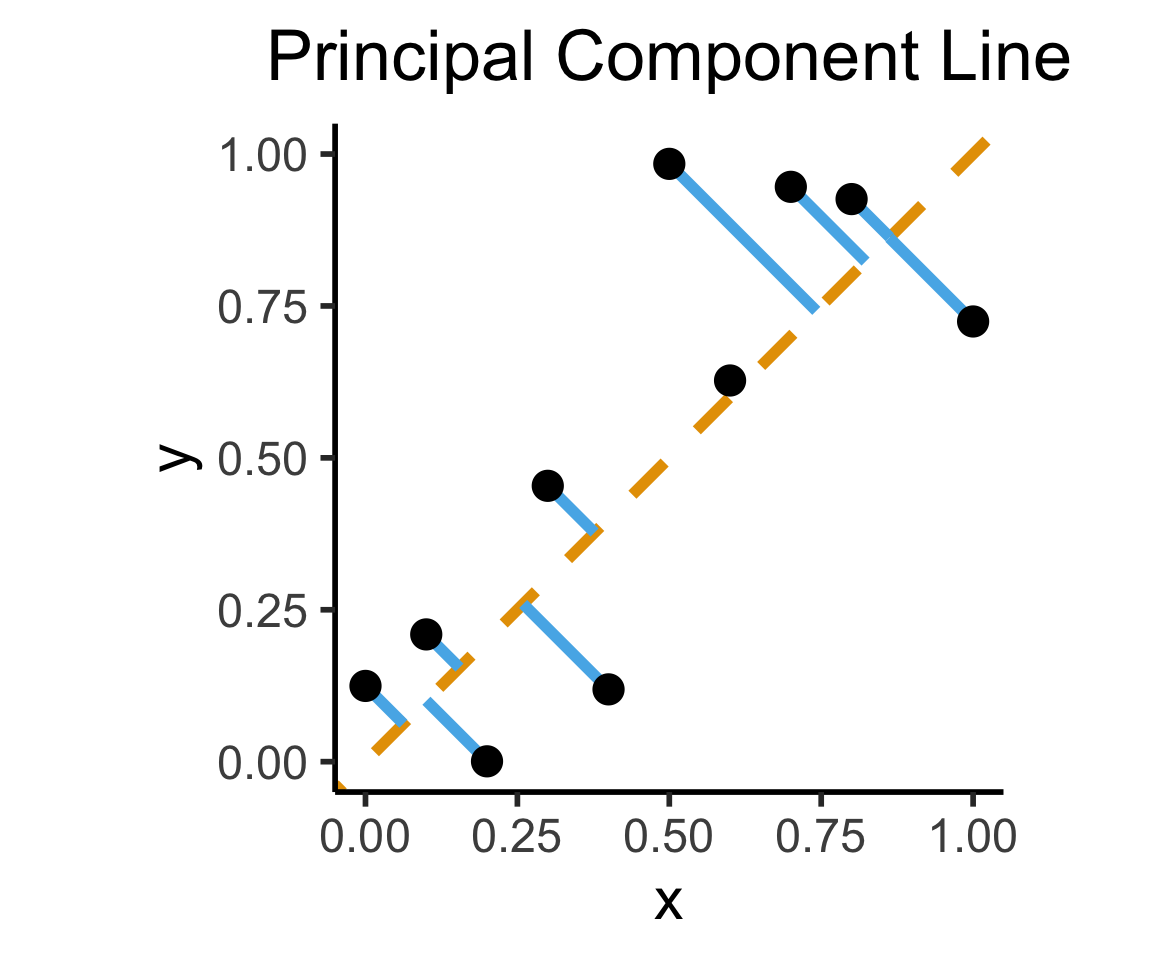

  • Intuitively, two different ways to measure how well a line fits the data:
Code
library(tidyverse)
set.seed(5321)
N <- 11
x <- seq(from = 0, to = 1, by = 1 / (N - 1))
y <- x + rnorm(N, 0, 0.2)
mean_y <- mean(y)
spread <- y - mean_y
df <- tibble(x = x, y = y, spread = spread)
ggplot(df, aes(x=x, y=y)) +
  geom_abline(slope=1, intercept=0, linetype="dashed", color=cbPalette[1], linewidth=g_linewidth*2) +
  geom_segment(xend=(x+y)/2, yend=(x+y)/2, linewidth=g_linewidth*2, color=cbPalette[2]) +
  geom_point(size=g_pointsize) +
  coord_equal() +
  xlim(0, 1) + ylim(0, 1) +
  dsan_theme("half") +
  labs(
    title = "Principal Component Line"
  )
ggplot(df, aes(x=x, y=y)) +
  geom_abline(slope=1, intercept=0, linetype="dashed", color=cbPalette[1], linewidth=g_linewidth*2) +
  geom_segment(xend=x, yend=x, linewidth=g_linewidth*2, color=cbPalette[2]) +
  geom_point(size=g_pointsize) +
  coord_equal() +
  xlim(0, 1) + ylim(0, 1) +
  dsan_theme("half") +
  labs(
    title = "Regression Line"
  )
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.5
✔ forcats   1.0.0     ✔ stringr   1.5.1
✔ lubridate 1.9.4     ✔ tibble    3.3.0
✔ purrr     1.0.4     ✔ tidyr     1.3.1
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_segment()`).
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_point()`).

Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_segment()`).
Warning: Removed 1 row containing missing values or values outside the scale range
(`geom_point()`).

On the difference between these two lines, and why it matters, I cannot recommend Gelman and Hill (2007) enough!

Deriving the Least Squares Estimate

A Sketch

  • OLS for regression without intercept: Which line through origin best predicts \(Y\)?
  • (Good practice + reminder of how restricted linear models are!)

\[ Y = \beta_1 X + \varepsilon \]

Code
library(latex2exp)
set.seed(5300)
# rand_slope <- log(runif(80, min=0, max=1))
# rand_slope[41:80] <- -rand_slope[41:80]
# rand_lines <- tibble::tibble(
#   id=1:80, slope=rand_slope, intercept=0
# )
# angles <- runif(100, -pi/2, pi/2)
angles <- seq(from=-pi/2, to=pi/2, length.out=50)
possible_lines <- tibble::tibble(
  slope=tan(angles), intercept=0
)
num_points <- 30
x_vals <- runif(num_points, 0, 1)
y0_vals <- 0.5 * x_vals + 0.25
y_noise <- rnorm(num_points, 0, 0.07)
y_vals <- y0_vals + y_noise
rand_df <- tibble::tibble(x=x_vals, y=y_vals)

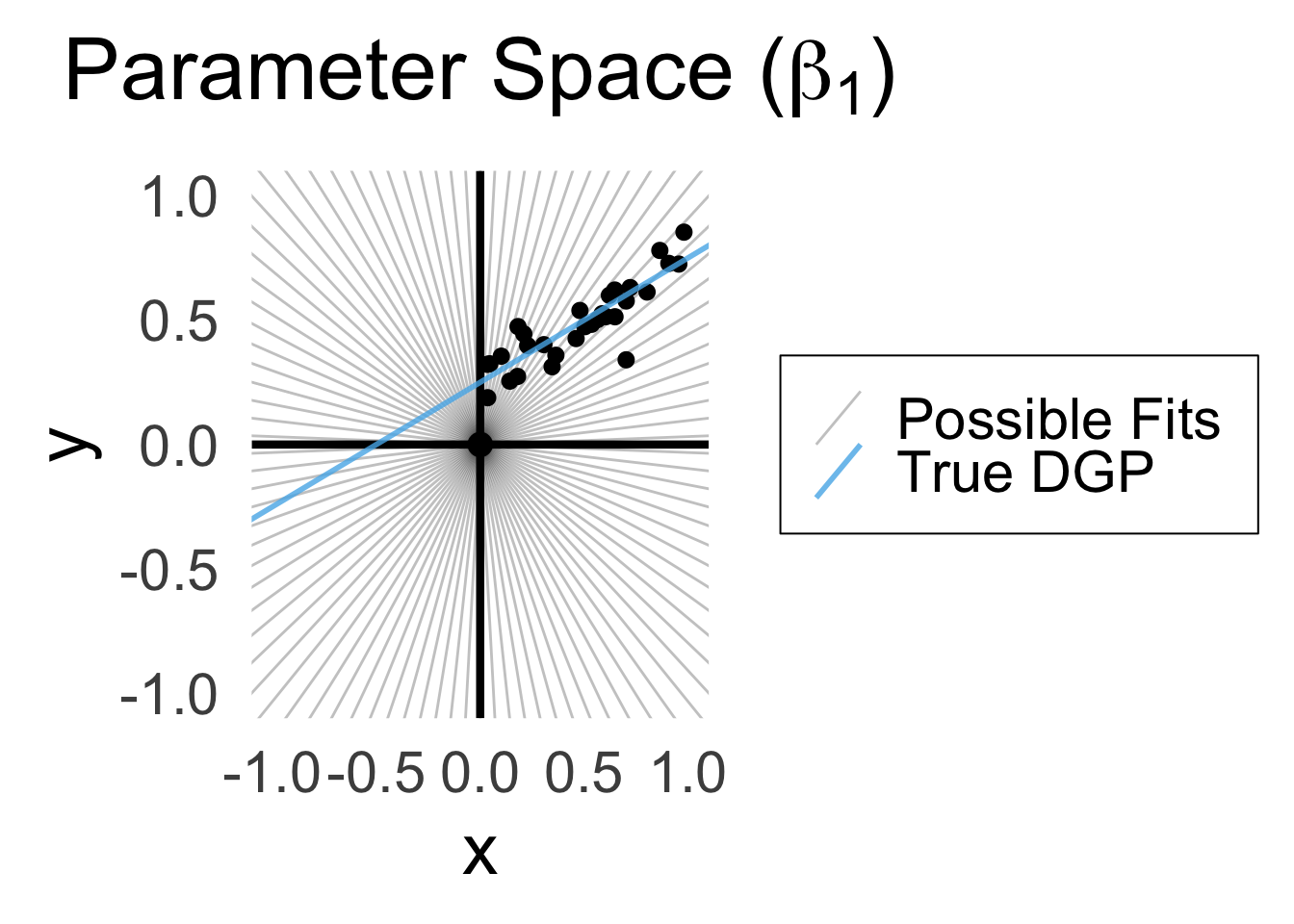

title_exp <- TeX("Parameter Space ($\\beta_1$)")
# Main plot object
gen_lines_plot <- function(point_size=2.5) {
  lines_plot <- rand_df |> ggplot(aes(x=x, y=y)) +
    geom_point(size=point_size) +
    geom_hline(yintercept=0, linewidth=1.5) +
    geom_vline(xintercept=0, linewidth=1.5) +
    # Point at origin
    geom_point(data=data.frame(x=0, y=0), aes(x=x, y=y), size=4) +
    xlim(-1,1) +
    ylim(-1,1) +
    # coord_fixed() +
    theme_dsan_min(base_size=28)
  return(lines_plot)
}
main_lines_plot <- gen_lines_plot()
main_lines_plot +
  # Parameter space of possible lines
  geom_abline(
    data=possible_lines,
    aes(slope=slope, intercept=intercept, color='possible'),
    # linetype="dotted",
    # linewidth=0.75,
    alpha=0.25
  ) +
  # True DGP
  geom_abline(
    aes(
      slope=0.5,
      intercept=0.25,
      color='true'
    ), linewidth=1, alpha=0.8
  ) +
  scale_color_manual(
    element_blank(),
    values=c('possible'="black", 'true'=cb_palette[2]),
    labels=c('possible'="Possible Fits", 'true'="True DGP")
  ) +
  remove_legend_title() +
  labs(
    title=title_exp
  )

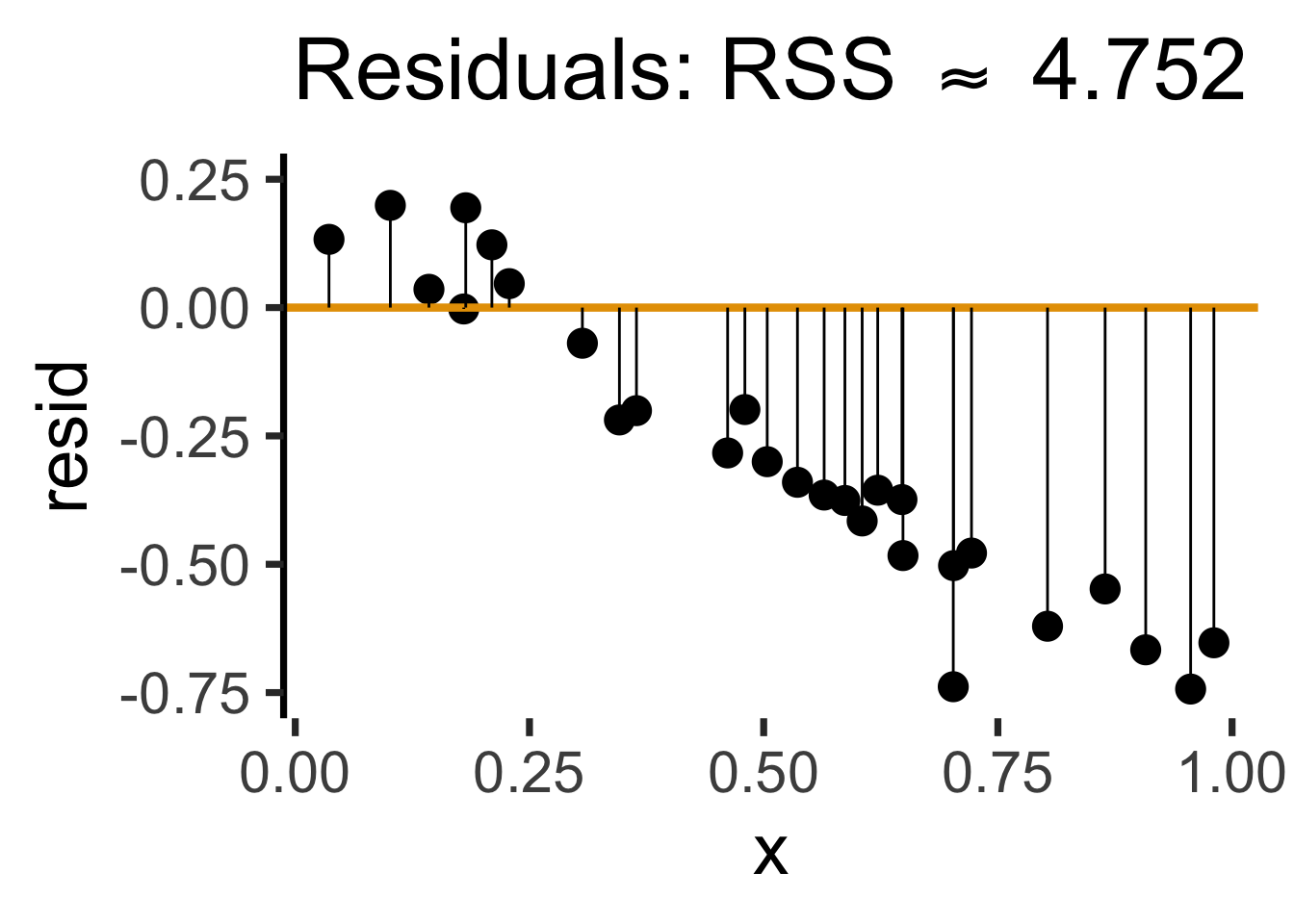

Evaluating with Residuals

Code
rc1_df <- possible_lines |> slice(n() - 14)
# Predictions for this choice
rc1_pred_df <- rand_df |> mutate(
  y_pred = rc1_df$slope * x,
  resid = y - y_pred
)

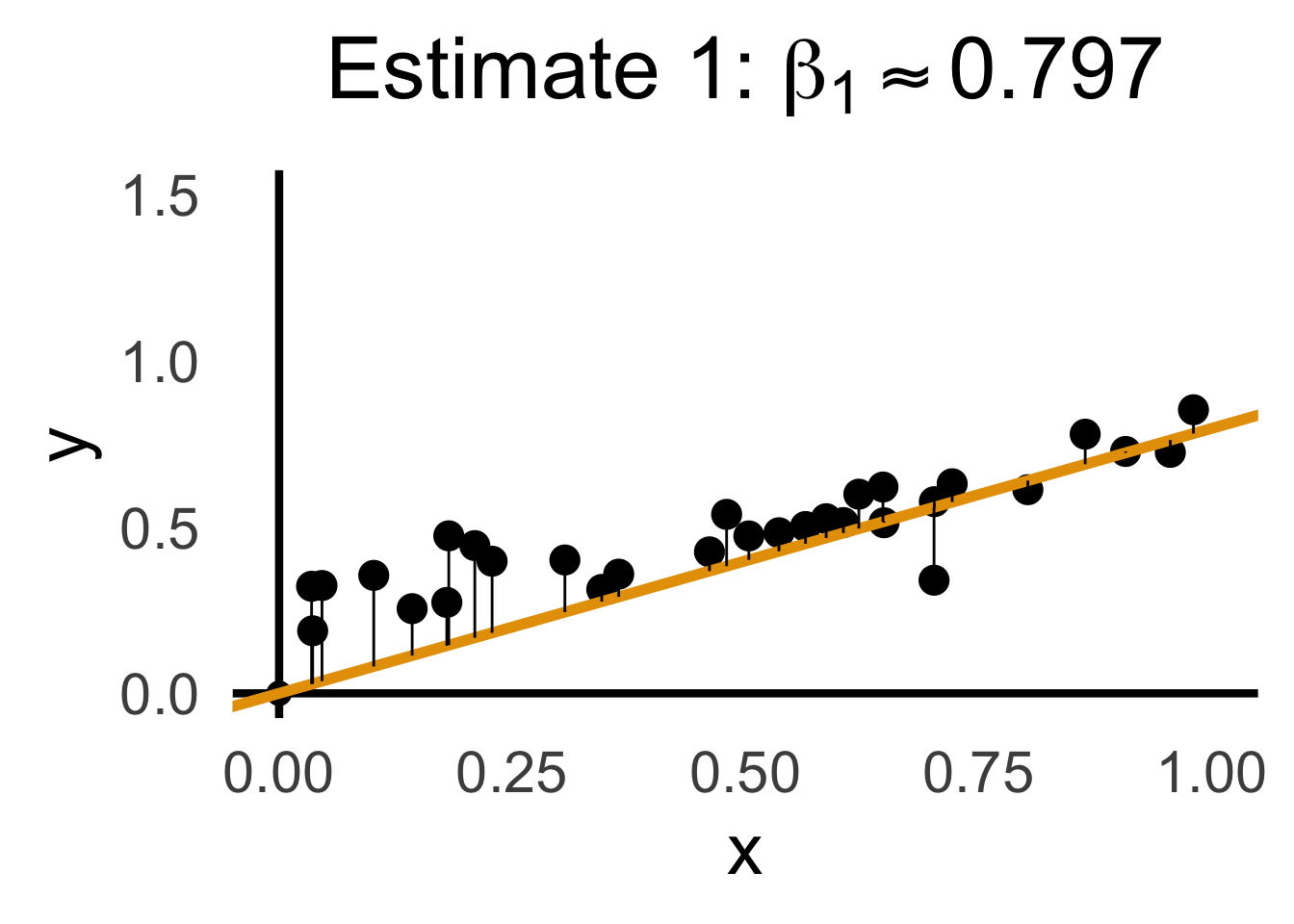

rc1_label <- TeX(paste0("Estimate 1: $\\beta_1 \\approx ",round(rc1_df$slope, 3),"$"))
rc1_lines_plot <- gen_lines_plot(point_size=5)
rc1_lines_plot +
  geom_abline(
    data=rc1_df,
    aes(intercept=intercept, slope=slope),
    linewidth=2,
    color=cb_palette[1]
  ) +
  geom_segment(
    data=rc1_pred_df,
    aes(x=x, y=y, xend=x, yend=y_pred),
    # color=cb_palette[1]
  ) +
  xlim(0, 1) + ylim(0, 1.5) +
  labs(
    title = rc1_label
  )

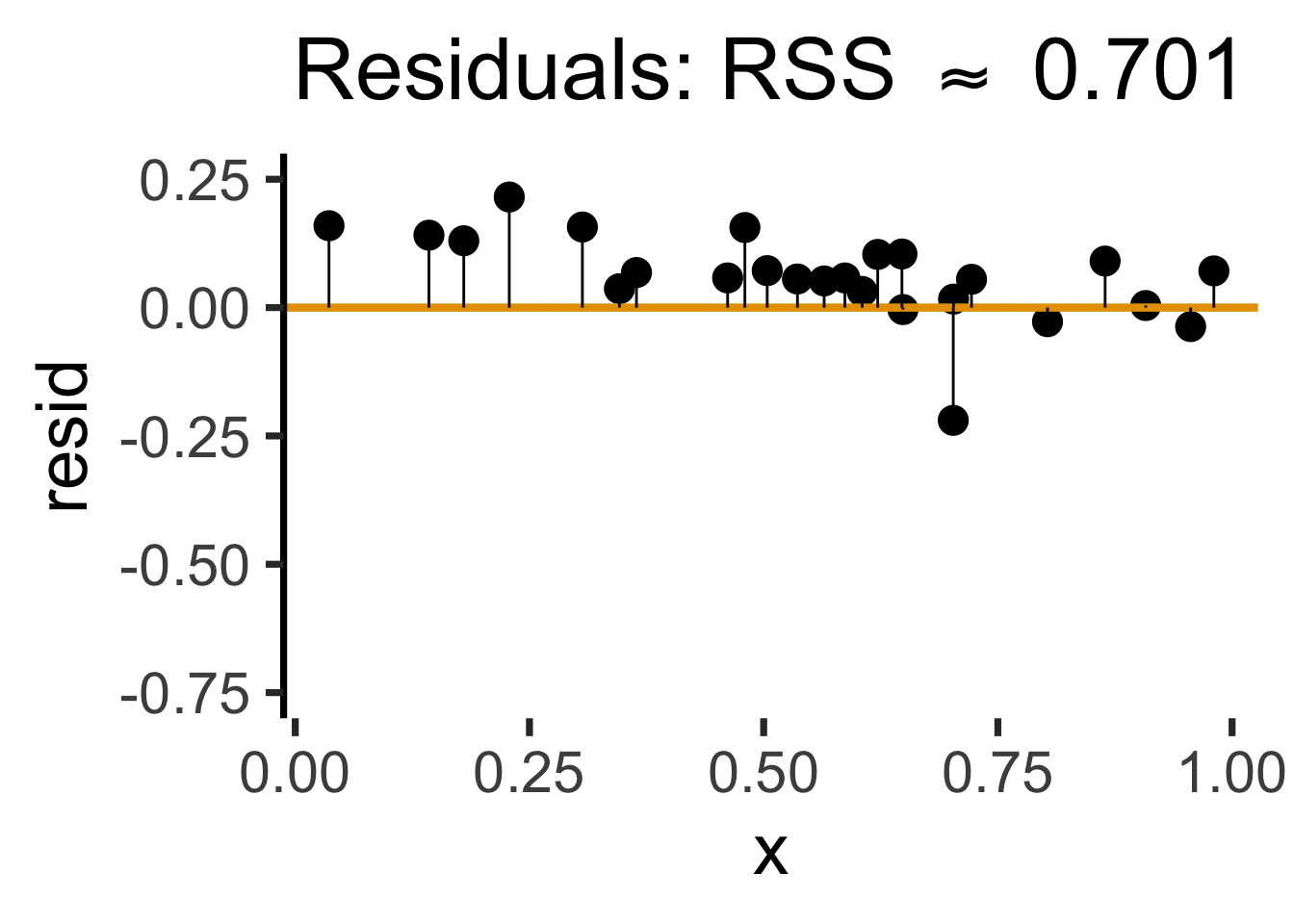

Code
gen_resid_plot <- function(pred_df) {
  rc_rss <- sum((pred_df$resid)^2)
  rc_resid_label <- TeX(paste0("Residuals: RSS $\\approx$ ",round(rc_rss,3)))
  rc_resid_plot <- pred_df |> ggplot(aes(x=x, y=resid)) +
    geom_point(size=5) +
    geom_hline(
      yintercept=0,
      color=cb_palette[1],
      linewidth=1.5
    ) +
    geom_segment(
      aes(xend=x, yend=0)
    ) +
    theme_dsan(base_size=28) +
    theme(axis.line.x = element_blank()) +
    ylim(-0.75, 0.25) +
    labs(
      title=rc_resid_label
    )
  return(rc_resid_plot)
}
rc1_resid_plot <- gen_resid_plot(rc1_pred_df)
rc1_resid_plot

Code
rc2_df <- possible_lines |> slice(n() - 9)
# Predictions for this choice
rc2_pred_df <- rand_df |> mutate(
  y_pred = rc2_df$slope * x,
  resid = y - y_pred
)

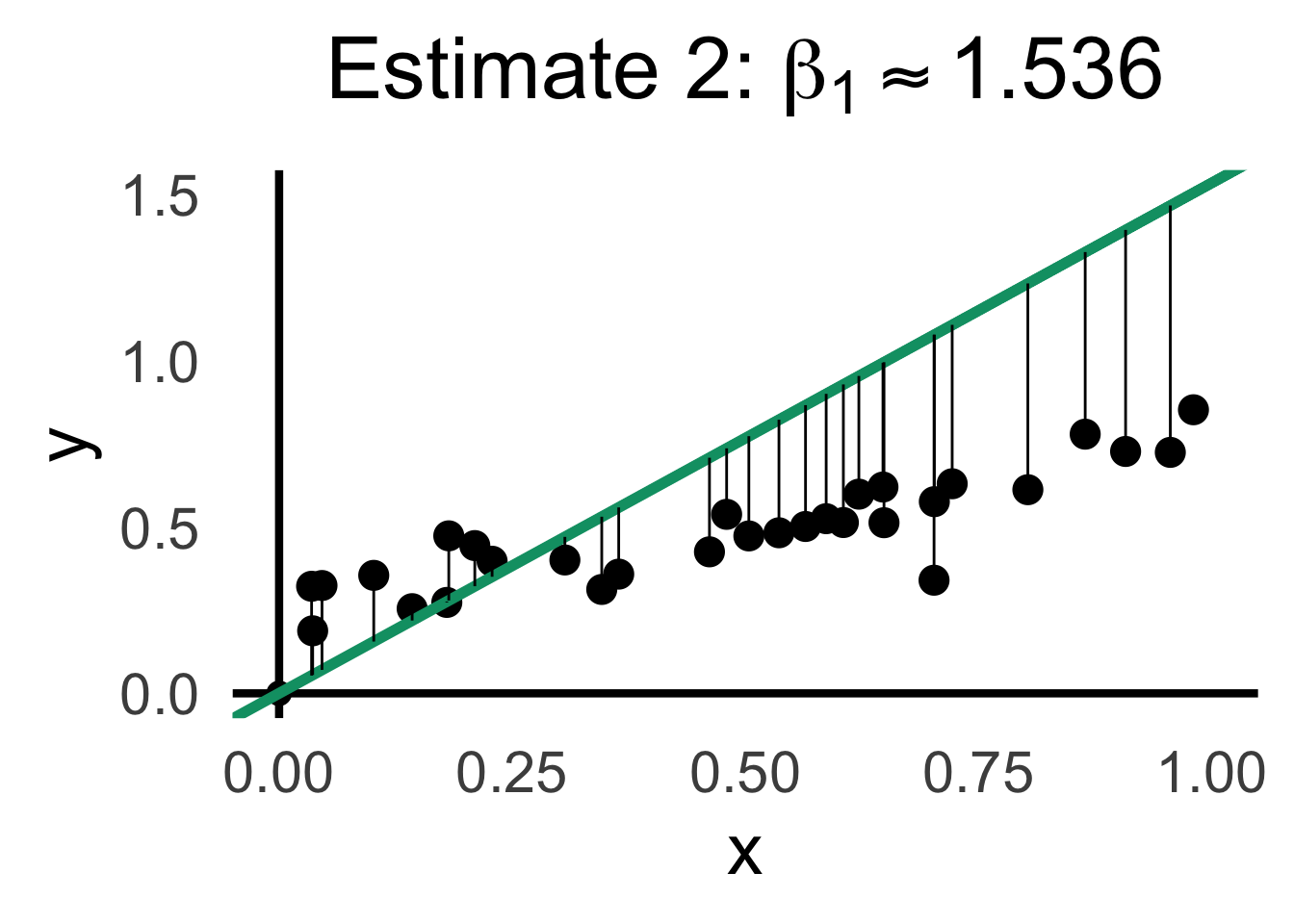

rc2_label <- TeX(paste0("Estimate 2: $\\beta_1 \\approx ",round(rc2_df$slope,3),"$"))
rc2_lines_plot <- gen_lines_plot(point_size=5)
rc2_lines_plot +
  geom_abline(
    data=rc2_df,
    aes(intercept=intercept, slope=slope),
    linewidth=2,
    color=cb_palette[3]
  ) +
  geom_segment(
    data=rc2_pred_df,
    aes(
      x=x, y=y, xend=x,
      # yend=ifelse(y_pred <= 1, y_pred, Inf)
      yend=y_pred
    )
    # color=cb_palette[1]
  ) +
  xlim(0, 1) + ylim(0, 1.5) +
  labs(
    title=rc2_label
  )

Code
rc2_resid_plot <- gen_resid_plot(rc2_pred_df)
rc2_resid_plot
Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_point()`).
Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_segment()`).

Now the Math

\[ \begin{align*} \beta_1^* = \overbrace{\argmin}^{\begin{array}{c} \text{\small{Find thing}} \\[-5mm] \text{\small{that minimizes}}\end{array}}_{\beta_1}\left[ \sum_{i=1}^{n}(y_i - \widehat{y}_i)^2 \right] = \argmin_{\beta_1}\left[ \sum_{i=1}^{n}(y_i - \beta_1x_i)^2 \right] \end{align*} \]

We can compute this derivative to obtain:

\[ \frac{\partial}{\partial\beta_1}\left[ \sum_{i=1}^{n}(\beta_1x_i - y_i)^2 \right] = \sum_{i=1}^{n}\frac{\partial}{\partial\beta_1}(\beta_1x_i - y_i)^2 = \sum_{i=1}^{n}2(\beta_1x_i - y_i)x_i \]

And our first-order condition means that:

\[ \sum_{i=1}^{n}2(\beta_1^*x_i - y_i)x_i = 0 \iff \beta_1^*\sum_{i=1}^{n}x_i^2 = \sum_{i=1}^{n}x_iy_i \iff \boxed{\beta_1^* = \frac{\sum_{i=1}^{n}x_iy_i}{\sum_{i=1}^{n}x_i^2}} \]

Doing Things With Regression

Regression: R vs. statsmodels

In (Base) R: lm()
Code
ad_df <- read_csv('assets/Advertising.csv')
New names:
Rows: 200 Columns: 5
── Column specification
──────────────────────────────────────────────────────── Delimiter: "," dbl
(5): ...1, TV, radio, newspaper, sales
ℹ Use `spec()` to retrieve the full column specification for this data. ℹ
Specify the column types or set `show_col_types = FALSE` to quiet this message.
• `` -> `...1`
Code
lin_model <- lm(sales ~ TV, data=ad_df)
summary(lin_model)

Call:
lm(formula = sales ~ TV, data = ad_df)

Residuals:
    Min      1Q  Median      3Q     Max
-8.3860 -1.9545 -0.1913  2.0671  7.2124

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) 7.032594   0.457843   15.36   <2e-16 ***
TV          0.047537   0.002691   17.67   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 3.259 on 198 degrees of freedom
Multiple R-squared:  0.6119,    Adjusted R-squared:  0.6099
F-statistic: 312.1 on 1 and 198 DF,  p-value: < 2.2e-16

General syntax:

lm(
  dependent ~ independent + controls,
  data = my_df
)
In Python: smf.ols()
Code
import statsmodels.formula.api as smf
results = smf.ols("sales ~ TV", data=ad_df).fit()
print(results.summary(slim=True))
                            OLS Regression Results
==============================================================================
Dep. Variable:                  sales   R-squared:                       0.612
Model:                            OLS   Adj. R-squared:                  0.610
No. Observations:                 200   F-statistic:                     312.1
Covariance Type:            nonrobust   Prob (F-statistic):           1.47e-42
==============================================================================
                 coef    std err          t      P>|t|      [0.025      0.975]
------------------------------------------------------------------------------
Intercept      7.0326      0.458     15.360      0.000       6.130       7.935
TV             0.0475      0.003     17.668      0.000       0.042       0.053
==============================================================================

Notes:
[1] Standard Errors assume that the covariance matrix of the errors is correctly specified.

General syntax:

smf.ols(
  "dependent ~ independent + controls",
  data = my_df
)

Interpreting Output

Code
library(tidyverse)
gdp_df <- read_csv("assets/gdp_pca.csv")
mil_plot <- gdp_df |> ggplot(aes(x=industrial, y=military)) +
  geom_point(size=0.5*g_pointsize) +
  geom_smooth(method='lm', formula="y ~ x", linewidth=1) +
  theme_dsan() +
  labs(
    title="Military Exports vs. Industrialization",
    x="Industrial Production (% of GDP)",
    y="Military Exports (% of All Exports)"
  )
Code
mil_plot + theme_dsan("quarter")

Code
gdp_model <- lm(military ~ industrial, data=gdp_df)
summary(gdp_model)

Call:
lm(formula = military ~ industrial, data = gdp_df)

Residuals:
    Min      1Q  Median      3Q     Max
-2.3354 -1.0997 -0.3870  0.6081  6.7508

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  0.61969    0.59526   1.041   0.3010
industrial   0.05253    0.02019   2.602   0.0111 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.671 on 79 degrees of freedom
  (8 observations deleted due to missingness)
Multiple R-squared:  0.07895,   Adjusted R-squared:  0.06729
F-statistic: 6.771 on 1 and 79 DF,  p-value: 0.01106

Zooming In: Coefficients

Estimate Std. Error t value Pr(>|t|)
(Intercept) 0.61969 0.59526 1.041 0.3010
industrial 0.05253 0.02019 2.602 0.0111 *
\(\widehat{\beta}\) Uncertainty Test stat \(t\) How extreme is \(t\)? Signif. Level

\[ \widehat{y} \approx \class{cb1}{\overset{\beta_0}{\underset{\small \pm 0.595}{0.620}}} + \class{cb2}{\overset{\beta_1}{\underset{\small \pm 0.020}{0.053}}} \cdot x \]

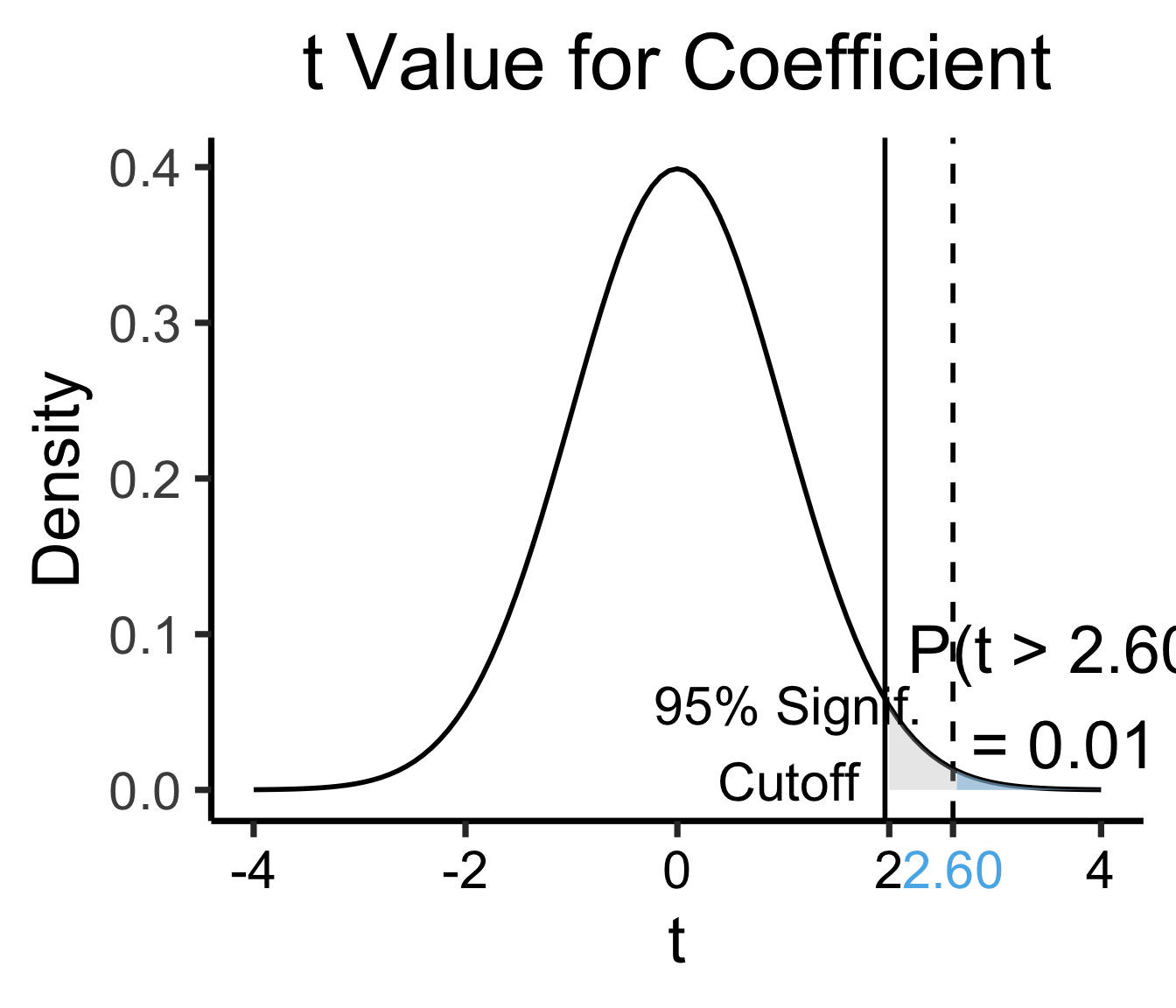

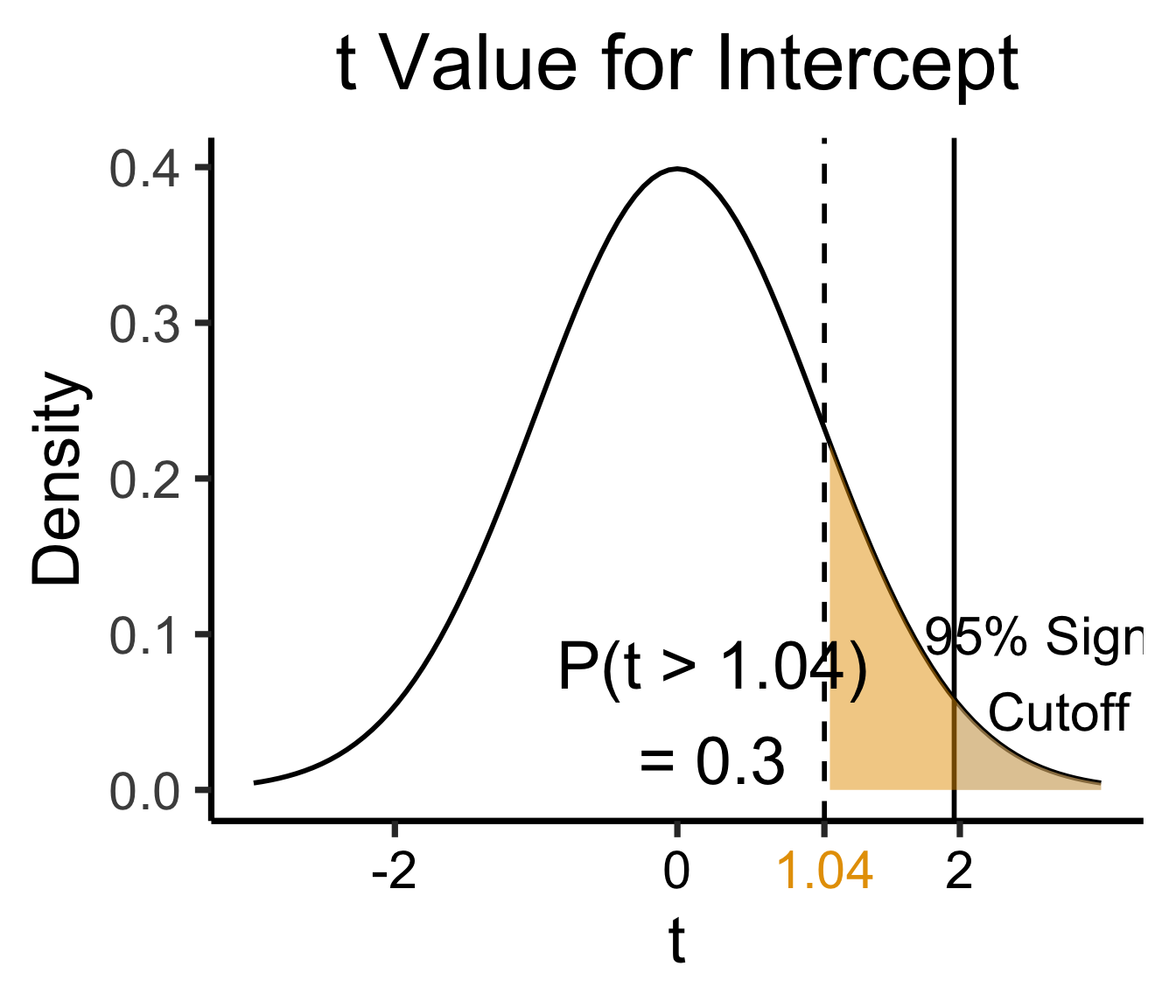

Zooming In: Significance

Estimate Std. Error t value Pr(>|t|)
(Intercept) 0.61969 0.59526 1.041 0.3010
industrial 0.05253 0.02019 2.602 0.0111 *
\(\widehat{\beta}\) Uncertainty Test stat \(t\) How extreme is \(t\)? Signif. Level
Code
library(ggplot2)
int_tstat <- 1.041
int_tstat_str <- sprintf("%.02f", int_tstat)
label_df_int <- tribble(
    ~x, ~y, ~label,
    0.25, 0.05, paste0("P(t > ",int_tstat_str,")\n= 0.3")
)
label_df_signif_int <- tribble(
    ~x, ~y, ~label,
    2.7, 0.075, "95% Signif.\nCutoff"
)
funcShaded <- function(x, lower_bound, upper_bound){
    y <- dnorm(x)
    y[x < lower_bound | x > upper_bound] <- NA
    return(y)
}
funcShadedIntercept <- function(x) funcShaded(x, int_tstat, Inf)
funcShadedSignif <- function(x) funcShaded(x, 1.96, Inf)
ggplot(data=data.frame(x=c(-3,3)), aes(x=x)) +
  stat_function(fun=dnorm, linewidth=g_linewidth) +
  geom_vline(aes(xintercept=int_tstat), linewidth=g_linewidth, linetype="dashed") +
  geom_vline(aes(xintercept = 1.96), linewidth=g_linewidth, linetype="solid") +
  stat_function(fun = funcShadedIntercept, geom = "area", fill = cbPalette[1], alpha = 0.5) +
  stat_function(fun = funcShadedSignif, geom = "area", fill = "grey", alpha = 0.333) +
  geom_text(label_df_int, mapping = aes(x = x, y = y, label = label), size = 10) +
  geom_text(label_df_signif_int, mapping = aes(x = x, y = y, label = label), size = 8) +
  # Add single additional tick
  scale_x_continuous(breaks=c(-2, 0, int_tstat, 2), labels=c("-2","0",int_tstat_str,"2")) +
  dsan_theme("quarter") +
  labs(
    title = "t Value for Intercept",
    x = "t",
    y = "Density"
  ) +
  theme(axis.text.x = element_text(colour = c("black", "black", cbPalette[1], "black")))

Code
library(ggplot2)
coef_tstat <- 2.602
coef_tstat_str <- sprintf("%.02f", coef_tstat)
label_df_coef <- tribble(
    ~x, ~y, ~label,
    3.65, 0.06, paste0("P(t > ",coef_tstat_str,")\n= 0.01")
)
label_df_signif_coef <- tribble(
  ~x, ~y, ~label,
  1.05, 0.03, "95% Signif.\nCutoff"
)
funcShadedCoef <- function(x) funcShaded(x, coef_tstat, Inf)
ggplot(data=data.frame(x=c(-4,4)), aes(x=x)) +
  stat_function(fun=dnorm, linewidth=g_linewidth) +
  geom_vline(aes(xintercept=coef_tstat), linetype="dashed", linewidth=g_linewidth) +
  geom_vline(aes(xintercept=1.96), linetype="solid", linewidth=g_linewidth) +
  stat_function(fun = funcShadedCoef, geom = "area", fill = cbPalette[2], alpha = 0.5) +
  stat_function(fun = funcShadedSignif, geom = "area", fill = "grey", alpha = 0.333) +
  # Label shaded area
  geom_text(label_df_coef, mapping = aes(x = x, y = y, label = label), size = 10) +
  # Label significance cutoff
  geom_text(label_df_signif_coef, mapping = aes(x = x, y = y, label = label), size = 8) +
  coord_cartesian(clip = "off") +
  # Add single additional tick
  scale_x_continuous(breaks=c(-4, -2, 0, 2, coef_tstat, 4), labels=c("-4", "-2","0", "2", coef_tstat_str,"4")) +
  dsan_theme("quarter") +
  labs(
    title = "t Value for Coefficient",
    x = "t",
    y = "Density"
  ) +
  theme(axis.text.x = element_text(colour = c("black", "black", "black", "black", cbPalette[2], "black")))

The Residual Plot

Recall homoskedasticity assumption: Given our model

\[ y_i = \beta_0 + \beta_1x_i + \varepsilon_i \]

the errors \(\varepsilon_i\) should not vary systematically with \(i\)

Formally: \(\forall i \left[ \Var{\varepsilon_i} = \sigma^2 \right]\)

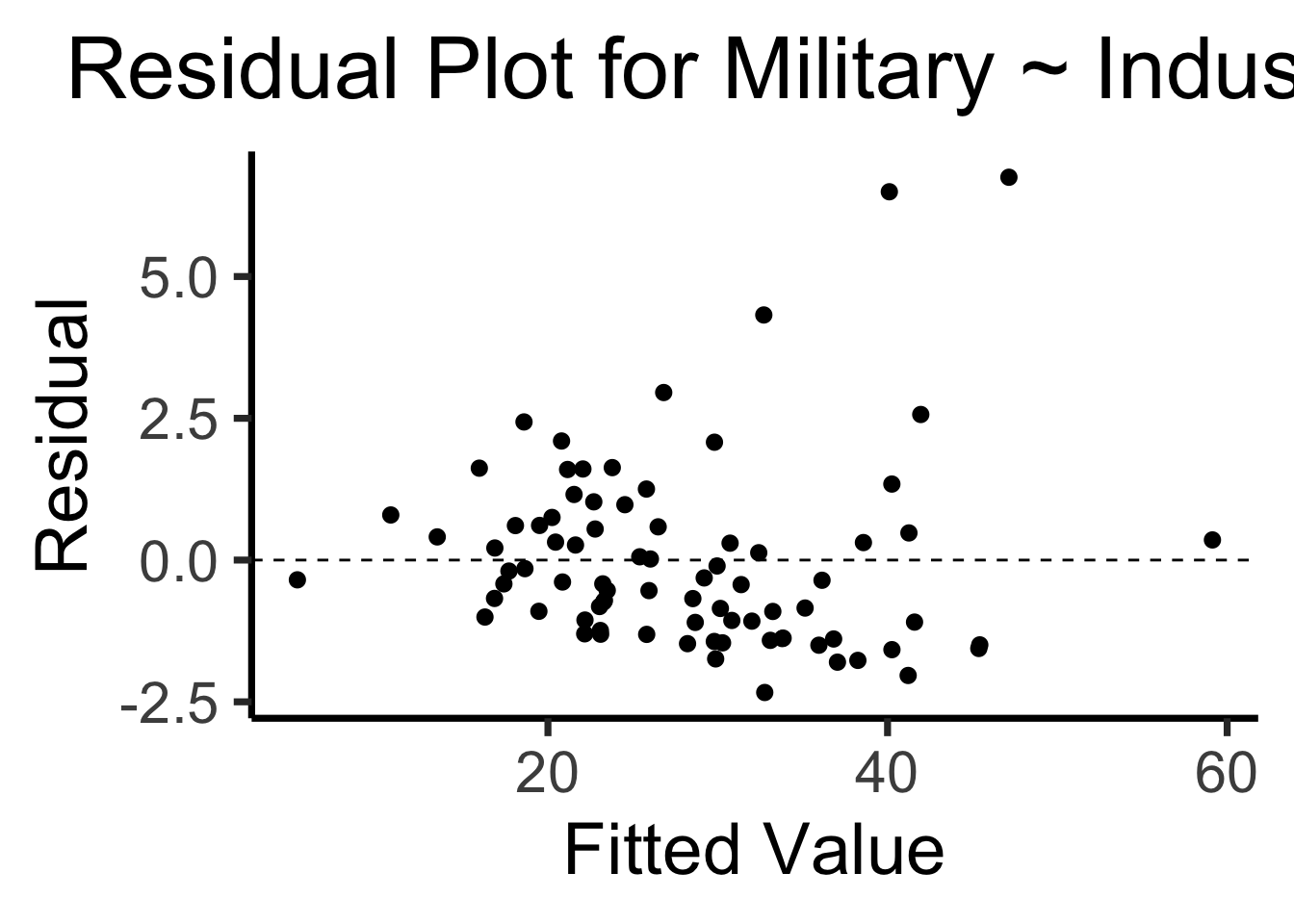

Code
library(broom)
gdp_resid_df <- augment(gdp_model)
ggplot(gdp_resid_df, aes(x = industrial, y = .resid)) +
    geom_point(size = g_pointsize/2) +
    geom_hline(yintercept=0, linetype="dashed") +
    dsan_theme("quarter") +
    labs(
      title = "Residual Plot for Military ~ Industrial",
      x = "Fitted Value",
      y = "Residual"
    )

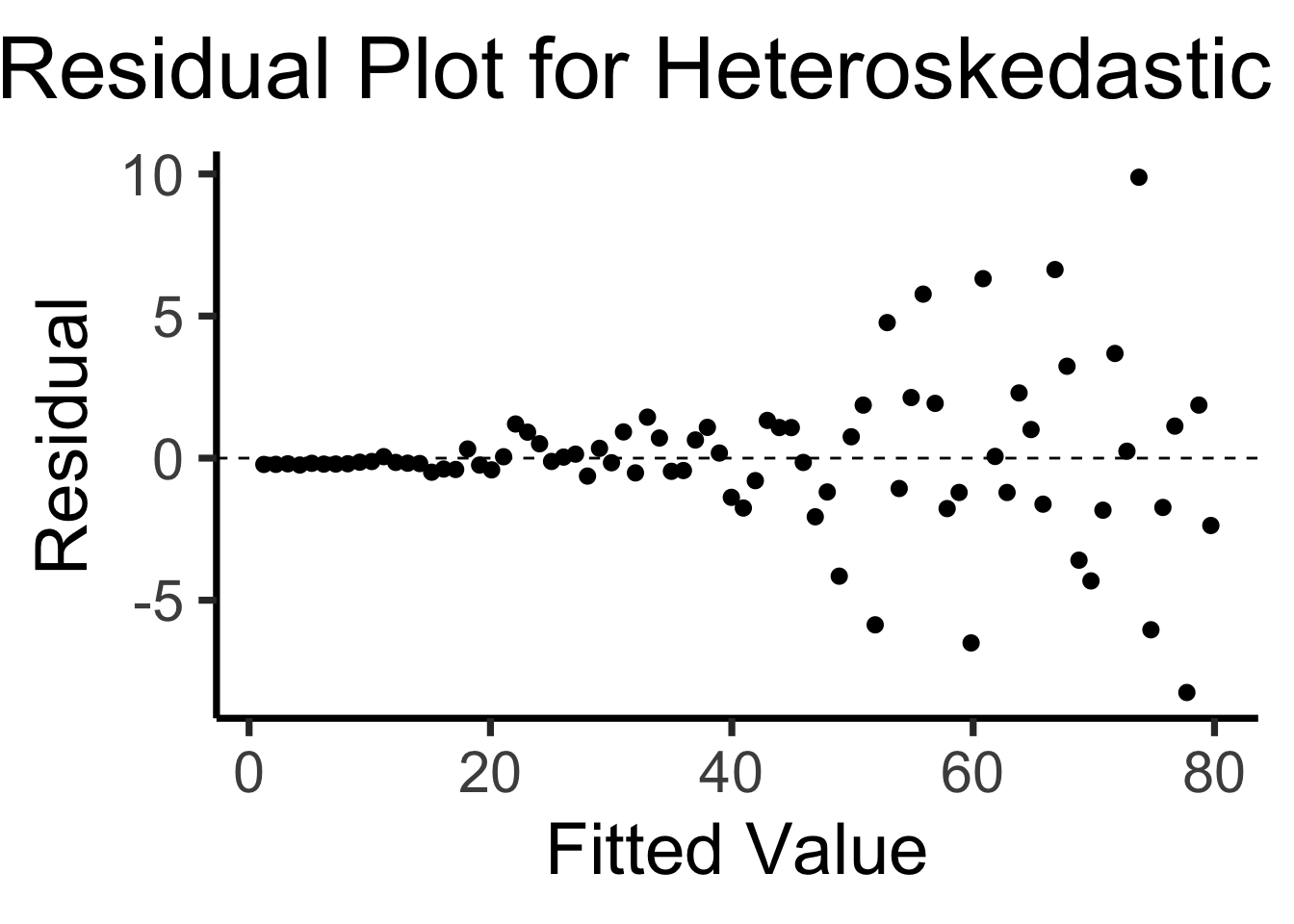

Code
x <- 1:80
errors <- rnorm(length(x), 0, x^2/1000)
y <- x + errors
het_model <- lm(y ~ x)
df_het <- augment(het_model)
ggplot(df_het, aes(x = .fitted, y = .resid)) +
    geom_point(size = g_pointsize / 2) +
    geom_hline(yintercept = 0, linetype = "dashed") +
    dsan_theme("quarter") +
    labs(
        title = "Residual Plot for Heteroskedastic Data",
        x = "Fitted Value",
        y = "Residual"
    )

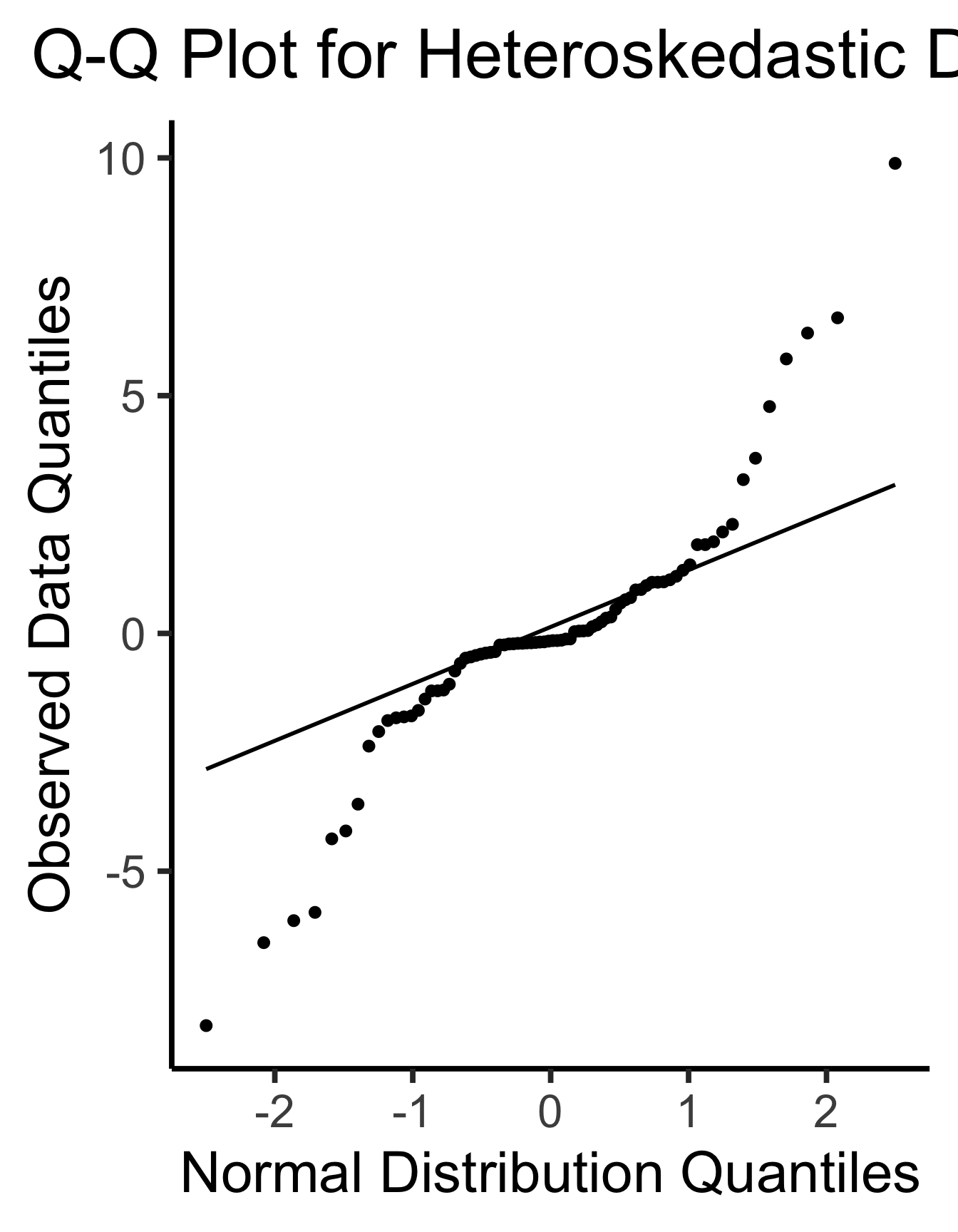

Q-Q Plot

  • If \((\widehat{y} - y) \sim \mathcal{N}(0, \sigma^2)\), points would lie on 45° line:
Code
ggplot(df_het, aes(sample=.resid)) +
  stat_qq(size = g_pointsize/2) + stat_qq_line(linewidth = g_linewidth) +
  dsan_theme(base_size=30) +
  labs(
    title = "Q-Q Plot for Heteroskedastic Data",
    x = "Normal Distribution Quantiles",
    y = "Observed Data Quantiles"
  )

Code

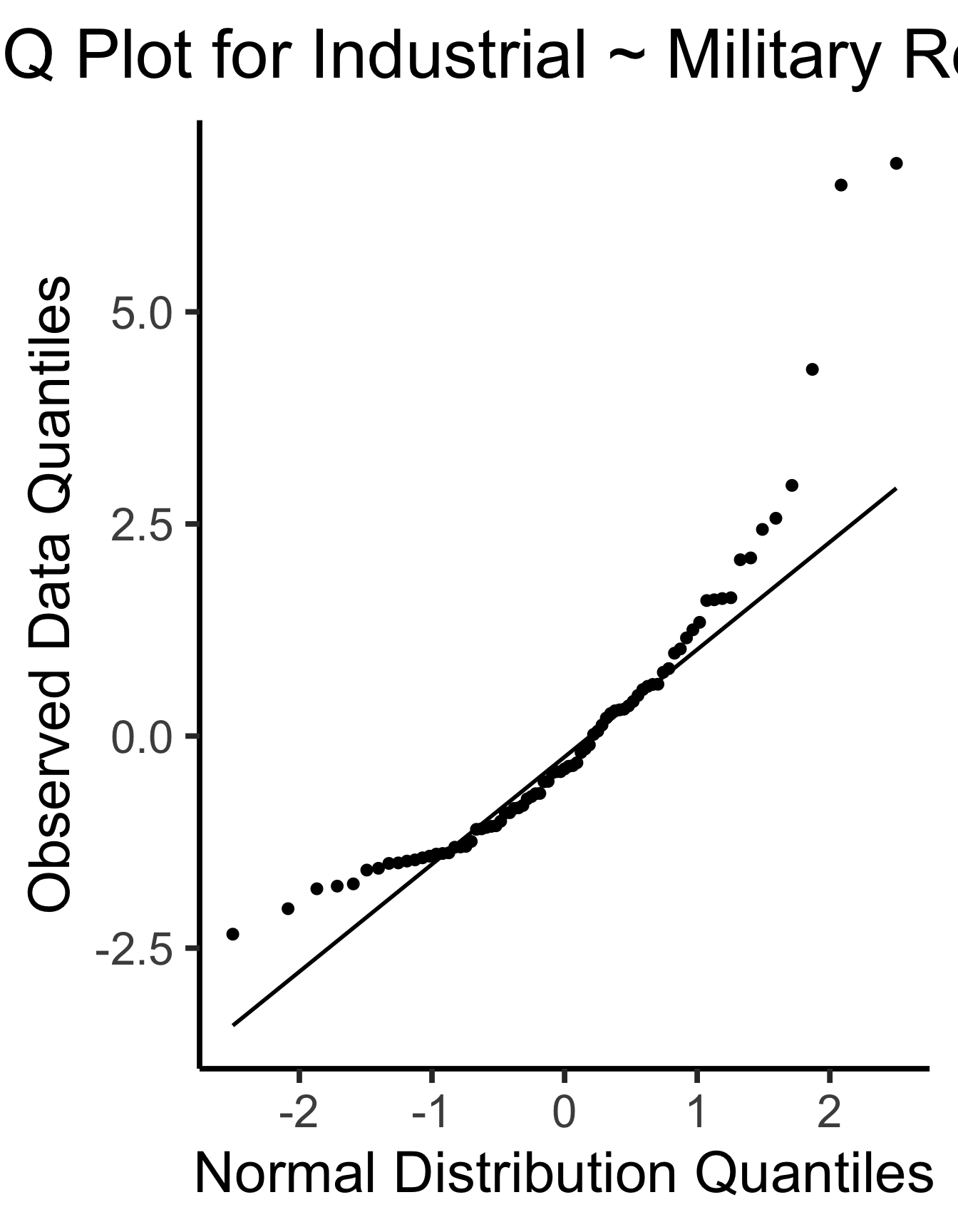

ggplot(gdp_resid_df, aes(sample=.resid)) +
  stat_qq(size = g_pointsize/2) + stat_qq_line(linewidth = g_linewidth) +
  dsan_theme(base_size=30) +
  labs(
    title = "Q-Q Plot for Industrial ~ Military Residuals",
    x = "Normal Distribution Quantiles",
    y = "Observed Data Quantiles"
  )

Multiple Linear Regression (MLR)

Multiple Linear Regression (MLR) Model

  • Notation: \(x_{i,j}\) = value of independent variable \(j\) for person/observation \(i\)
  • \(M\) = total number of independent variables

\[ \widehat{y}_i = \beta_0 + \beta_1x_{i,1} + \beta_2x_{i,2} + \cdots + \beta_M x_{i,M} \]

  • \(\beta_j\) interpretation: a one-unit increase in \(x_{i,j}\) is associated with a \(\beta_j\) unit increase in \(y_i\), holding all other independent variables constant

“Holding” Things “Constant”?

  • One of the more confusing ideas in all of statistics…
  • “Controlling for” some types of variables (forks, pipes) removes spurious correlation, but “controlling for” other types (colliders) introduces more spurious correlation
  • Opinionated “what you should really do”: center independent variables
  • \(Y = \beta_0 + \beta_1 (X - \mu)\) \(\Rightarrow\) “When other variables are at their mean values, 1 unit increase in \(X_i\) associated with \(\beta_i\) unit increase in \(y\)”
Code
library(extraDistr)
set.seed(5650)
n_c <- 300
cfork_df <- tibble(
    Z = rbern(n_c),
    X = rnorm(n_c, 2 * Z - 1),
    Y = rnorm(n_c, 2 * Z - 1)
)
library(latex2exp)
overall_lm <- lm(Y ~ X, data=cfork_df)
overall_slope <- round(overall_lm$coef['X'], 3)
z0_lm <- lm(Y ~ X, data=cfork_df |> filter(Z == 0))
z0_slope <- round(z0_lm$coef['X'], 2)
z0_label <- paste0("$Slope_{Z=0} = ",z0_slope,"$")
z0_leg_label <- TeX(paste0("0 $(m=",z0_slope,")$"))
z1_lm <- lm(Y ~ X, data=cfork_df |> filter(Z == 1))
z1_slope <- round(z1_lm$coef['X'], 2)
z1_label <- paste0("$Slope_{Z=1} = ",z1_slope,"$")
z_texlabel <- TeX(paste0(z0_label, " | ", z1_label))
cfork_xmin <- min(cfork_df$X)
cfork_xmax <- max(cfork_df$X)

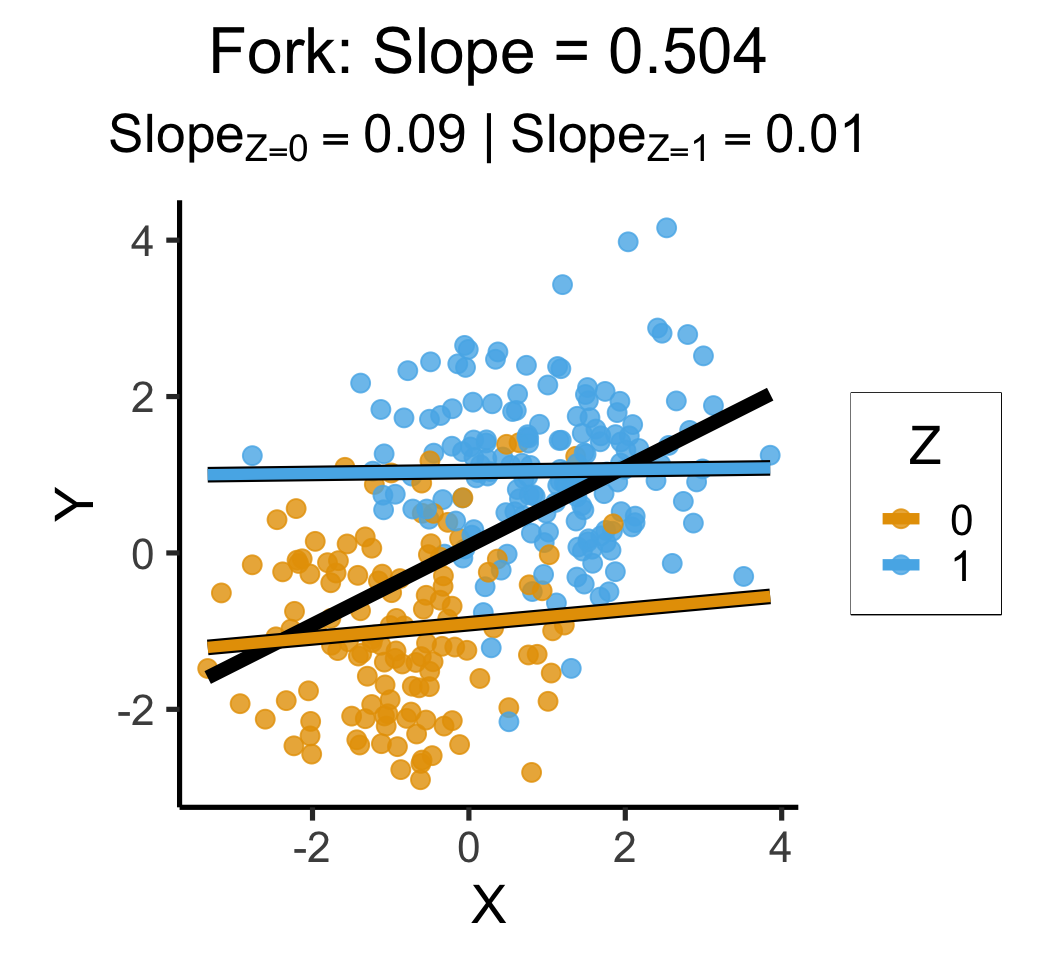

ggplot() +
  # Points
  geom_point(
    data=cfork_df,
    aes(x=X, y=Y, color=factor(Z)),
    size=0.6*g_pointsize,
    alpha=0.8
  ) +
  # Overall lm
  geom_smooth(
    data=cfork_df, aes(x=X, y=Y),
    method = lm, se = FALSE,
    linewidth = 2.5, color='black'
  ) +
  # Stratified lm
  # (slightly larger black lines)
  geom_smooth(
    data=cfork_df,
    aes(x=X, y=Y, group=factor(Z)),
    method=lm, se=FALSE, fullrange=TRUE,
    linewidth=2.75, color='black'
  ) +
  # (Colored lines)
  geom_smooth(
    data=cfork_df,
    aes(x=X, y=Y, color=factor(Z)),
    method=lm, se=FALSE, fullrange=TRUE,
    linewidth=2
  ) +
  theme_dsan(base_size=20) +
  theme(
    plot.title = element_text(size=24),
    plot.subtitle = element_text(size=20)
  ) +
  coord_equal() +
  labs(
    title = paste0(
      "Fork: Slope = ",overall_slope
    ),
    subtitle=z_texlabel,
    x = "X", y = "Y", color = "Z"
  )
set.seed(5650)

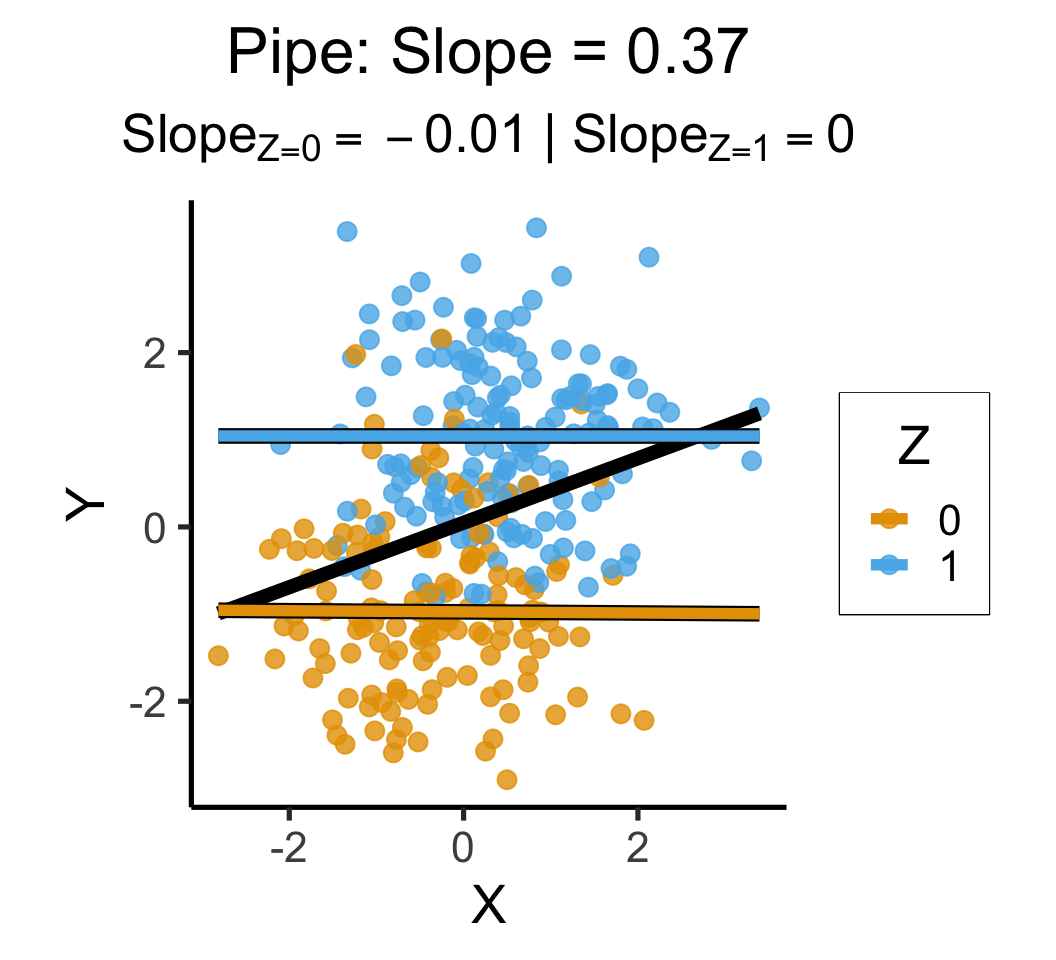

cpipe_df <- tibble(
    X = rnorm(n_c),
    Z = rbern(n_c, plogis(X)),
    Y = rnorm(n_c, 2 * Z - 1)
)
cpipe_lm <- lm(Y ~ X, data=cpipe_df)
cpipe_slope <- round(cpipe_lm$coef['X'], 3)
cpipe_z0_lm <- lm(Y ~ X, data=cpipe_df |> filter(Z == 0))
cpipe_z0_slope <- round(cpipe_z0_lm$coef['X'], 2)
cpipe_z0_label <- paste0("$Slope_{Z=0} = ",cpipe_z0_slope,"$")
cpipe_z1_lm <- lm(Y ~ X, data=cpipe_df |> filter(Z == 1))
cpipe_z1_slope <- round(cpipe_z1_lm$coef['X'], 2)
cpipe_z1_label <- paste0("$Slope_{Z=1} = ",cpipe_z1_slope,"$")
cpipe_z_texlabel <- TeX(paste0(cpipe_z0_label, " | ", cpipe_z1_label))
cpipe_xmin <- min(cpipe_df$X)
cpipe_xmax <- max(cpipe_df$X)
ggplot() +
  # Points
  geom_point(
    data=cpipe_df |> filter(Y > -3),
    aes(x=X, y=Y, color=factor(Z)),
    size=0.6*g_pointsize,
    alpha=0.8
  ) +
  # Overall lm
  geom_smooth(
    data=cpipe_df, aes(x=X, y=Y),
    method = lm, se = FALSE,
    linewidth = 2.5, color='black'
  ) +
  # Stratified lm
  # (slightly larger black lines)
  geom_smooth(
    data=cpipe_df,
    aes(x=X, y=Y, group=factor(Z)),
    method=lm, se=FALSE, fullrange=TRUE,
    linewidth=2.75, color='black'
  ) +
  # (Colored lines)
  geom_smooth(
    data=cpipe_df,
    aes(x=X, y=Y, color=factor(Z)),
    method=lm, se=FALSE, fullrange=TRUE,
    linewidth=2
  ) +
  theme_dsan(base_size=20) +
  theme(
    plot.title = element_text(size=24),
    plot.subtitle = element_text(size=20)
  ) +
  coord_equal() +
  labs(
    title = paste0(
      "Pipe: Slope = ",cpipe_slope
    ),
    subtitle=cpipe_z_texlabel,
    x = "X", y = "Y", color = "Z"
  )
set.seed(5650)

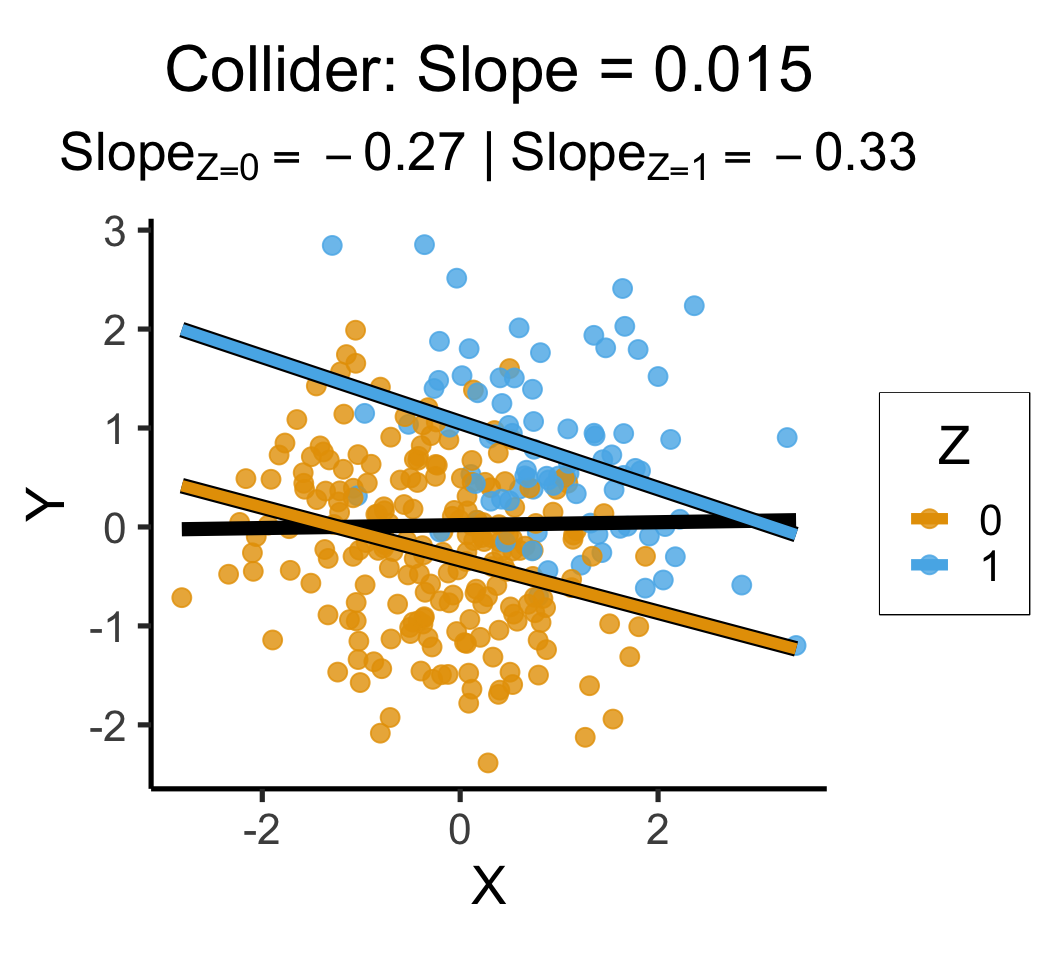

ccoll_df <- tibble(
    X = rnorm(n_c),
    Y = rnorm(n_c),
    Z = rbern(n_c, plogis(2 * (X + Y - 1)))
)
ccoll_lm <- lm(Y ~ X, data=ccoll_df)
ccoll_slope <- round(ccoll_lm$coef['X'], 3)
ccoll_z0_lm <- lm(Y ~ X, data=ccoll_df |> filter(Z == 0))
ccoll_z0_slope <- round(ccoll_z0_lm$coef['X'], 2)
ccoll_z0_label <- paste0("$Slope_{Z=0} = ",ccoll_z0_slope,"$")
ccoll_z1_lm <- lm(Y ~ X, data=ccoll_df |> filter(Z == 1))
ccoll_z1_slope <- round(ccoll_z1_lm$coef['X'], 2)
ccoll_z1_label <- paste0("$Slope_{Z=1} = ",ccoll_z1_slope,"$")
ccoll_z_texlabel <- TeX(paste0(ccoll_z0_label, " | ", ccoll_z1_label))
ccoll_xmin <- min(ccoll_df$X)
ccoll_xmax <- max(ccoll_df$X)
ggplot() +
  # Points
  geom_point(
    data=ccoll_df |> filter(Y > -3),
    aes(x=X, y=Y, color=factor(Z)),
    size=0.6*g_pointsize,
    alpha=0.8
  ) +
  # Overall lm
  geom_smooth(
    data=ccoll_df, aes(x=X, y=Y),
    method = lm, se = FALSE,
    linewidth = 2.5, color='black'
  ) +
  # Stratified lm
  # (slightly larger black lines)
  geom_smooth(
    data=ccoll_df,
    aes(x=X, y=Y, group=factor(Z)),
    method=lm, se=FALSE, fullrange=TRUE,
    linewidth=2.75, color='black'
  ) +
  # (Colored lines)
  geom_smooth(
    data=ccoll_df,
    aes(x=X, y=Y, color=factor(Z)),
    method=lm, se=FALSE, fullrange=TRUE,
    linewidth=2
  ) +
  theme_dsan(base_size=20) +
  theme(
    plot.title = element_text(size=24),
    plot.subtitle = element_text(size=20)
  ) +
  coord_equal() +
  labs(
    title = paste0(
      "Collider: Slope = ",ccoll_slope
    ),
    subtitle=ccoll_z_texlabel,
    x = "X", y = "Y", color = "Z"
  )

Attaching package: 'extraDistr'
The following object is masked from 'package:purrr':

    rdunif
`geom_smooth()` using formula = 'y ~ x'
`geom_smooth()` using formula = 'y ~ x'
`geom_smooth()` using formula = 'y ~ x'

`geom_smooth()` using formula = 'y ~ x'
`geom_smooth()` using formula = 'y ~ x'
`geom_smooth()` using formula = 'y ~ x'

`geom_smooth()` using formula = 'y ~ x'
`geom_smooth()` using formula = 'y ~ x'
`geom_smooth()` using formula = 'y ~ x'

Visualizing MLR

(ISLR, Fig 3.5): A pronounced non-linear relationship. Positive residuals (visible above the surface) tend to lie along the 45-degree line, where budgets are split evenly. Negative residuals (most not visible) tend to be away from this line, where budgets are more lopsided.

Interpreting MLR

Code
mlr_model = smf.ols(
  formula="sales ~ TV + radio + newspaper",
  data=ad_df
)
mlr_result = mlr_model.fit()
print(mlr_result.summary().tables[1])
==============================================================================
                 coef    std err          t      P>|t|      [0.025      0.975]
------------------------------------------------------------------------------
Intercept      2.9389      0.312      9.422      0.000       2.324       3.554
TV             0.0458      0.001     32.809      0.000       0.043       0.049
radio          0.1885      0.009     21.893      0.000       0.172       0.206
newspaper     -0.0010      0.006     -0.177      0.860      -0.013       0.011
==============================================================================
  • Holding radio and newspaper spending constant…
    • An increase of $1K in spending on TV advertising is associated with
    • An increase in sales of about 46 units
  • Holding TV and newspaper spending constant…
    • An increase of $1K in spending on radio advertising is associated with
    • An increase in sales of about 189 units

But Wait…

Code
# print(mlr_result.summary2(float_format='%.3f'))
print(mlr_result.summary2())
                 Results: Ordinary least squares
=================================================================
Model:              OLS              Adj. R-squared:     0.896
Dependent Variable: sales            AIC:                780.3622
Date:               2026-02-17 18:26 BIC:                793.5555
No. Observations:   200              Log-Likelihood:     -386.18
Df Model:           3                F-statistic:        570.3
Df Residuals:       196              Prob (F-statistic): 1.58e-96
R-squared:          0.897            Scale:              2.8409
------------------------------------------------------------------
                Coef.   Std.Err.     t     P>|t|    [0.025  0.975]
------------------------------------------------------------------
Intercept       2.9389    0.3119   9.4223  0.0000   2.3238  3.5540
TV              0.0458    0.0014  32.8086  0.0000   0.0430  0.0485
radio           0.1885    0.0086  21.8935  0.0000   0.1715  0.2055
newspaper      -0.0010    0.0059  -0.1767  0.8599  -0.0126  0.0105
-----------------------------------------------------------------
Omnibus:             60.414       Durbin-Watson:          2.084
Prob(Omnibus):       0.000        Jarque-Bera (JB):       151.241
Skew:                -1.327       Prob(JB):               0.000
Kurtosis:            6.332        Condition No.:          454
=================================================================
Notes:
[1] Standard Errors assume that the covariance matrix of the
errors is correctly specified.
Code
slr_model = smf.ols(
  formula="sales ~ newspaper",
  data=ad_df
)
slr_result = slr_model.fit()
print(slr_result.summary2())
                 Results: Ordinary least squares
==================================================================
Model:              OLS              Adj. R-squared:     0.047
Dependent Variable: sales            AIC:                1220.6714
Date:               2026-02-17 18:26 BIC:                1227.2680
No. Observations:   200              Log-Likelihood:     -608.34
Df Model:           1                F-statistic:        10.89
Df Residuals:       198              Prob (F-statistic): 0.00115
R-squared:          0.052            Scale:              25.933
-------------------------------------------------------------------
                Coef.   Std.Err.     t     P>|t|    [0.025   0.975]
-------------------------------------------------------------------
Intercept      12.3514    0.6214  19.8761  0.0000  11.1260  13.5769
newspaper       0.0547    0.0166   3.2996  0.0011   0.0220   0.0874
------------------------------------------------------------------
Omnibus:               6.231        Durbin-Watson:           1.983
Prob(Omnibus):         0.044        Jarque-Bera (JB):        5.483
Skew:                  0.330        Prob(JB):                0.064
Kurtosis:              2.527        Condition No.:           65
==================================================================
Notes:
[1] Standard Errors assume that the covariance matrix of the
errors is correctly specified.
  • MLR results can be drastically different from SLR results, because of correlations (next slide)
  • This is a good thing! It’s how we’re able to control for confounding variables!

Correlations Among Features

Code
ad_df.drop(columns="id").corr()
                 TV     radio  newspaper     sales
TV         1.000000  0.054809   0.056648  0.782224
radio      0.054809  1.000000   0.354104  0.576223
newspaper  0.056648  0.354104   1.000000  0.228299
sales      0.782224  0.576223   0.228299  1.000000
  • Note how \(\text{cor}(\texttt{radio}, \texttt{newspaper}) \approx 0.35\)
  • In markets where we spend more on radio our sales will tend to be higher…
  • Corr matrix \(\implies\) we spend more on newspaper in those same markets…
  • In SLR which only examines sales vs. newspaper, we (correctly!) observe that higher values of newspaper are associated with higher values of sales…
  • In essence, newspaper advertising is a surrogate for radio advertising \(\implies\) in our SLR, newspaper “gets credit” for the association between radio and sales

MLR Superpower: Handling Categorical Vars

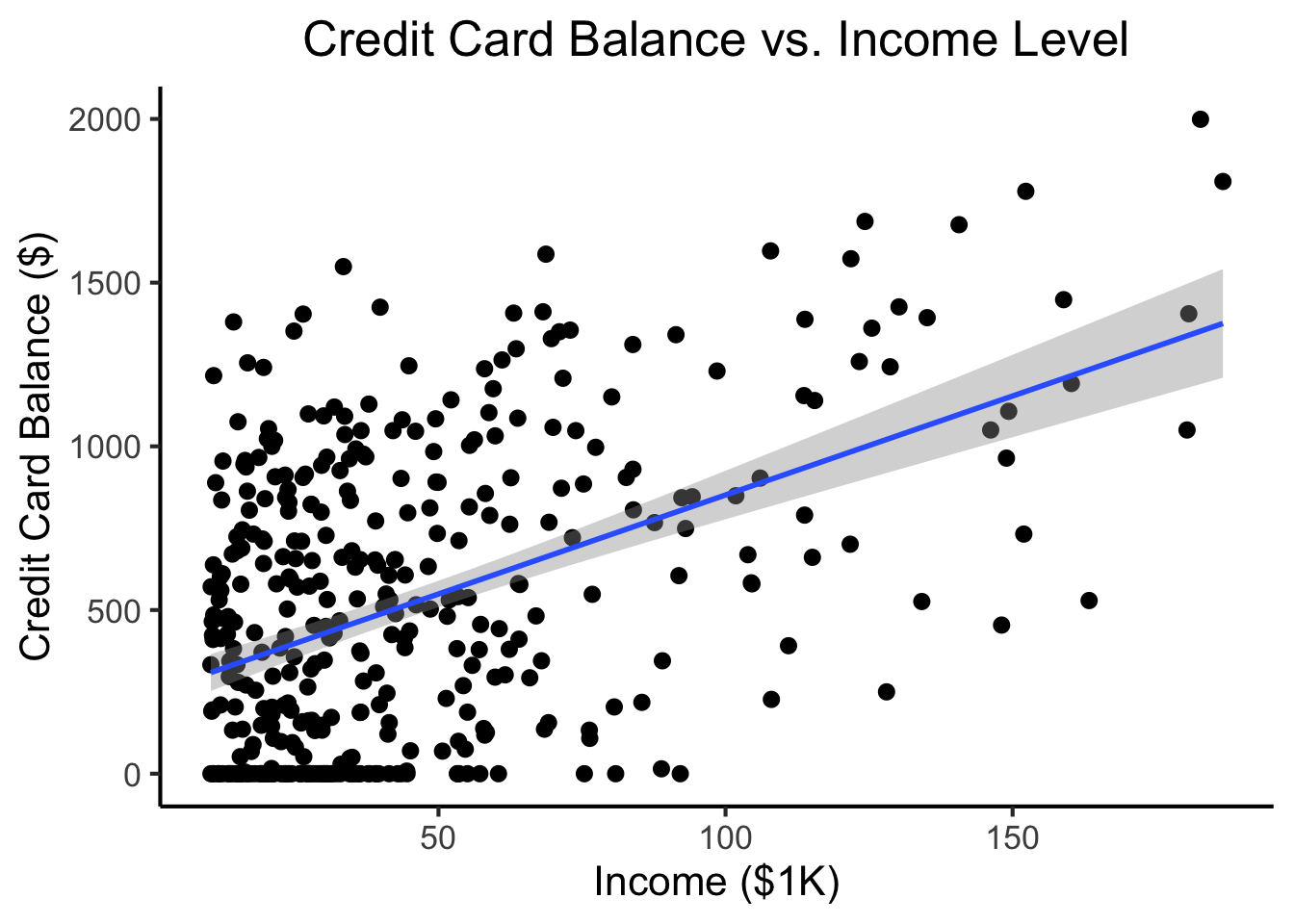

\[ \begin{align*} Y &= \beta_0 + \beta_1 \times \texttt{income} \\ &\phantom{Y} \end{align*} \]

Code
credit_df <- read_csv("assets/Credit.csv")
Rows: 400 Columns: 11
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (4): Own, Student, Married, Region
dbl (7): Income, Limit, Rating, Cards, Age, Education, Balance

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
Code
credit_plot <- credit_df |> ggplot(aes(x=Income, y=Balance)) +
  geom_point(size=0.5*g_pointsize) +
  geom_smooth(
    method='lm', formula="y ~ x", linewidth=1,
    fullrange=TRUE
  ) +
  theme_dsan() +
  labs(
    title="Credit Card Balance vs. Income Level",
    x="Income ($1K)",
    y="Credit Card Balance ($)"
  )
credit_plot

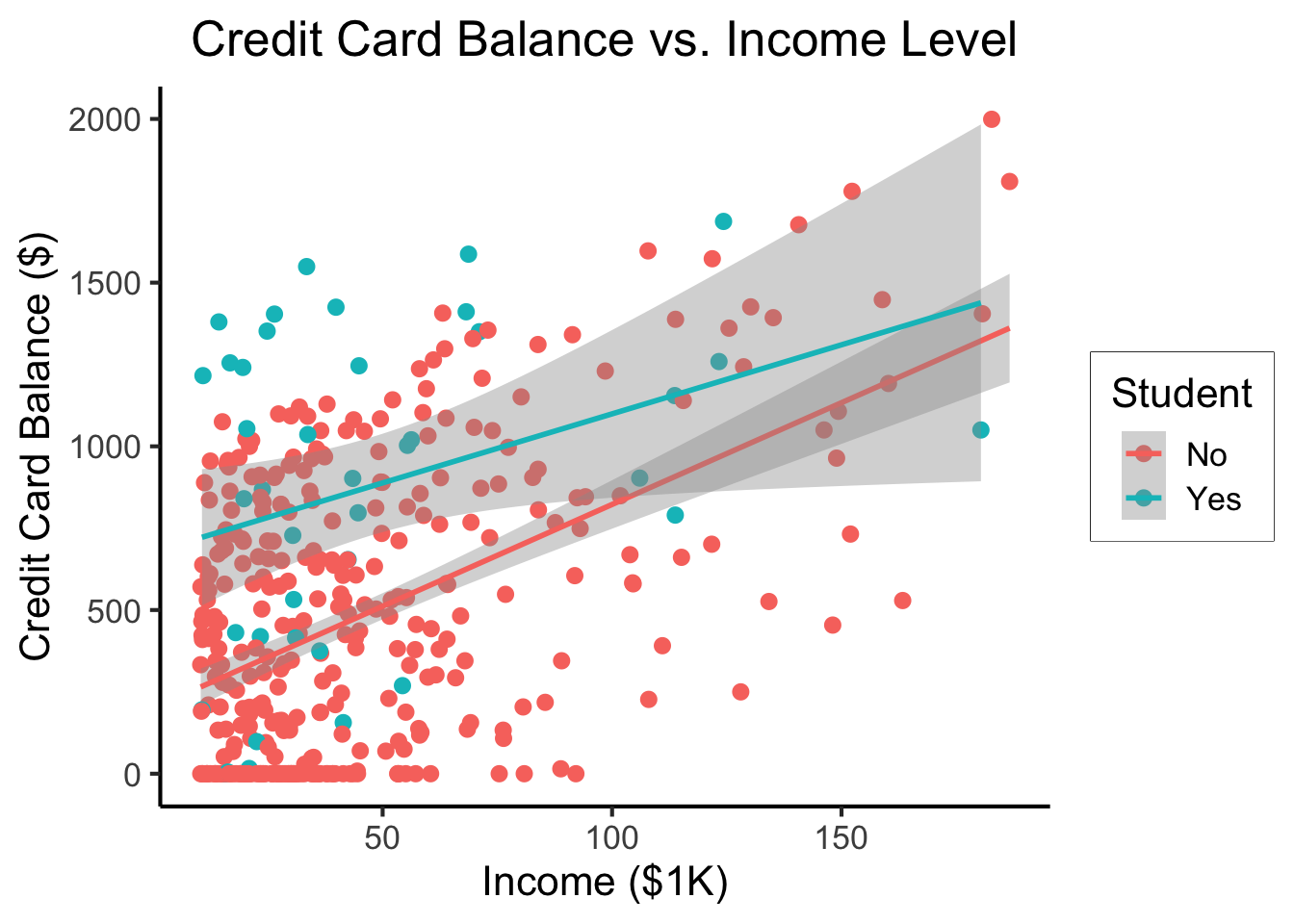

\[ \begin{align*} Y = &\beta_0 + \beta_1 \times \texttt{income} + \beta_2 \times \texttt{Student} \\ &+ \beta_3 \times (\texttt{Student} \times \texttt{Income}) \end{align*} \]

Code
student_plot <- credit_df |> ggplot(aes(x=Income, y=Balance, color=Student)) +
  geom_point(size=0.5*g_pointsize) +
  geom_smooth(
    method='lm', formula="y ~ x", linewidth=1,
    fullrange=TRUE
  ) +
  theme_dsan() +
  labs(
    title="Credit Card Balance vs. Income Level",
    x="Income ($1K)",
    y="Credit Card Balance ($)"
  )
student_plot

  • Why do we need the \(\texttt{Student} \times \texttt{Income}\) term?
  • Understanding this setup will open up a vast array of possibilities for regression 😎
  • (Dear future Jeff, let’s go through this on the board! Sincerely, past Jeff)

Logistic Regression

From MLR to Logistic Regression

  • As DSAN students, you know that we’re still sweeping classification under the rug!
  • We saw how to include binary/multiclass covariates, but what if the actual thing we’re trying to predict is binary?
  • The wrong approach is the “Linear Probability Model”:

\[ \Pr(Y \mid X) = \beta_0 + \beta_1 X + \varepsilon \]

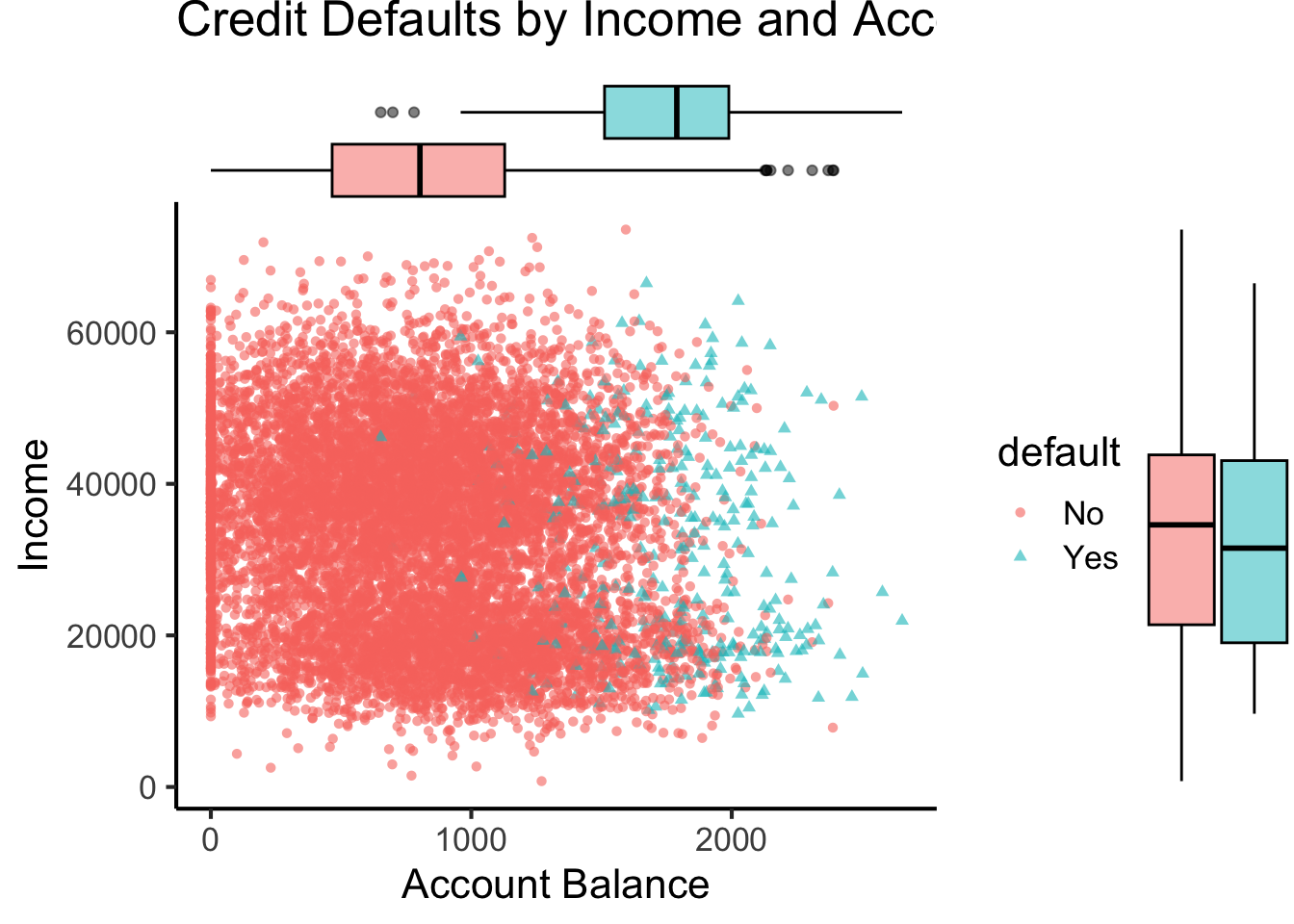

Credit Default

Code
library(tidyverse)
library(ggExtra)
default_df <- read_csv("assets/Default.csv") |>
  mutate(default_num = ifelse(default=="Yes",1,0))
Rows: 10000 Columns: 4
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (2): default, student
dbl (2): balance, income

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
Code
default_plot <- default_df |> ggplot(aes(x=balance, y=income, color=default, shape=default)) +
  geom_point(alpha=0.6) +
  theme_classic(base_size=16) +
  labs(
    title="Credit Defaults by Income and Account Balance",
    x = "Account Balance",
    y = "Income"
  )
default_mplot <- default_plot |> ggMarginal(type="boxplot", groupColour=FALSE, groupFill=TRUE)
default_mplot

Lines vs. Sigmoids(!)

Here’s what lines look like for this dataset:

Code
#lpm_model <- lm(default ~ balance, data=default_df)
default_df |> ggplot(
    aes(
      x=balance, y=default_num
    )
  ) +
  geom_point(aes(color=default)) +
  stat_smooth(method="lm", formula=y~x, color='black') +
  theme_classic(base_size=16)

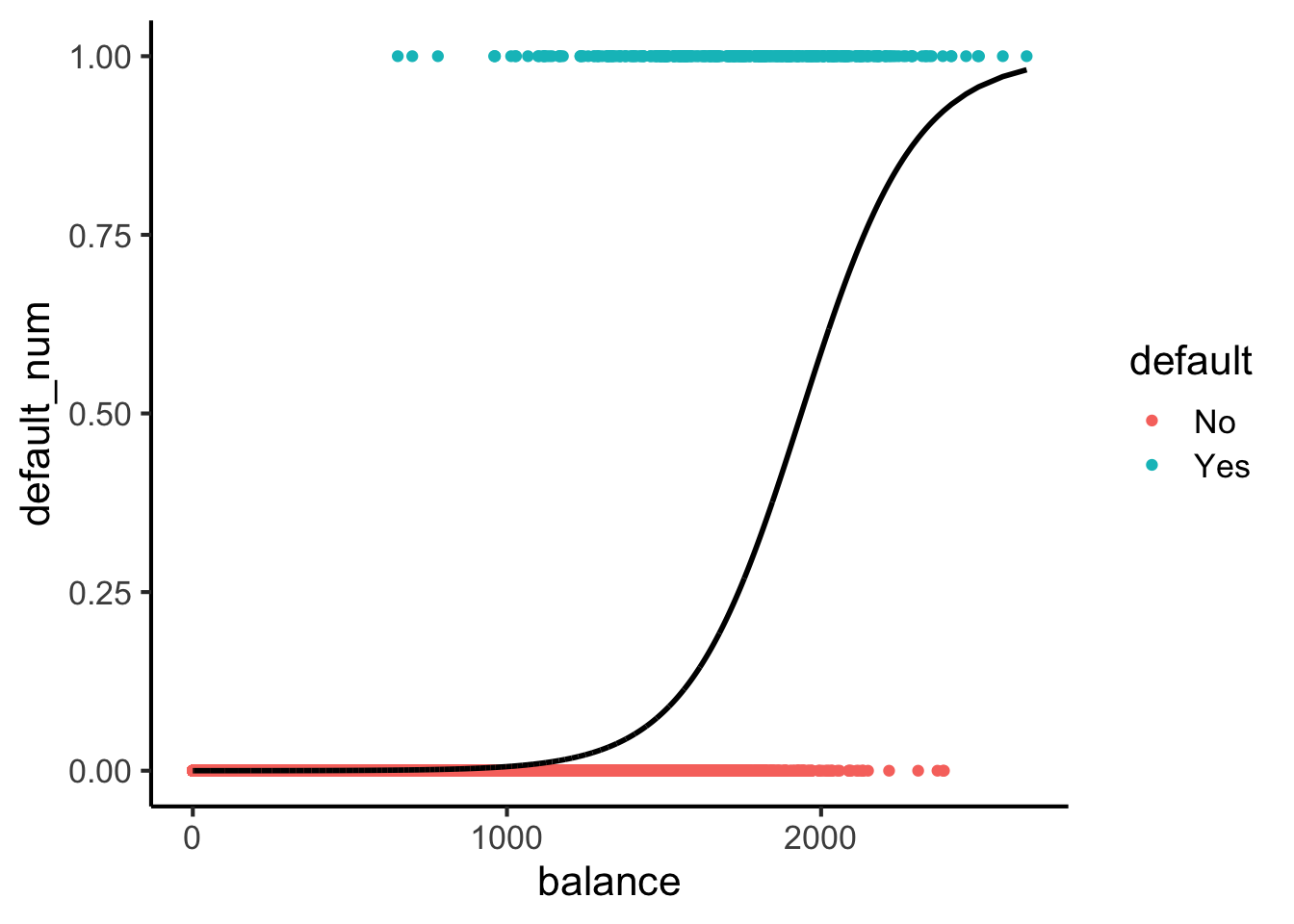

Here’s what sigmoids look like:

Code
library(tidyverse)
logistic_model <- glm(default_num ~ balance, family=binomial(link='logit'),data=default_df)
default_df$predictions <- predict(logistic_model, newdata = default_df, type = "response")
my_sigmoid <- function(x) 1 / (1+exp(-x))
default_df |> ggplot(aes(x=balance, y=default_num)) +
  #stat_function(fun=my_sigmoid) +
  geom_point(aes(color=default)) +
  geom_line(
    data=default_df,
    aes(x=balance, y=predictions),
    linewidth=1
  ) +
  theme_classic(base_size=16)

\[ \Pr(Y \mid X) = \beta_0 + \beta_1 X + \varepsilon \]

\[ \log\underbrace{\left[ \frac{\Pr(Y \mid X)}{1 - \Pr(Y \mid X)} \right]}_{\mathclap{\smash{\text{Odds Ratio}}}} = \beta_0 + \beta_1 X + \varepsilon \]

But Let’s Derive This!

\[ \begin{align*} \Pr(Y \mid X) &= \frac{e^{\beta_0 + \beta_1X}}{1 + e^{\beta_0 + \beta_1X}} \\ \iff \underbrace{\frac{\Pr(Y \mid X)}{1 - \Pr(Y \mid X)}}_{\text{Odds Ratio}} &= e^{\beta_0 + \beta_1X} \\ \iff \underbrace{\log\left[ \frac{\Pr(Y \mid X)}{1 - \Pr(Y \mid X)} \right]}_{\text{Log-Odds Ratio}} &= \beta_0 + \beta_1X \end{align*} \]

Now How Will We Ever Find “Good” Parameter Values?

  • If only we had some sort of estimator… One that would choose \(\beta_0\) and \(\beta_1\) so as to maximize the likelihood of seeing some data…

\[ L(\beta_0, \beta_1) = \prod_{\{i \mid y_i = 1\}}\Pr(Y = 1 \mid X) \prod_{\{i \mid y_i = 0\}}(1-\Pr(Y = 1 \mid X)) \]

  • (Much more on this later 😸)

The Interpretation Problem

Code
options(scipen = 9)
print(summary(logistic_model))

Call:
glm(formula = default_num ~ balance, family = binomial(link = "logit"),
    data = default_df)

Coefficients:
               Estimate  Std. Error z value Pr(>|z|)
(Intercept) -10.6513306   0.3611574  -29.49   <2e-16 ***
balance       0.0054989   0.0002204   24.95   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 2920.6  on 9999  degrees of freedom
Residual deviance: 1596.5  on 9998  degrees of freedom
AIC: 1600.5

Number of Fisher Scoring iterations: 8
  • Slope is no longer the same everywhere! It varies across different values of \(x\)…
  • What happens to the probability \(\Pr(Y = 1 \mid X)\) when \(X\) increases by 1 unit? …We need an easier-to-work-with unit

Log-Odds

  • “Linear Probability Model” \(\Pr(Y = 1 \mid X) = \beta_0 + \beta_1X\) fails, but, “fixing” it leads to

\[ \begin{align*} &\log\left[ \frac{\Pr(Y = 1 \mid X)}{1 - \Pr(Y = 1 \mid X)} \right] = \beta_0 + \beta_1 X \\ \iff &\Pr(Y = 1 \mid X) = \frac{\exp[\beta_0 + \beta_1X]}{1 + \exp[\beta_0 + \beta_1X]} = \frac{1}{1 + \exp\left[ -(\beta_0 + \beta_1X) \right] } \end{align*} \]

  • \(\leadsto\) A 1-unit increase in \(X\) is associated with a \(\beta_1\) increase in the log-odds of \(Y\)

References

Gelman, Andrew, and Jennifer Hill. 2007. Data Analysis Using Regression and Multilevel/Hierarchical Models. Cambridge University Press.

Appendix: MLR in R

Code
library(tidyverse)
ad_df <- read_csv("assets/Advertising.csv") |> rename(id=`...1`)
New names:
Rows: 200 Columns: 5
── Column specification
──────────────────────────────────────────────────────── Delimiter: "," dbl
(5): ...1, TV, radio, newspaper, sales
ℹ Use `spec()` to retrieve the full column specification for this data. ℹ
Specify the column types or set `show_col_types = FALSE` to quiet this message.
• `` -> `...1`
Code
mlr_model <- lm(
  sales ~ TV + radio + newspaper,
  data=ad_df
)
print(summary(mlr_model))

Call:
lm(formula = sales ~ TV + radio + newspaper, data = ad_df)

Residuals:
    Min      1Q  Median      3Q     Max
-8.8277 -0.8908  0.2418  1.1893  2.8292

Coefficients:
             Estimate Std. Error t value Pr(>|t|)
(Intercept)  2.938889   0.311908   9.422   <2e-16 ***
TV           0.045765   0.001395  32.809   <2e-16 ***
radio        0.188530   0.008611  21.893   <2e-16 ***
newspaper   -0.001037   0.005871  -0.177     0.86
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 1.686 on 196 degrees of freedom
Multiple R-squared:  0.8972,    Adjusted R-squared:  0.8956
F-statistic: 570.3 on 3 and 196 DF,  p-value: < 2.2e-16
  • Holding radio and newspaper spending constant…
    • An increase of $1K in spending on TV advertising is associated with
    • An increase in sales of about 46 units
  • Holding TV and newspaper spending constant…
    • An increase of $1K in spending on radio advertising is associated with
    • An increase in sales of about 189 units
