Week 7: Point Processes, Clustering, and Regularity

PPOL 6805 / DSAN 6750: GIS for Spatial Data Science
Fall 2024

Jeff Jacobs

jj1088@georgetown.edu

Wednesday, October 9, 2024

Naïve Clustering

Weeks 6-8
(My labels)		 Naïve Clustering → Point Process Models → Autocorrelation in Point Data → Autocorrelation in Lattice Data
Waller and Gotway (2004) (A bunch of stuff we already learned) → Ch 5: Analysis of Spatial Point Patterns → Ch 6: Point Data (Cases and Controls) → Ch 7: Regional Count Data
(First mention of autocorrelation on page 227)
Schabenberger and Gotway (2004) Ch 1 (Page 14): Autocorrelation → (A bunch of more complicated stuff we’ll learn later)

Why “Naïve”?

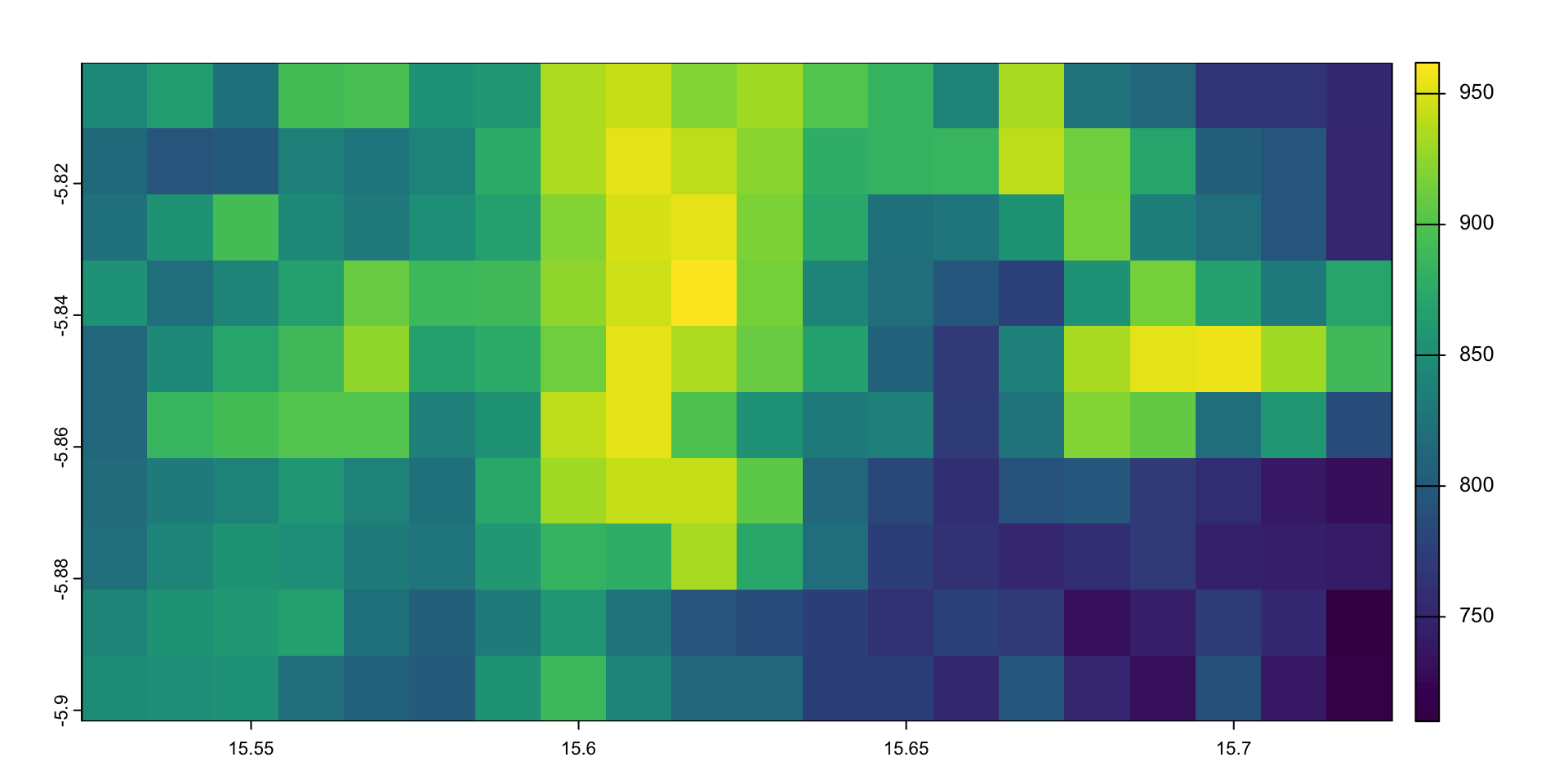

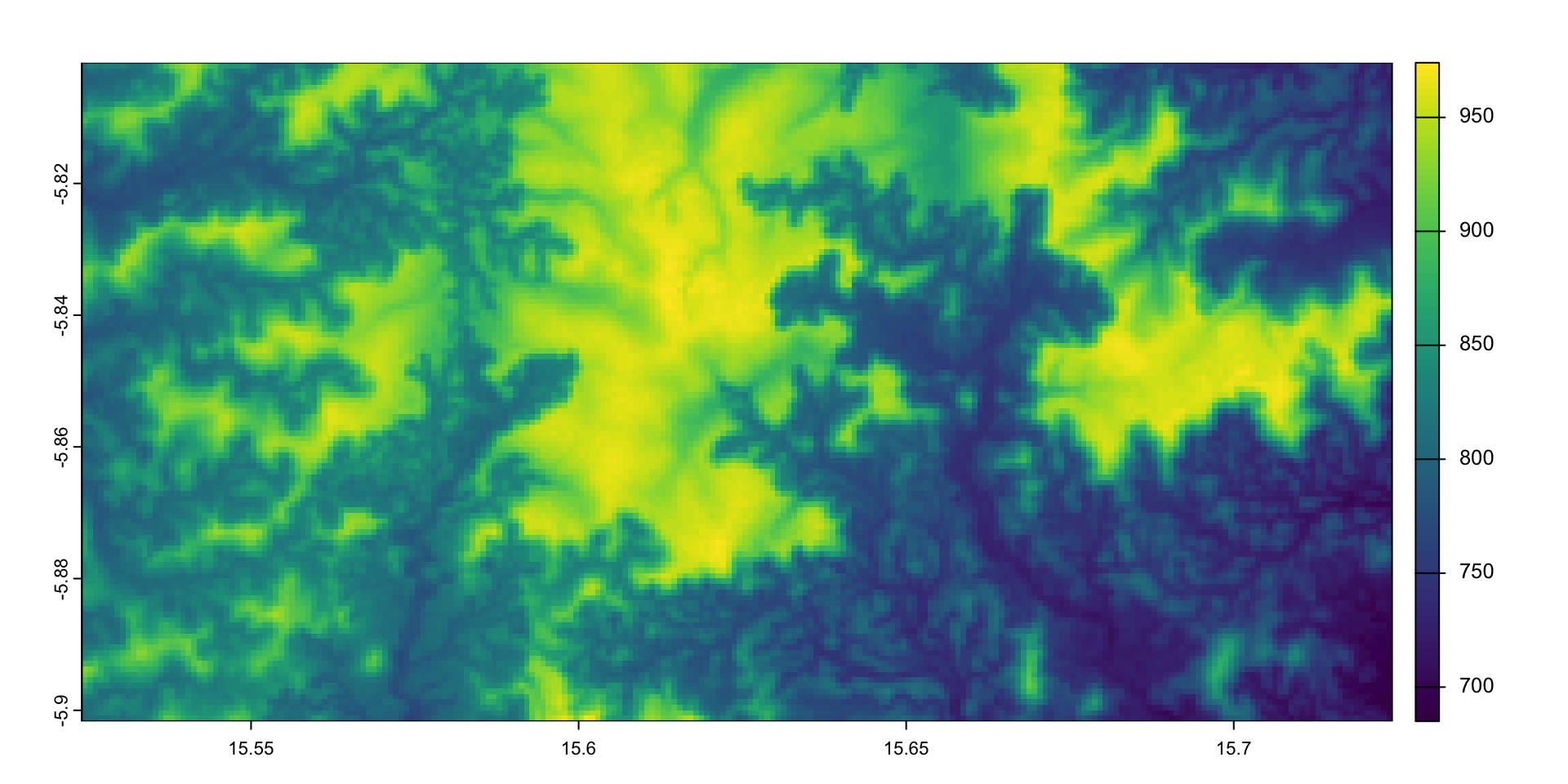

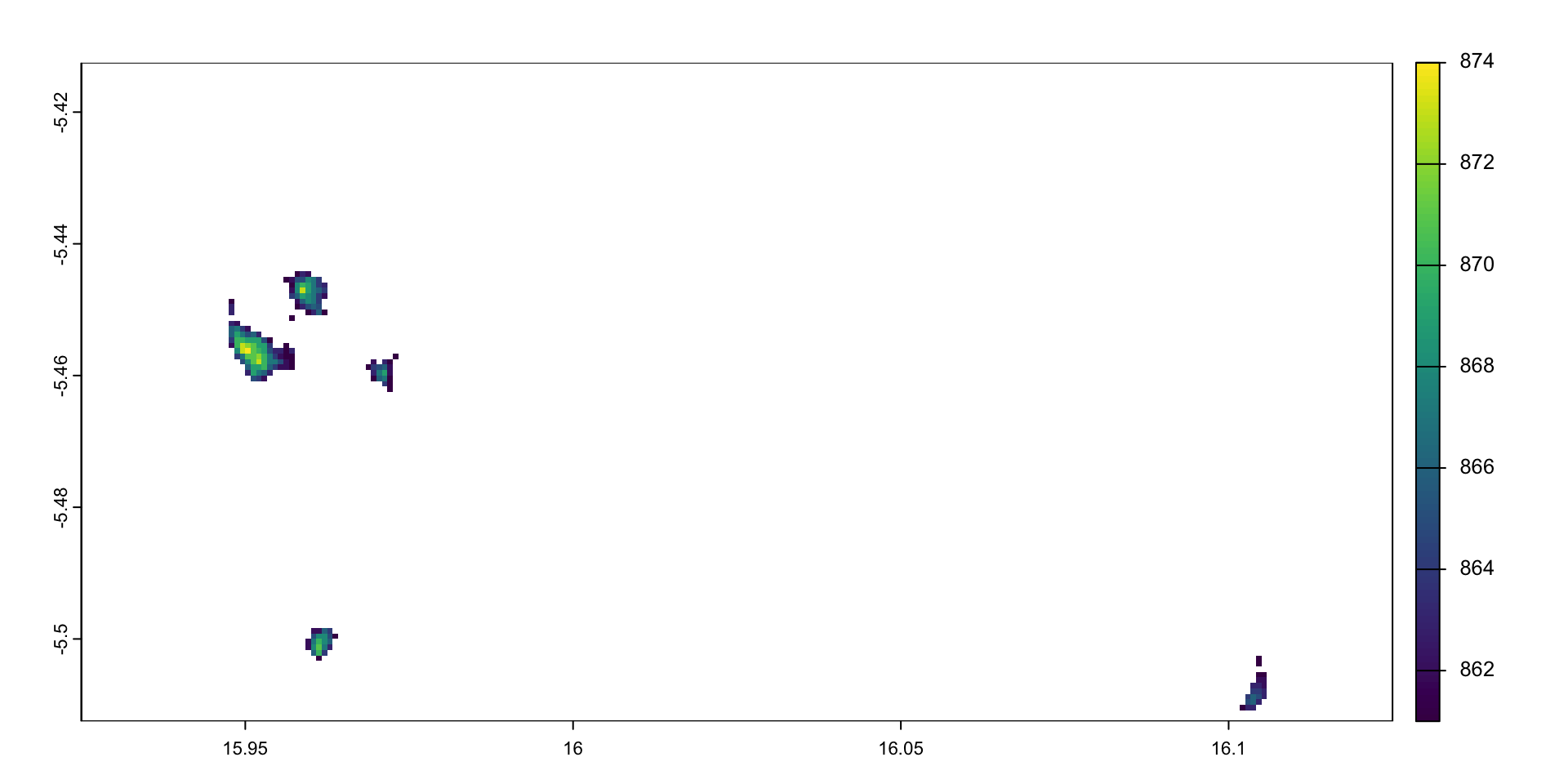

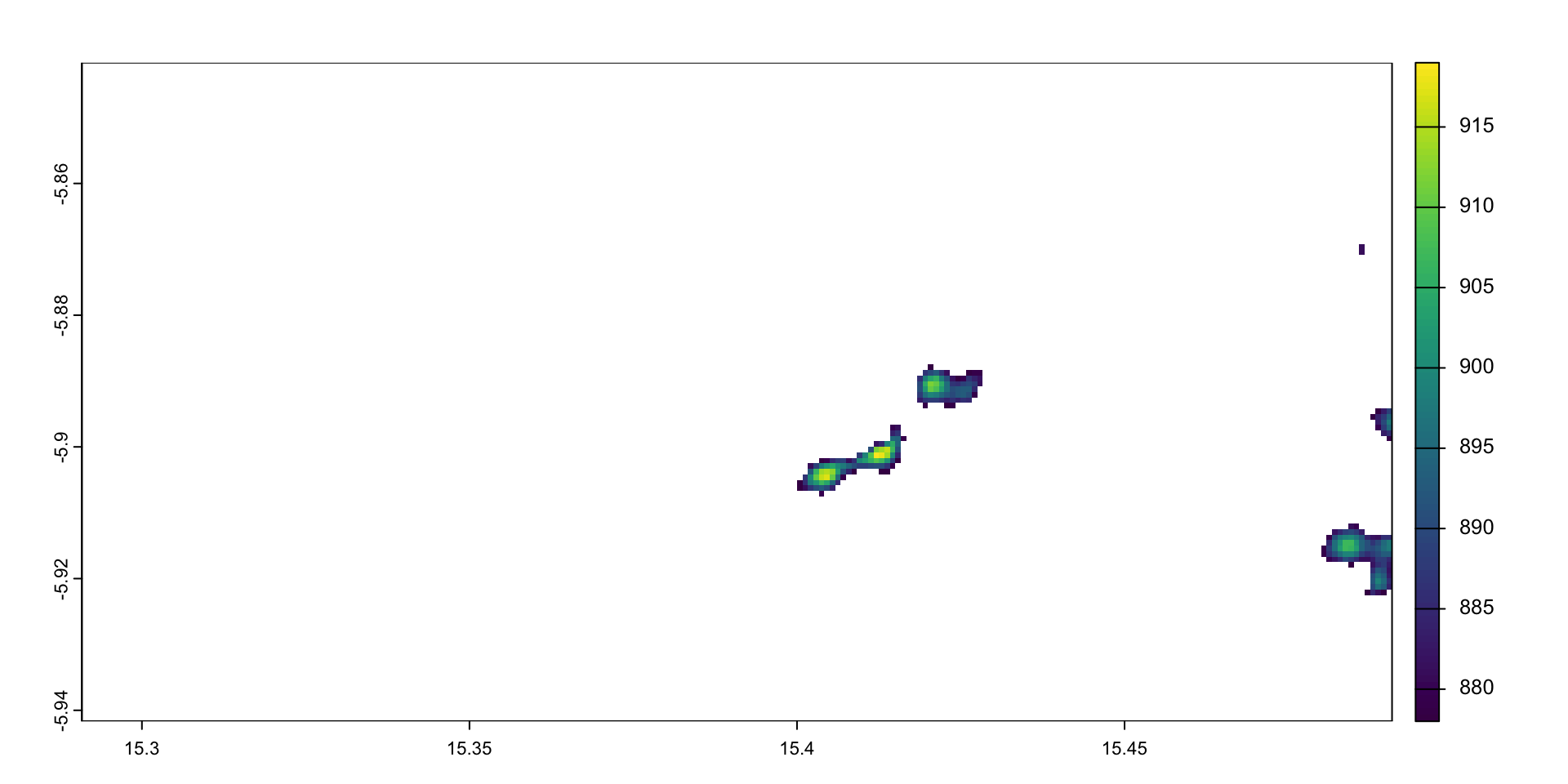

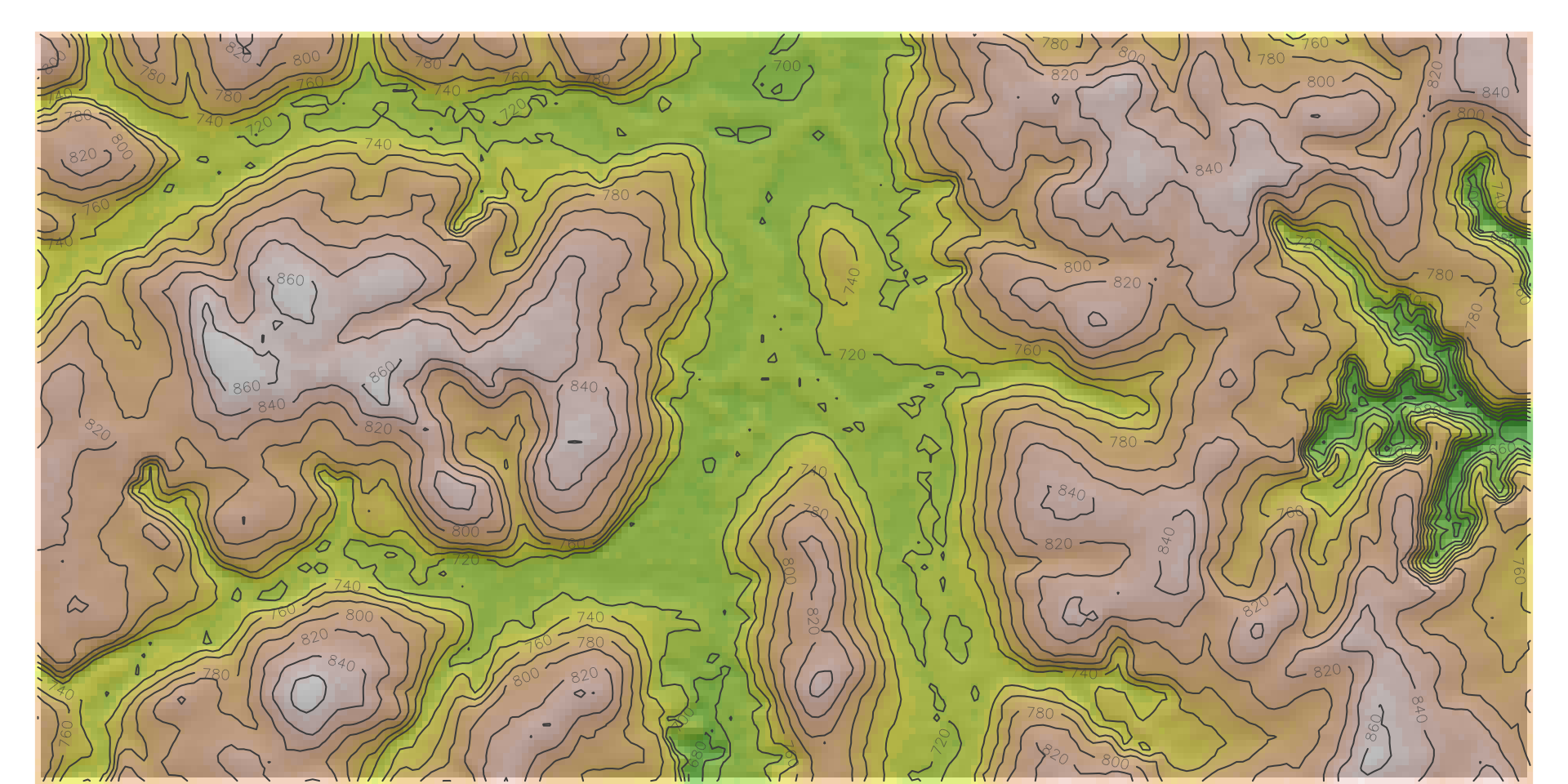

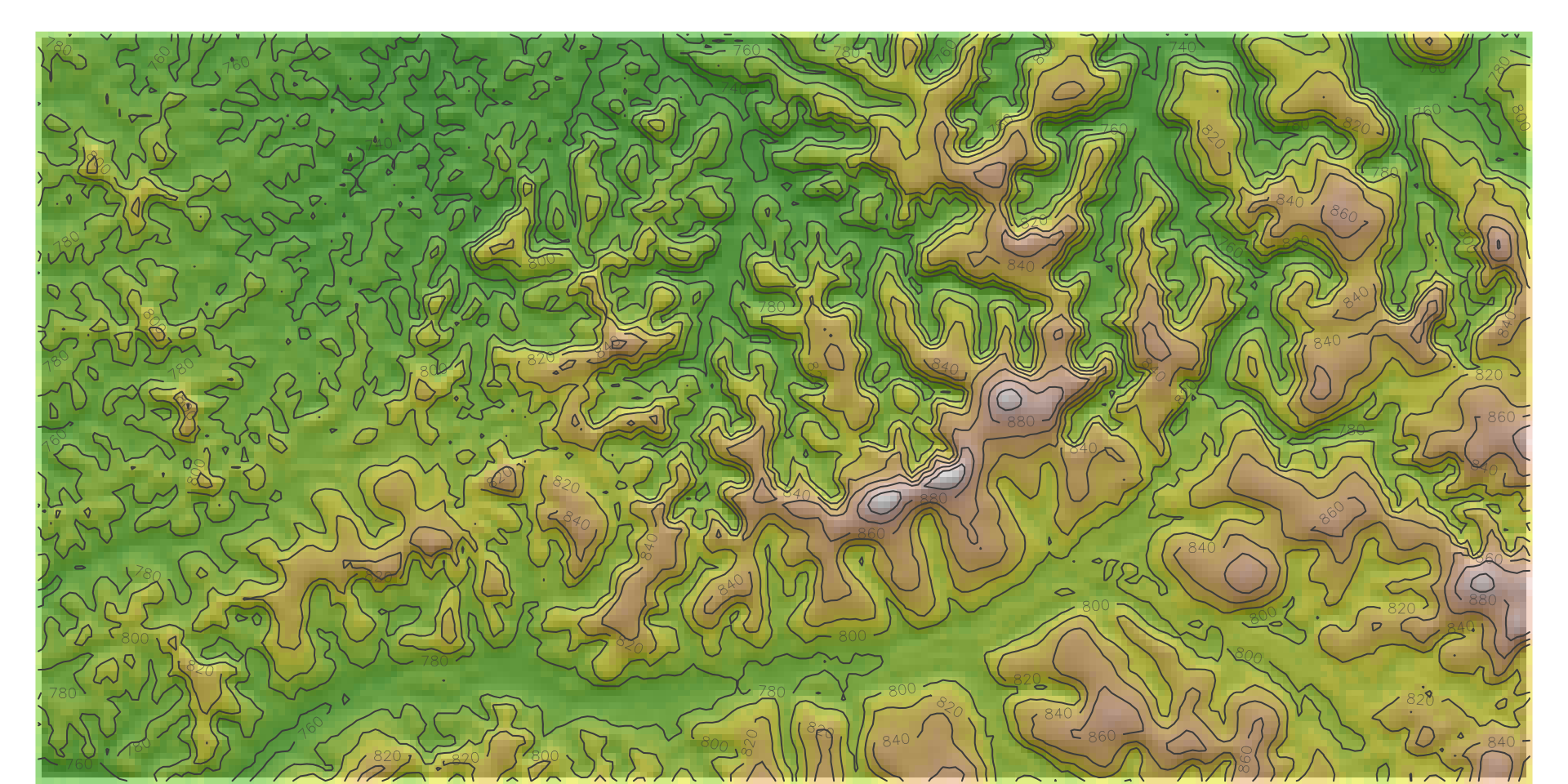

  • [Continuing from last week] Lattice data: easiest way to visualize / operationalize simple measures of clustering via spatial autocorrelation
  • So, we develop intuitions for measures like Moran’s \(I\) by looking at lattice data, but…
  • Naïve because we’re not modeling the lattice regions (cells) themselves!
  • Non-naïve clustering: Knowing the clusters but also what process led to their formation!

Spatial Randomness

Code
library(tidyverse)
library(spatstat)
set.seed(6805)
N <- 60
r_core <- 0.05
obs_window <- square(1)
# Regularity via Inhibition
#reg_sims <- rMaternI(N, r=r_core, win=obs_window)
cond_reg_sims <- rSSI(r=r_core, N)
# CSR data
#csr_sims <- rpoispp(N, win=obs_window)
cond_sr_sims <- rpoint(N, win=obs_window)
### Clustered data
#clust_sims <- rMatClust(kappa=6, r=2.5*r_core, mu=10, win=obs_window)
#clust_sims <- rMatClust(mu=5, kappa=1, scale=0.1, win=obs_window, n.cond=N, w.cond=obs_window)
#clust_sims <- rclusterBKBC(clusters="MatClust", kappa=10, mu=10, scale=0.05, verbose=FALSE)
# Each cluster consist of 10 points in a disc of radius 0.2
nclust <- function(x0, y0, radius, n) {
    #print(n)
    return(runifdisc(10, radius, centre=c(x0, y0)))
}
cond_clust_sims <- rNeymanScott(kappa=5, expand=0.0, rclust=nclust, radius=2*r_core, n=10)
# And PLOT
plot_w <- 400
plot_h <- 400
plot_scale <- 2.25
cond_reg_plot <- cond_reg_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme()
ggsave("images/cond_reg.png", cond_reg_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
cond_sr_plot <- cond_sr_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme()
ggsave("images/cond_sr.png", cond_sr_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
cond_clust_plot <- cond_clust_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme()
ggsave("images/cond_clust.png", cond_clust_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
Autocorrelation \(I = -1\) ← \(I = 0\) → \(I = 1\)
Description Negative Autocorr No Autocorr Positive Autocorr
Event at \(\mathbf{s} = (x,y)\) Implies Less likely to find another point nearby No information about nearby points More likely to find another point nearby
Resulting Pattern Regularity Reg/Clustered Mix Clustering
Process(es) Which Could Produce Pattern 1st Order: Random within even-spaced grid
2nd Order: Competition		 1st Order: i.i.d. points
2nd Order: i.i.d. distances		 1st Order: Tasty food at clust centers
2nd Order: Cooperation
Fixed \(N\) 60 60 60

Complete Spatial Randomness (CSR)

Code
library(tidyverse)
library(spatstat)
set.seed(6807)
lambda <- 60
r_core <- 0.05
obs_window <- square(1)
# Regularity via Inhibition
# Regularity via Inhibition
reg_sims <- rMaternI(lambda, r=r_core, win=obs_window)
# CSR data
csr_sims <- rpoispp(N, win=obs_window)
### Clustered data
clust_mu <- 10
clust_sims <- rMatClust(kappa=lambda / clust_mu, scale=2*r_core, mu=10, win=obs_window)
# And PLOT
plot_w <- 400
plot_h <- 400
plot_scale <- 2.25
reg_plot <- reg_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  labs(title=paste0("N = ",reg_sims$n)) +
  dsan_theme()
ggsave("images/reg.png", reg_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
csr_plot <- csr_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  labs(title=paste0("N = ",csr_sims$n)) +
  dsan_theme()
ggsave("images/csr.png", csr_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
clust_plot <- clust_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  labs(title=paste0("N = ",clust_sims$n)) +
  dsan_theme()
ggsave("images/clust.png", clust_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
Autocorrelation \(I = -1\) ← \(I = 0\) → \(I = 1\)
Description Negative Autocorr No Autocorr Positive Autocorr
Event at \(\mathbf{s} = (x,y)\) Implies Less likely to find another point nearby No information about nearby points More likely to find another point nearby
Resulting Pattern Regularity Reg/Clustered Mix Clustering
Process(es) Which Could Produce Pattern 1st Order: Random within even-spaced grid
2nd Order: Competition		 1st Order: i.i.d. points
2nd Order: i.i.d. distances		 1st Order: Tasty food at clust centers
2nd Order: Cooperation
Fixed Intensity \(\lambda\) 60 60 60
Random \(N\)

Measures are Relative to Window of Observation

  • Same data can be spatially random within one window, clustered or regular in others!
Code
N <- 60
obs_window <- square(1)
window_scale <- 3.5
csr_sims_square <- rpoispp(N, win=obs_window)
# Triangular window
obs_window_tri <- st_sfc(st_polygon(list(
    matrix(c(0.3,0.1,0.7,0.1,0.5,0.5,0.3,0.1), byrow=TRUE, nrow=4)
)))
obs_window_geom <- st_sfc(st_linestring(
    matrix(c(0,0,1,0,1,1,0,1,0,0), byrow=TRUE, nrow=5)
))
csr_sims_tri <- ppp(csr_sims_square$x, csr_sims_square$y, window=as.owin(obs_window_tri))
tri_plot <- csr_sims_tri |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme("quarter");
ggsave("images/window_tri.png", tri_plot, width=plot_w, height=plot_h, units="px", scale=window_scale)
# Square window
square_plot <- csr_sims_square |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  geom_sf(data=obs_window_tri |> sf::st_boundary()) +
  dsan_theme("quarter")
ggsave("images/window_square.png", square_plot, width=plot_w, height=plot_h, units="px", scale=window_scale)
# Circular window
obs_window_disc <- st_sfc(st_point(c(1, 0.5))) |> st_buffer(1.2)
csr_sims_circ <- ppp(csr_sims_square$x, csr_sims_square$y, window=as.owin(obs_window_disc))
circ_plot <- csr_sims_circ |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  geom_sf(data=obs_window_geom) +
  dsan_theme("quarter")
ggsave("images/window_circ.png", circ_plot, width=plot_w, height=plot_h, units="px", scale=window_scale)
Regular CSR Clustered

Point Process Models

Our New Library: spatstat!

Why Do Events Appear Where They Do?

Code
center_l_function <- function(x, ...) {

  if (!spatstat.geom::is.ppp(x) && !spatstat.geom::is.fv(x)) {
    stop("Please provide either ppp or fv object.")
  }

  if (spatstat.geom::is.ppp(x)) {
    x <- spatstat.explore::Lest(x, ...)
  }

  r <- x$r

  l_centered <- spatstat.explore::eval.fv(x - r)

  return(l_centered)
}
cond_clust_sf <- cond_clust_sims |> sf::st_as_sf()
pines_plot <- cond_clust_sf |>
  ggplot() +
  geom_sf() +
  dsan_theme("full")
ggsave("images/pines.png", pines_plot)
# density() calls density.ppp() if the argument is a ppp object
den <- density(cond_clust_sims, sigma = 0.1)
#summary(den)
png("images/intensity_plot.png")
plot(den, main = "Intensity λ(s)")
contour(den, add = TRUE) # contour plot
dev.off()
# And Kest / Lest
kest_result <- Kest(cond_clust_sims, rmax=0.5, correction="best")
lest_result <- center_l_function(cond_clust_sims, rmax=0.5)
png("images/lest.png")
plot(lest_result, main="K(h)")
dev.off()
First-Order Second-Order
Events considered individually \(\implies\) Intensity function \(\lambda(\mathbf{s})\) Second-Order: Events considered pairwise \(\implies\) \(K\)-function \(K(\vec{h})\)

References

Baddeley, Adrian, Ege Rubak, and Rolf Turner. 2015. Spatial Point Patterns: Methodology and Applications with R. CRC Press.
Schabenberger, Oliver, and Carol A. Gotway. 2004. Statistical Methods for Spatial Data Analysis. CRC Press.
Waller, Lance A., and Carol A. Gotway. 2004. Applied Spatial Statistics for Public Health Data. John Wiley & Sons.
