Week 7: Supervised Learning
DSAN 5000: Data Science and Analytics
Thursday, October 10, 2024
Statistical EDA
- Iterative process: Ask questions of the data, find answers, generate more questions
- You’re probably already used to Mean and Variance: Fancier EDA/robustness methods build upon these two!
- Why do we need to visualize? Can’t we just use mean, \(R^2\)?

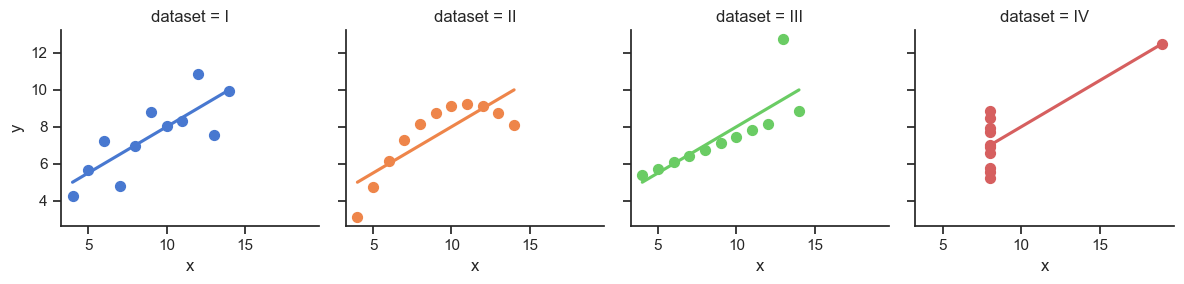

- …Enter Anscombe’s Quartet
Code
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
sns.set_theme(style="ticks")
# https://towardsdatascience.com/how-to-use-your-own-color-palettes-with-seaborn-a45bf5175146
sns.set_palette(sns.color_palette(cb_palette))
# Load the example dataset for Anscombe's quartet
anscombe_df = sns.load_dataset("anscombe")
#print(anscombe_df)
# Show the results of a linear regression within each dataset
anscombe_plot = sns.lmplot(
data=anscombe_df, x="x", y="y", col="dataset", hue="dataset",
col_wrap=4, palette="muted", ci=None,
scatter_kws={"s": 50, "alpha": 1},
height=3
);
anscombe_plot;
The Scariest Dataset of All Time
Code
| dataset | x_mean | y_mean |
|---|---|---|
| I | 9.00 | 7.50 |
| II | 9.00 | 7.50 |
| III | 9.00 | 7.50 |
| IV | 9.00 | 7.50 |
Code
| x | y | ||
|---|---|---|---|
| dataset | |||
| I | x | 1.00 | 0.82 |
| y | 0.82 | 1.00 | |
| II | x | 1.00 | 0.82 |
| y | 0.82 | 1.00 | |
| III | x | 1.00 | 0.82 |
| y | 0.82 | 1.00 | |
| IV | x | 1.00 | 0.82 |
| y | 0.82 | 1.00 |
It Doesn’t End There…
Code
import statsmodels.formula.api as smf
summary_dfs = []
for cur_ds in ['I','II','III','IV']:
ds1_df = anscombe_df.loc[anscombe_df['dataset'] == "I"].copy()
# Fit regression model (using the natural log of one of the regressors)
results = smf.ols('y ~ x', data=ds1_df).fit()
# Get R^2
rsq = round(results.rsquared, 2)
# Inspect the results
summary = results.summary()
summary.extra_txt = None
summary_df = summary_to_df(summary, corner_col = f'Dataset {cur_ds}<br>R^2 = {rsq}')
summary_dfs.append(summary_df)
disp(summary_dfs[0], include_index=False)
disp(summary_dfs[1], include_index=False)
disp(summary_dfs[2], include_index=False)
disp(summary_dfs[3], include_index=False)| Dataset I R^2 = 0.67 |
coef | std err | t | P>|t| | [0.025 | 0.975] |
|---|---|---|---|---|---|---|
| Intercept | 3 | 1.12 | 2.67 | 0.03 | 0.46 | 5.54 |
| x | 0.5 | 0.12 | 4.24 | 0 | 0.23 | 0.77 |
| Dataset II R^2 = 0.67 |
coef | std err | t | P>|t| | [0.025 | 0.975] |
|---|---|---|---|---|---|---|
| Intercept | 3 | 1.12 | 2.67 | 0.03 | 0.46 | 5.54 |
| x | 0.5 | 0.12 | 4.24 | 0 | 0.23 | 0.77 |
| Dataset III R^2 = 0.67 |
coef | std err | t | P>|t| | [0.025 | 0.975] |
|---|---|---|---|---|---|---|
| Intercept | 3 | 1.12 | 2.67 | 0.03 | 0.46 | 5.54 |
| x | 0.5 | 0.12 | 4.24 | 0 | 0.23 | 0.77 |
| Dataset IV R^2 = 0.67 |
coef | std err | t | P>|t| | [0.025 | 0.975] |
|---|---|---|---|---|---|---|
| Intercept | 3 | 1.12 | 2.67 | 0.03 | 0.46 | 5.54 |
| x | 0.5 | 0.12 | 4.24 | 0 | 0.23 | 0.77 |
Scaling

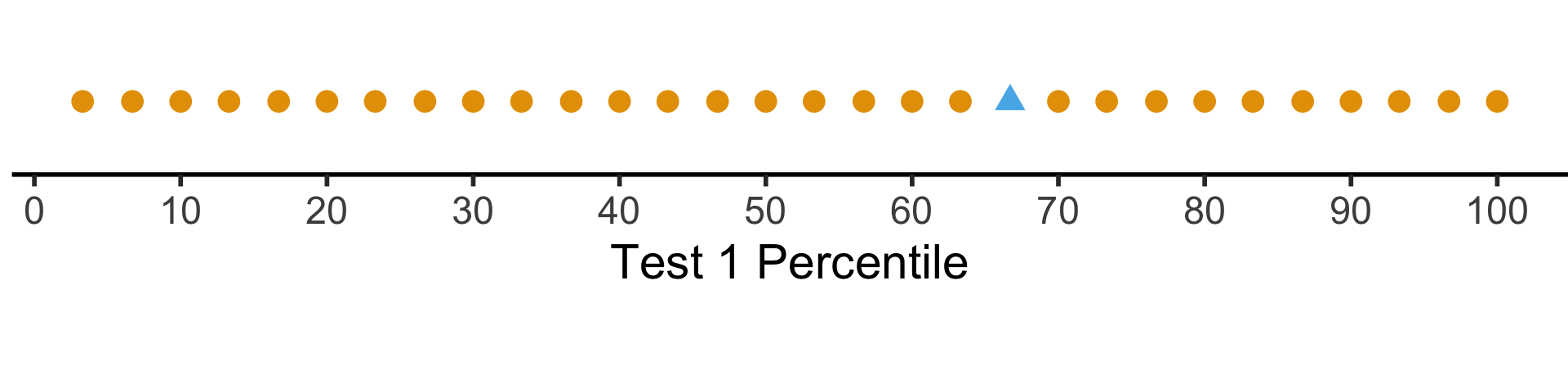

The percentile places everyone at evenly-spaced intervals from 0 to 100:
Code
# https://community.rstudio.com/t/number-line-in-ggplot/162894/4
# Add a binary indicator to track "me" (student #8)
whoami <- 29
score_df <- score_df |>
dplyr::mutate(is_me = as.numeric(id == whoami))
library(ggplot2)
t1_line_data <- tibble::tibble(
x = score_df$t1_pctile,
y = 0,
me = score_df$is_me
)
ggplot(t1_line_data, aes(x, y, col=factor(me), shape=factor(me))) +
geom_point(aes(size=g_pointsize)) +
scale_x_continuous(breaks=seq(from=0, to=100, by=10)) +
scale_color_discrete(c(0,1)) +
dsan_theme("half") +
theme(
legend.position="none",
#rect = element_blank(),
#panel.grid = element_blank(),
axis.title.y = element_blank(),
axis.text.y = element_blank(),
axis.line.y = element_blank(),
axis.ticks.y=element_blank(),
panel.spacing = unit(0, "mm"),
plot.margin = margin(-35, 0, 0, 0, "pt"),
) +
labs(
x = "Test 1 Percentile"
) +
coord_fixed(ratio = 100)

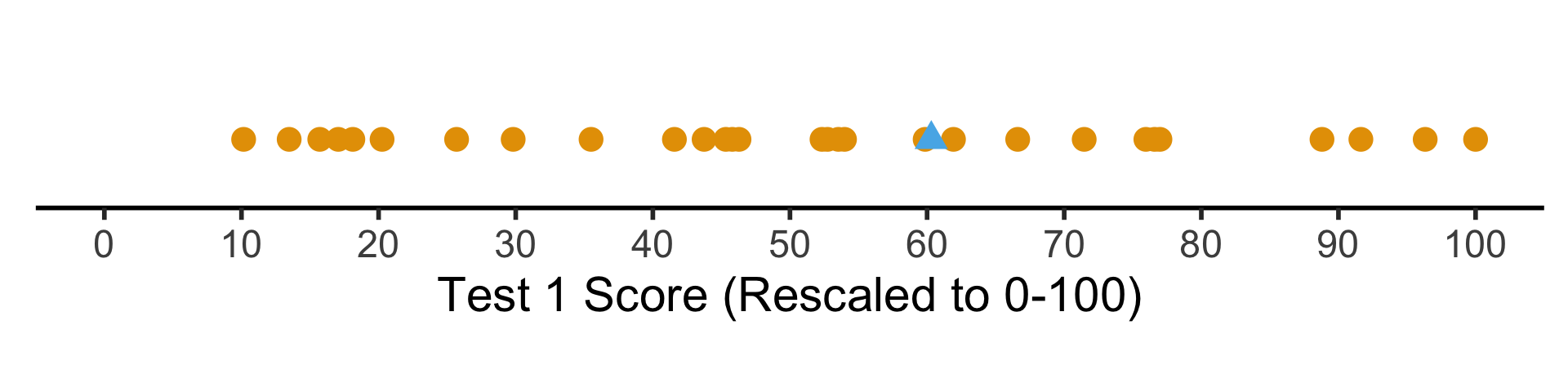

But what if we want to see their absolute performance, on a 0 to 100 scale?
Code
library(scales)
score_df <- score_df |>
dplyr::mutate(
t1_rescaled = rescale(
t1_score,
from = c(t1_min, t1_max),
to = c(0, 100)
),
t2_rescaled = rescale(
t2_score,
from = c(t2_min, t2_max),
to = c(0, 100)
)
)
# Place "me" last so that it gets plotted last
t1_rescaled_line_data <- tibble::tibble(
x = score_df$t1_rescaled,
y = 0,
me = score_df$is_me
) |> dplyr::arrange(me)
ggplot(t1_rescaled_line_data, aes(x,y,col=factor(me), shape=factor(me))) +
geom_point(size=g_pointsize) +
scale_x_continuous(breaks=seq(from=0, to=100, by=10)) +
dsan_theme("half") +
expand_limits(x=c(0, 100)) +
theme(
legend.position="none",
#rect = element_blank(),
#panel.grid = element_blank(),
axis.title.y = element_blank(),
axis.text.y = element_blank(),
axis.line.y = element_blank(),
axis.ticks.y=element_blank(),
#panel.spacing = unit(0, "mm"),
#plot.margin = margin(-40, 0, 0, 0, "pt"),
) +
labs(
x = "Test 1 Score (Rescaled to 0-100)"
) +
coord_fixed(ratio = 100)

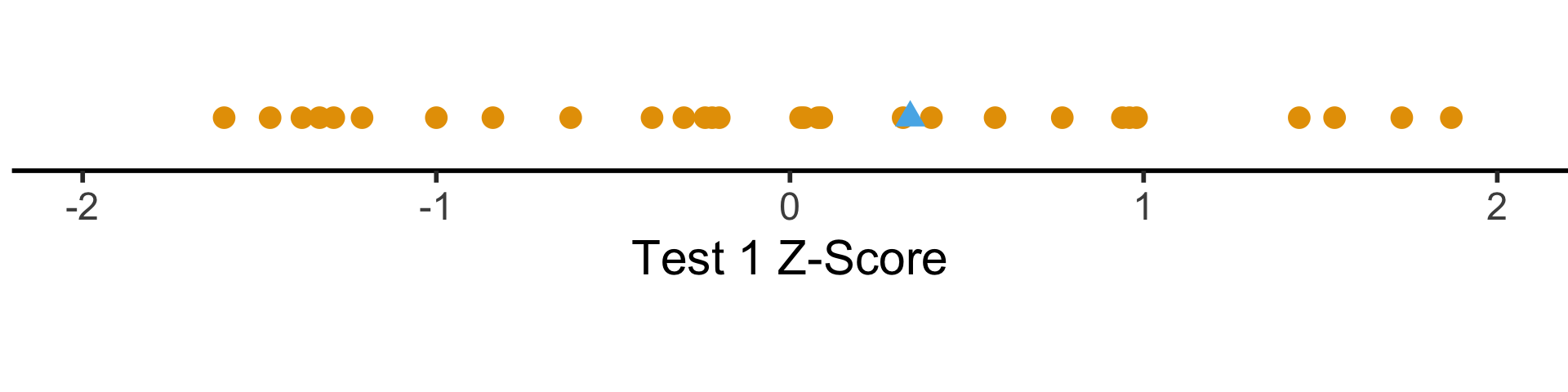

Shifting and Scaling: The \(z\)-Score
- Enter the \(z\)-score!
\[ z_i = \frac{x_i - \mu}{\sigma} \]
- Unit of original \(x_i\) values: ?
- Unit of \(z\)-score: standard deviations from the mean!
Code
t1_z_score_line_data <- tibble::tibble(
x = score_df$t1_z_score,
y = 0,
me = score_df$is_me
) |> dplyr::arrange(me)
ggplot(t1_z_score_line_data, aes(x, y, col=factor(me), shape=factor(me))) +
geom_point(aes(size=g_pointsize)) +
scale_x_continuous(breaks=c(-2,-1,0,1,2)) +
dsan_theme("half") +
theme(
legend.position="none",
#rect = element_blank(),
#panel.grid = element_blank(),
axis.title.y = element_blank(),
axis.text.y = element_blank(),
axis.line.y = element_blank(),
axis.ticks.y=element_blank(),
plot.margin = margin(-20,0,0,0,"pt")
) +
expand_limits(x=c(-2,2)) +
labs(
x = "Test 1 Z-Score"
) +
coord_fixed(ratio = 3)
Distance Metrics
Why Should We Worry About This?
Distances Are Metaphors We Use To Accomplish Something
Image Credit: Peter Dovak
Which Metric(s) Should We Use?
\(L^p\)-norm:
\[ || \mathbf{x} - \mathbf{y} ||_p = \left(\sum_{i=1}^n |x_i - y_i|^p \right)^{1/p} \]
Edit Distance, e.g., Hamming distance:
\[ \begin{array}{c|c|c|c|c|c} x & \green{1} & \green{1} & \red{0} & \red{1} & 1 \\ \hline & ✅ & ✅ & ❌ & ❌ & ✅ \\\hline y & \green{1} & \green{1} & \red{1} & \red{0} & 1 \\ \end{array} \; \leadsto d(x,y) = 2 \]
KL Divergence (Probability distributions):
\[ \begin{align*} \kl(P \parallel Q) &= \sum_{x \in \mathcal{R}_X}P(x)\log\left[ \frac{P(x)}{Q(x)} \right] \\ &\neq \kl(Q \parallel P) \; (!) \end{align*} \]
Top Secret Non-Well-Defined Yet Useful Norms
- The “\(L^0\)-norm”
\[ || \mathbf{x} - \mathbf{y} ||_0 = \mathbf{1}\left[x_i \neq y_i\right] \]
- The “\(L^{1/2}\)-norm”
\[ || \mathbf{x} - \mathbf{y} ||_{1/2} = \left(\sum_{i=1}^n \sqrt{x_i - y_i} \right)^2 \]
- What’s wrong with these norms? (Re-)enter the Triangle Inequality! \(d\) defines a norm iff
\[ \forall a, b, c \left[ d(a,c) \leq d(a,b) + d(b,c) \right] \]
Code
import matplotlib.pyplot as plt
import numpy as np
#p_values = [0., 0.5, 1, 1.5, 2, np.inf]
p_values = [0.5, 1, 2, np.inf]
x, y = np.meshgrid(np.linspace(-3, 3, num=101), np.linspace(-3, 3, num=101))
fig, axes = plt.subplots(ncols=(len(p_values) + 1)// 2,
nrows=2, figsize=(5, 5))
for p, ax in zip(p_values, axes.flat):
if np.isinf(p):
z = np.maximum(np.abs(x),np.abs(y))
else:
z = ((np.abs((x))**p) + (np.abs((y))**p))**(1./p)
ax.contourf(x, y, z, 30, cmap='bwr')
ax.contour(x, y, z, [1], colors='red', linewidths = 2)
ax.title.set_text(f'p = {p}')
ax.set_aspect('equal', 'box')
plt.tight_layout()
#plt.subplots_adjust(hspace=0.35, wspace=0.25)

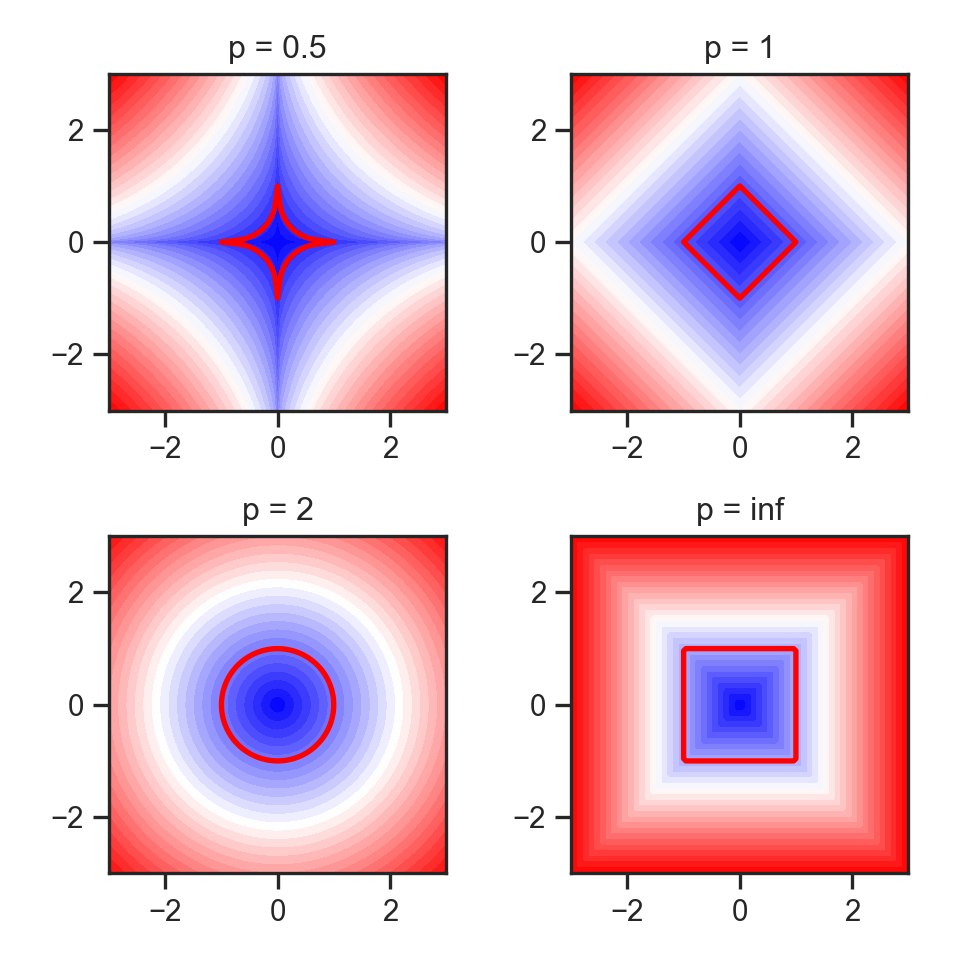

plt.show()Visualizing “circles” in \(L^p\) space:
The Value of Studying
- You are a teacher trying to assess the causal impact of studying on homework scores
- Let \(S\) = hours of studying, \(H\) = homework score
- So far so good: we could estimate the relationship via (e.g.) regression
\[ h_i = \beta_0 + \beta_1 s_i + \varepsilon_i \]
My Dog Ate My Homework
- The issue: for some students \(h_i\) is missing, since their dog ate their homework
- Let \(D = \begin{cases}1 &\text{if dog ate homework} \\ 0 &\text{otherwise}\end{cases}\)
- This means we don’t observe \(H\) but \(H^* = \begin{cases} H &\text{if }D = 0 \\ \texttt{NA} &\text{otherwise}\end{cases}\)
- In the easy case, let’s say that dogs eat homework at random (i.e., without reference to \(S\) or \(H\)). Then we say \(H\) is “missing at random”. Our PGM now looks like:
My Dog Ate My Homework Because of Reasons
There are scarier alternatives, though! What if…
Dogs eat homework because their owner studied so much that the dog got ignored?
Dogs hate sloppy work, and eat bad homework that would have gotten a low score
Noisy homes (\(Z = 1\)) cause dogs to get agitated and eat homework more often, and students do worse
Tukey’s Rule
- Given the first quartile (25th percentile) \(Q_1\), and the third quartile (75th percentile) \(Q_2\), define the Inter-Quartile Range as
\[ \iqr = Q_3 - Q_1 \]
- Then an outlier is a point more than \(1.5 \cdot \iqr\) away from \(Q_1\) or \(Q_3\); outside of
\[ [Q_1 - 1.5 \cdot \iqr, \; Q_3 + 1.5 \cdot \iqr] \]

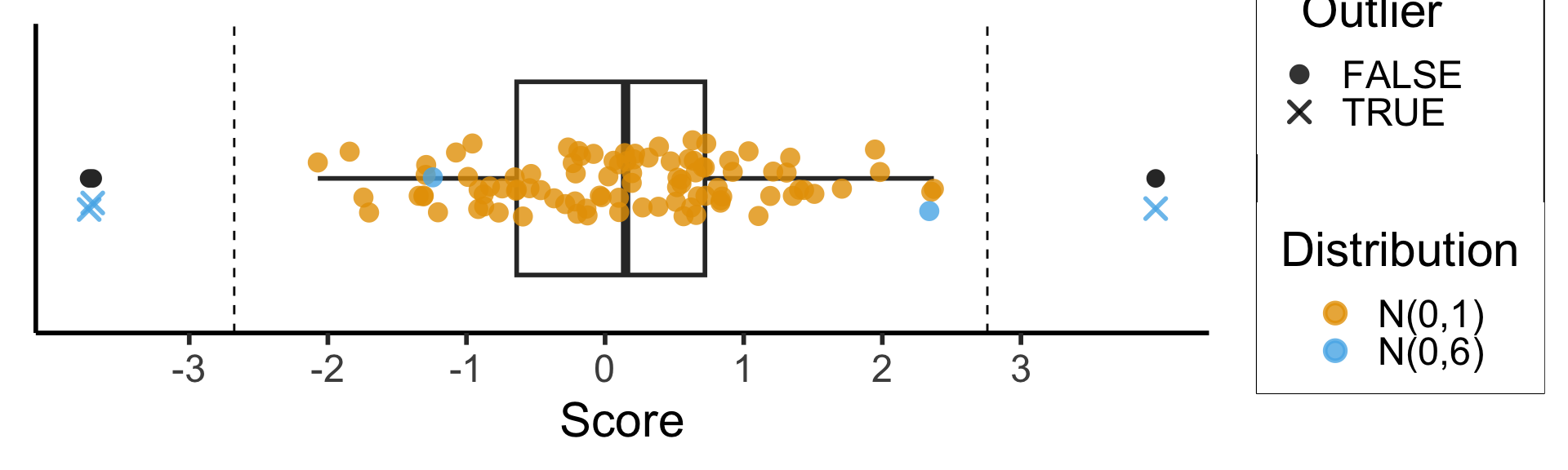

- This is the outlier rule used for box-and-whisker plots:
Code
library(ggplot2)
library(tibble)
library(dplyr)
# Generate normal data
dist_df <- tibble::tibble(Score=rnorm(95), Distribution="N(0,1)")
# Add outliers
outlier_dist_sd <- 6
outlier_df <- tibble::tibble(Score=rnorm(5, 0, outlier_dist_sd), Distribution=paste0("N(0,",outlier_dist_sd,")"))
data_df <- bind_rows(dist_df, outlier_df)
# Compute iqr and outlier range
q1 <- quantile(data_df$Score, 0.25)
q3 <- quantile(data_df$Score, 0.75)
iqr <- q3 - q1
iqr_cutoff_lower <- q1 - 1.5 * iqr
iqr_cutoff_higher <- q3 + 1.5 * iqr
is_outlier <- function(x) (x < iqr_cutoff_lower) || (x > iqr_cutoff_higher)
data_df['Outlier'] <- sapply(data_df$Score, is_outlier)
#data_df
ggplot(data_df, aes(x=Score, y=factor(0))) +
geom_boxplot(outlier.color = NULL, linewidth = g_linewidth, outlier.size = g_pointsize / 1.5) +
geom_jitter(data=data_df, aes(col = Distribution, shape=Outlier), size = g_pointsize / 1.5, height=0.15, alpha = 0.8, stroke = 1.5) +
geom_vline(xintercept = iqr_cutoff_lower, linetype = "dashed") +
geom_vline(xintercept = iqr_cutoff_higher, linetype = "dashed") +
#coord_flip() +
dsan_theme("half") +
theme(
axis.title.y = element_blank(),
axis.ticks.y = element_blank(),
axis.text.y = element_blank()
) +
scale_x_continuous(breaks=seq(from=-3, to=3, by=1)) +
scale_shape_manual(values=c(16, 4))

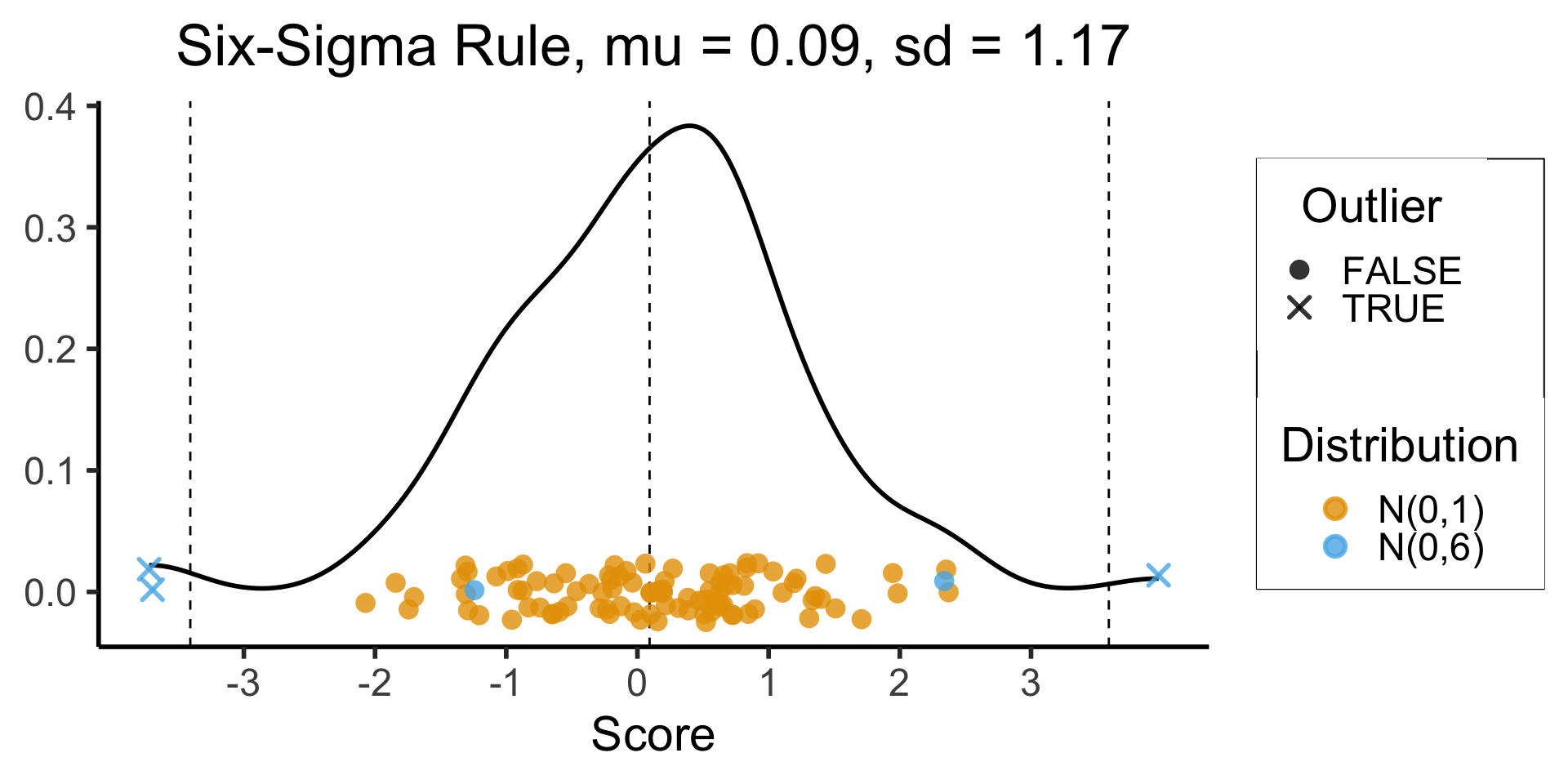

3-Sigma Rule
- Recall the 68-95-99.7 Rule
- The 3-Sigma Rule says simply: throw away anything more than 3 standard deviations away from the mean (beyond range that should contain 99.7% of data)
Code
mean_score <- mean(data_df$Score)
sd_score <- sd(data_df$Score)
lower_cutoff <- mean_score - 3 * sd_score
upper_cutoff <- mean_score + 3 * sd_score
# For printing / displaying
mean_score_str <- sprintf(mean_score, fmt='%.2f')
sd_score_str <- sprintf(sd_score, fmt='%.2f')
ggplot(data_df, aes(x=Score)) +
geom_density(linewidth = g_linewidth) +
#geom_boxplot(outlier.color = NULL, linewidth = g_linewidth, outlier.size = g_pointsize / 1.5) +
#geom_jitter(data=data_df, aes(y = factor(0), col = dist), size = g_pointsize / 1.5, height=0.25) +
#coord_flip() +
dsan_theme("half") +
theme(
axis.title.y = element_blank(),
#axis.ticks.y = element_blank(),
#axis.text.y = element_blank()
) +
#geom_boxplot() +
geom_vline(xintercept = mean_score, linetype = "dashed") +
geom_vline(xintercept = lower_cutoff, linetype = "dashed") +
geom_vline(xintercept = upper_cutoff, linetype = "dashed") +
geom_jitter(data=data_df, aes(x = Score, y = 0, col = Distribution, shape = Outlier),
size = g_pointsize / 1.5, height=0.025, alpha=0.8, stroke=1.5) +
scale_x_continuous(breaks=seq(from=-3, to=3, by=1)) +
scale_shape_manual(values=c(16, 4)) +
labs(
title = paste0("Six-Sigma Rule, mu = ",mean_score_str,", sd = ",sd_score_str),
y = "Density"
)
Driving the Point Home
Presumed DGP:
Actual DGP:

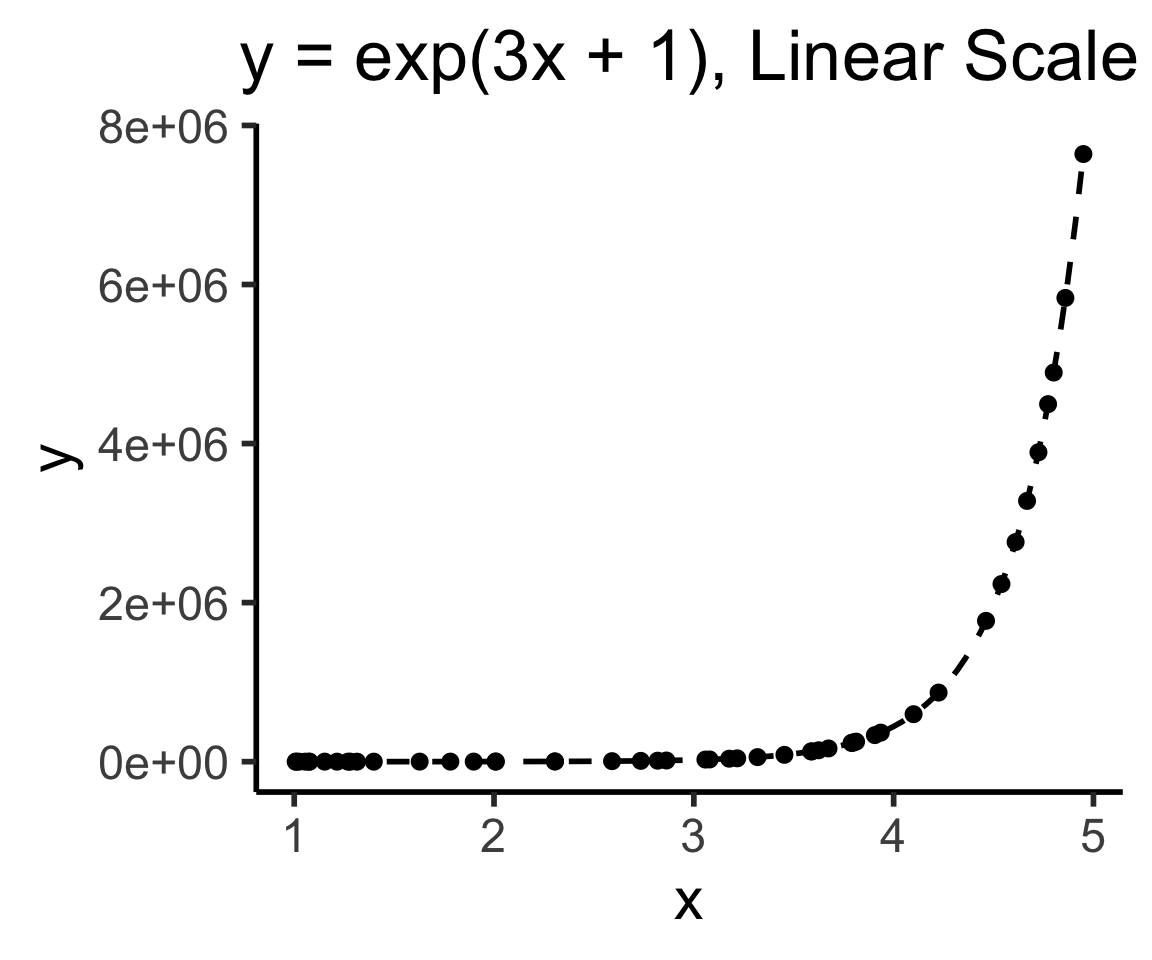

In Pictures
Code
library(tidyverse)
N <- 50
x_min <- 1
x_max <- 5
x_vals <- runif(N, x_min, x_max)
noise_vals <- rnorm(N, 0, exp(5))
my_exp <- function(x) exp(3*x + 1)
y_exp <- my_exp(x_vals) + noise_vals
exp_df <- tibble::tibble(x=x_vals, y=y_exp)
ggplot(exp_df) +
stat_function(data=data.frame(x=c(x_min,x_max)), fun = my_exp, linewidth = g_linewidth, linetype="dashed") +
geom_point(aes(x=x, y=y), size = g_pointsize / 2) +
dsan_theme("half") +
labs(
title="y = exp(3x + 1), Linear Scale"
)
Code
# Log2 scaling of the y axis (with visually-equal spacing)
library(scales)
ggplot(exp_df) +
stat_function(data=data.frame(x=c(x_min,x_max)), fun = my_exp, linewidth = g_linewidth, linetype="dashed") +
geom_point(aes(x=x, y=y), size = g_pointsize / 2) +
dsan_theme("half") +
scale_y_continuous(trans = log_trans(),
breaks = log_breaks()) +
labs(
title="y = exp(3x + 1), Log Scale"
)
\[ y = e^{mx + b} \iff \log(y) = mx + b \]

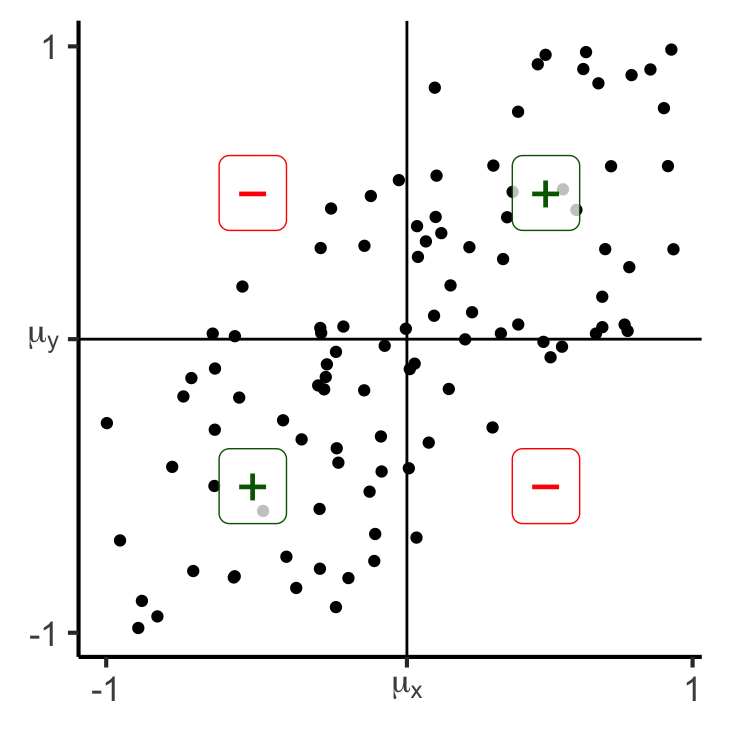

Covariance: Intuition 1.0
- If we are at the mean \((\mu_x,\mu_y)\), what is likelihood points to the right are also above?
- Similarly,what is the likelihood that points to the left are also below?
Code
library(tidyverse)
library(latex2exp)
gen_y_noisy <- function(x_val, eps) {
lower <- max(-1, x_val - eps)
upper <- min(1, x_val + eps)
y_noisy <- runif(1, lower, upper)
return(y_noisy)
}
N <- 100
x_vals <- runif(N, -1, 1)
x_mean <- mean(x_vals)
y_collinear <- x_vals
y_coll_mean <- mean(y_collinear, drop.na = TRUE)
df_collinear <- tibble::tibble(x=x_vals, y=y_collinear, rel="collinear")
# Force the points to be inside [-1,1]
y_noisy <- x_vals
for (i in 1:length(y_noisy)) {
cur_x_val <- x_vals[i]
y_noisy[i] <- gen_y_noisy(cur_x_val, 0.75)
}
y_noisy_mean <- mean(y_noisy, na.rm = TRUE)
#print(y_noisy_mean)
df_noisy <- tibble::tibble(x = x_vals, y = y_noisy, rel="noise")
# Label vals above and below mean
label_df <- tribble(
~x, ~y, ~label,
0.5, 0.5, "+",
-0.5, -0.5, "+",
0.5, -0.5, "\u2212",
-0.5, 0.5, "\u2212"
)
gen_cov_plot <- function(df) {
x_mean = mean(df$x)
y_mean = mean(df$y)
ggplot(df, aes(x=x, y=y)) +
geom_point() +
geom_vline(xintercept = x_mean) +
geom_hline(yintercept = y_mean) +
#facet_grid(. ~ rel) +
geom_label(
data=label_df,
aes(x=x, y=y, label=label, color=label),
alpha=0.75,
size = g_pointsize * 1.5
) +
scale_color_manual(values=c("darkgreen","red")) +
dsan_theme() +
remove_legend() +
theme(
#axis.text.x = element_blank(),
axis.title.x = element_blank(),
#axis.ticks.x = element_blank(),
#axis.text.y = element_blank(),
#axis.ticks.y = element_blank(),
axis.title.y = element_blank()
) +
xlim(c(-1,1)) + ylim(c(-1,1)) +
coord_fixed(ratio=1) +
scale_x_continuous(breaks=c(-1, x_mean, 1), labels=c("-1",TeX(r"($\mu_x$)"),"1")) +
scale_y_continuous(breaks=c(-1, y_mean, 1), labels=c("-1",TeX(r"($\mu_y$)"),"1"))
}
gen_cov_table <- function(df, print_matches = FALSE) {
x_mean <- mean(df$x, na.rm = TRUE)
y_mean <- mean(df$y, na.rm = TRUE)
df <- df |> mutate(
x_contrib = ifelse(x > x_mean, "+", "-"),
y_contrib = ifelse(y > y_mean, "+", "-"),
match = x_contrib == y_contrib
)
contrib_crosstab <- table(df$y_contrib, df$x_contrib)
colnames(contrib_crosstab) <- c("x-", "x+")
rownames(contrib_crosstab) <- c("y-", "y+")
if (!print_matches) {
print(contrib_crosstab)
} else {
# Num matches
num_matches <- sum(df$match)
num_mismatch <- nrow(df) - num_matches
writeLines(paste0(num_matches, " matches, ",num_mismatch," mismatches"))
writeLines("\nCovariance:")
writeLines(paste0(cov(df$x, df$y)))
}
}

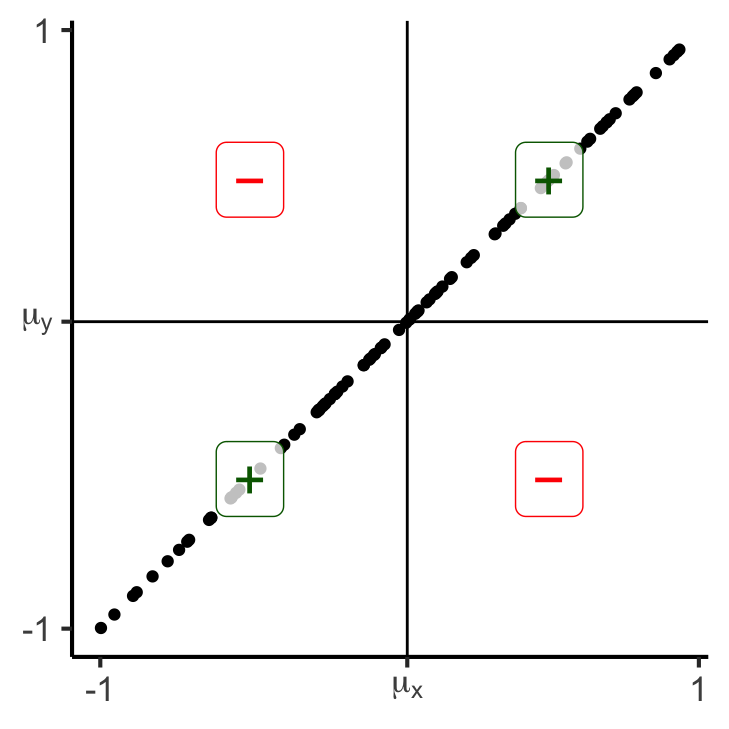

gen_cov_plot(df_collinear)
x- x+
y- 50 0
y+ 0 50100 matches, 0 mismatches
Covariance:
0.249739926690812
x- x+
y- 38 11
y+ 12 3977 matches, 23 mismatches
Covariance:
0.176773211271979Code

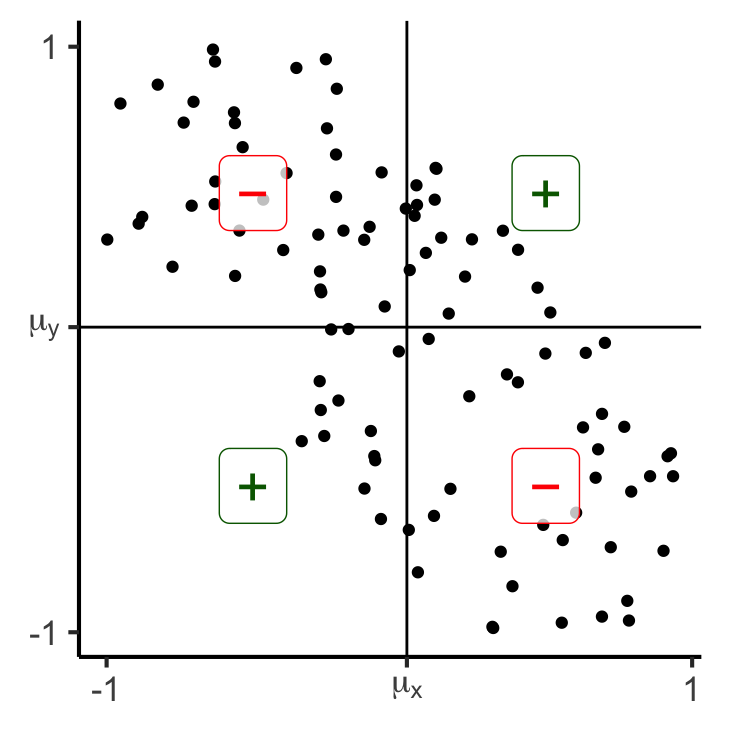

y_noisy_neg <- x_vals
for (i in 1:length(y_noisy_neg)) {
cur_x_val <- x_vals[i]
y_noisy_neg[i] <- -gen_y_noisy(cur_x_val, 0.75)
}
y_noisy_neg_mean <- mean(y_noisy_neg, na.rm = TRUE)
#print(y_noisy_mean)
df_noisy_neg <- tibble::tibble(x = x_vals, y = y_noisy_neg, rel="noise")
gen_cov_plot(df_noisy_neg)
x- x+
y- 13 34
y+ 37 1629 matches, 71 mismatches
Covariance:
-0.182286216712012Covariance: Intuition 2.0

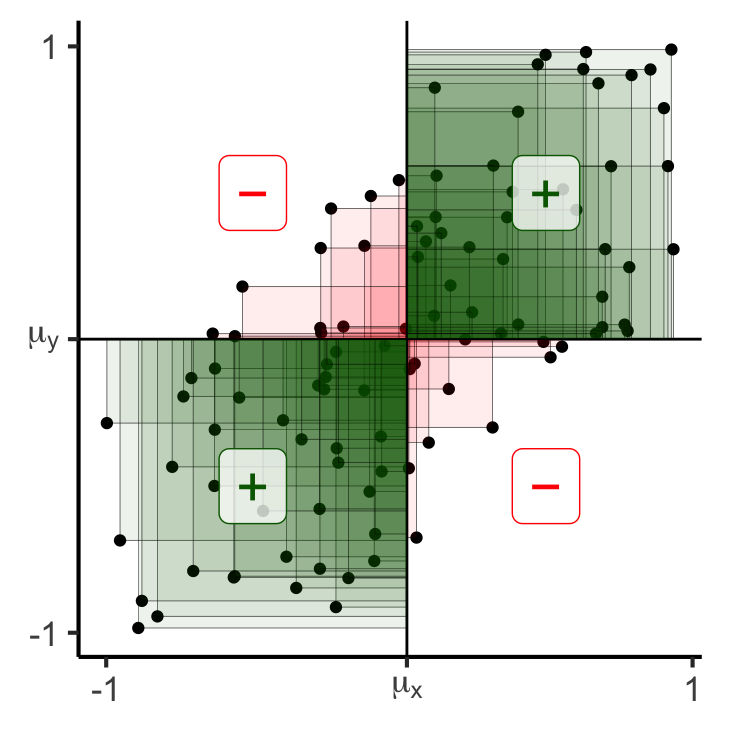

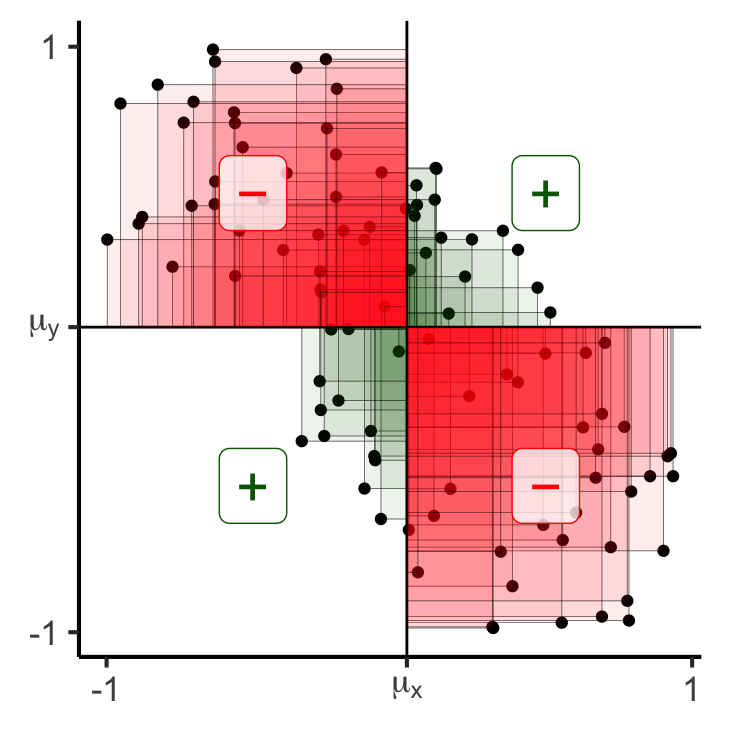

- Now, rather than just is this point above-right? (binary), let’s compute how above-right it is!:
Code
gen_rect_plot <- function(df, col_order=c("red","darkgreen")) {
x_mean = mean(df$x)
y_mean = mean(df$y)
df <- df |> mutate(
x_contrib = ifelse(x > x_mean, "+", "-"),
y_contrib = ifelse(y > y_mean, "+", "-"),
match = x_contrib == y_contrib
)
ggplot(df, aes(x=x, y=y)) +
geom_point() +
geom_vline(xintercept = x_mean) +
geom_hline(yintercept = y_mean) +
#facet_grid(. ~ rel) +
geom_rect(aes(xmin=x_mean, xmax=x, ymin=y_mean, ymax=y, fill=match), color='black', linewidth=0.1, alpha=0.075) +
scale_color_manual(values=c("darkgreen","red")) +
scale_fill_manual(values=col_order) +
geom_label(
data=label_df,
aes(x=x, y=y, label=label, color=label),
alpha=0.75,
size = g_pointsize * 1.5
) +
dsan_theme() +
remove_legend() +
theme(
#axis.text.x = element_blank(),
axis.title.x = element_blank(),
#axis.ticks.x = element_blank(),
#axis.text.y = element_blank(),
#axis.ticks.y = element_blank(),
axis.title.y = element_blank()
) +
xlim(c(-1,1)) + ylim(c(-1,1)) +
coord_fixed(ratio=1) +
scale_x_continuous(breaks=c(-1, x_mean, 1), labels=c("-1",TeX(r"($\mu_x$)"),"1")) +
scale_y_continuous(breaks=c(-1, y_mean, 1), labels=c("-1",TeX(r"($\mu_y$)"),"1"))
}

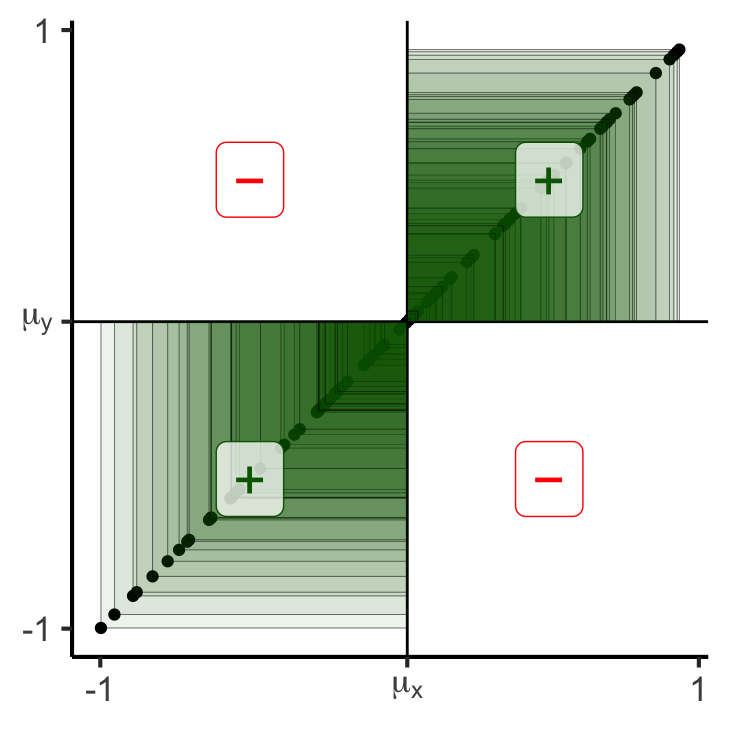

gen_rect_plot(df_collinear, col_order=c("darkgreen","red"))
x- x+
y- 50 0
y+ 0 50100 matches, 0 mismatches
Covariance:
0.249739926690812
x- x+
y- 38 11
y+ 12 3977 matches, 23 mismatches
Covariance:
0.176773211271979
Covariance: Intuition 3.0
- This means that if we break out of \([-1,1]\), covariance will grow even larger:
Code
# Label vals above and below mean
N <- 100
x_min_expanded <- -5
x_max_expanded <- 15
gen_y_noisy_expanded <- function(x_val, x_min, x_max, eps) {
lower <- max(x_min, x_val - eps)
upper <- min(x_max, x_val + eps)
y_noisy <- runif(1, lower, upper)
return(y_noisy)
}
x_vals_expanded <- runif(N, x_min_expanded, x_max_expanded)
x_mean_expanded <- mean(x_vals_expanded)
y_collinear_expanded <- x_vals_expanded
y_mean_collinear_expanded <- mean(y_collinear_expanded)
df_collinear_expanded <- tibble::tibble(x=x_vals_expanded, y=y_collinear_expanded, rel="collinear")
gen_rect_plot_expanded <- function(df, col_order=c("red","darkgreen")) {
x_mean <- mean(df$x)
x_mean_str <- sprintf("%.2f", x_mean)
x_mean_tex <- paste0("($\\mu_x = ",x_mean_str,"$)")
y_mean = mean(df$y)
y_mean_str <- sprintf("%.2f", y_mean)
y_mean_tex <- paste0("($\\mu_y = ",y_mean_str,"$)")
label_df_expanded <- tribble(
~x, ~y, ~label,
# Upper right
(x_mean + x_max_expanded) / 2, (y_mean + x_max_expanded) / 2, "+",
(x_min_expanded + x_mean) / 2, (x_min_expanded + y_mean) / 2, "+",
(x_mean + x_max_expanded) / 2, (x_min_expanded + y_mean) / 2, "\u2212",
(x_min_expanded + x_mean) / 2, (y_mean + x_max_expanded) / 2, "\u2212"
)
df <- df |> mutate(
x_contrib = ifelse(x > x_mean, "+", "-"),
y_contrib = ifelse(y > y_mean, "+", "-"),
match = x_contrib == y_contrib
)
ggplot(df, aes(x=x, y=y)) +
geom_point() +
geom_vline(xintercept = x_mean) +
geom_hline(yintercept = y_mean) +
#facet_grid(. ~ rel) +
geom_rect(aes(xmin=x_mean, xmax=x, ymin=y_mean, ymax=y, fill=match), color='black', linewidth=0.1, alpha=0.075) +
scale_color_manual(values=c("darkgreen","red")) +
scale_fill_manual(values=col_order) +
geom_label(
data=label_df_expanded,
aes(x=x, y=y, label=label, color=label),
alpha=0.75,
size = g_pointsize * 1.5
) +
dsan_theme() +
remove_legend() +
theme(
#axis.text.x = element_blank(),
axis.title.x = element_blank(),
#axis.ticks.x = element_blank(),
#axis.text.y = element_blank(),
#axis.ticks.y = element_blank(),
axis.title.y = element_blank()
) +
coord_fixed(ratio=1) +
xlim(c(x_min_expanded,x_max_expanded)) +
ylim(c(x_min_expanded,x_max_expanded)) +
scale_x_continuous(breaks=c(x_min_expanded, x_mean, x_max_expanded), labels=c("-5",TeX(x_mean_tex),"15")) +
scale_y_continuous(breaks=c(x_min_expanded, y_mean, x_max_expanded), labels=c("-5",TeX(y_mean_tex),"15"))
}

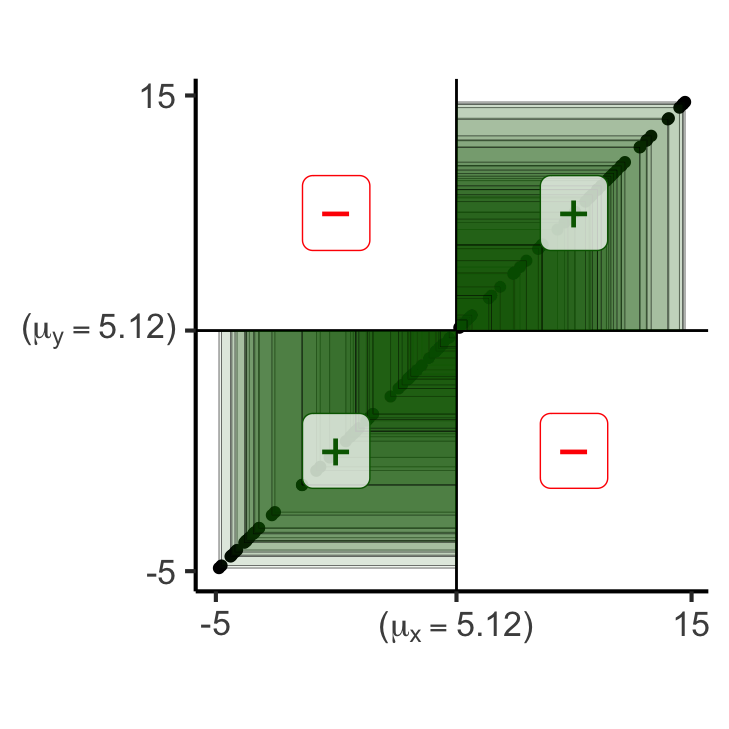

gen_rect_plot_expanded(df_collinear_expanded, col_order=c("darkgreen","red"))
x- x+
y- 50 0
y+ 0 50100 matches, 0 mismatches
Covariance:
34.2082173443672Code
# Force the points to be inside [-1,1]
y_noisy_expanded <- x_vals_expanded
for (i in 1:length(y_noisy_expanded)) {
cur_x_val_expanded <- x_vals_expanded[i]
y_noisy_expanded[i] <- gen_y_noisy_expanded(cur_x_val_expanded, x_min_expanded, x_max_expanded, 5)
}
y_noisy_expanded_mean <- mean(y_noisy_expanded, na.rm = TRUE)
#print(y_noisy_mean)
df_noisy_expanded <- tibble::tibble(x = x_vals_expanded, y = y_noisy_expanded, rel="noise")
gen_rect_plot_expanded(df_noisy_expanded)
x- x+
y- 42 7
y+ 8 4385 matches, 15 mismatches
Covariance:
28.2619112324438Code
gen_y_noisy_neg <- function(x_val, x_min, x_max, eps) {
lower <- max(x_min, x_val - eps)
upper <- min(x_max, x_val + eps)
y_noisy <- runif(1, lower, upper)
return(y_noisy)
}
y_noisy_neg_expanded <- x_vals_expanded
for (i in 1:length(y_noisy_neg_expanded)) {
cur_x_val_expanded <- x_vals_expanded[i]
#y_noisy_neg_expanded[i] <- x_mean_expanded - (gen_y_noisy_expanded(cur_x_val_expanded, x_min_expanded, x_max_expanded, 5) - x_mean_expanded)
y_noisy_neg_expanded[i] <- 10 - gen_y_noisy_expanded(cur_x_val_expanded, x_min_expanded, x_max_expanded, 5)
#y_noisy_neg_expanded[i] <- x_mean_expanded - (y_noisy_neg_expanded[i] - x_mean_expanded)
}
y_noisy_neg_expanded_mean <- mean(y_noisy_neg_expanded, na.rm = TRUE)
#print(y_noisy_mean)
df_noisy_neg_expanded <- tibble::tibble(x = x_vals_expanded, y = y_noisy_neg_expanded, rel="noise")
gen_rect_plot_expanded(df_noisy_neg_expanded)
x- x+
y- 10 44
y+ 40 616 matches, 84 mismatches
Covariance:
-27.8964403686282Distance Metrics
- One More Important Metric! Cosine Distance
\[ \begin{align*} &A = (5,0), B = (3,4) \\ &\implies \cos(A,B) = \frac{3}{5} \end{align*} \]
Plus new names for ones you already know!
“Levenshtein Distance”: Edit distance
“Chebyshev Distance”: \(L^{\infty}\)-norm, meaning, maximum absolute distance. In \(\mathbb{R}^2\):
\[ \begin{align*} &D((x_1,y_1),(x_2,y_2)) \\ &= \max\{ |x_2 - x_1|, |y_2 - y_1| \} \end{align*} \]
- “Minkowski Distance”: \(L^p\)-norm (Generalizes Euclidean, Manhattan, Min, and Max)
Entropy \(\rightarrow\) Distance
- Entropy (of one distribution): How uncertain are we about what we’re going to pull out of the bag?
- Think about:
- What exactly makes a boring {song,movie,book} boring?
- What makes an overwhelming/stressful {song,movie,book} overwhelming/stressful?
“Distance” Metrics on Distributions
- KL-Divergence (Non-symmetric!): \(\kl(P \parallel Q) \neq \kl(Q \parallel P)\)
- Not distance but relative entropy: how surprised were we to see \(P\) when we expected \(Q\)? How much information is lost when we approximate \(P\) with \(Q\)?
(Example from Count Bayesie Blog)
Uniform approximation

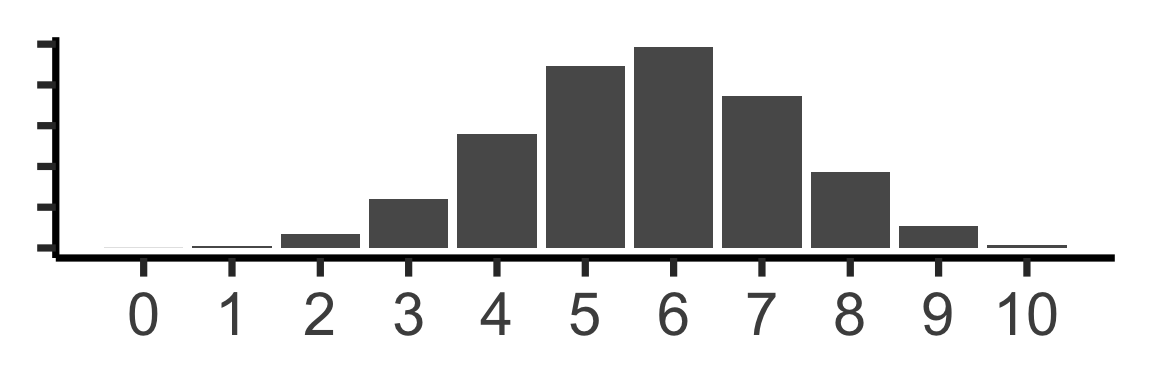

Binomial approximation
\(\mathcal{A} = \mathcal{U}\{0,10\}\)? \(\kl(\mathcal{O} \parallel \mathcal{A})=0.338\)
\(\text{Binom}(10,0.57)\)? \(\kl(\mathcal{O} \parallel \mathcal{B})=0.477\)

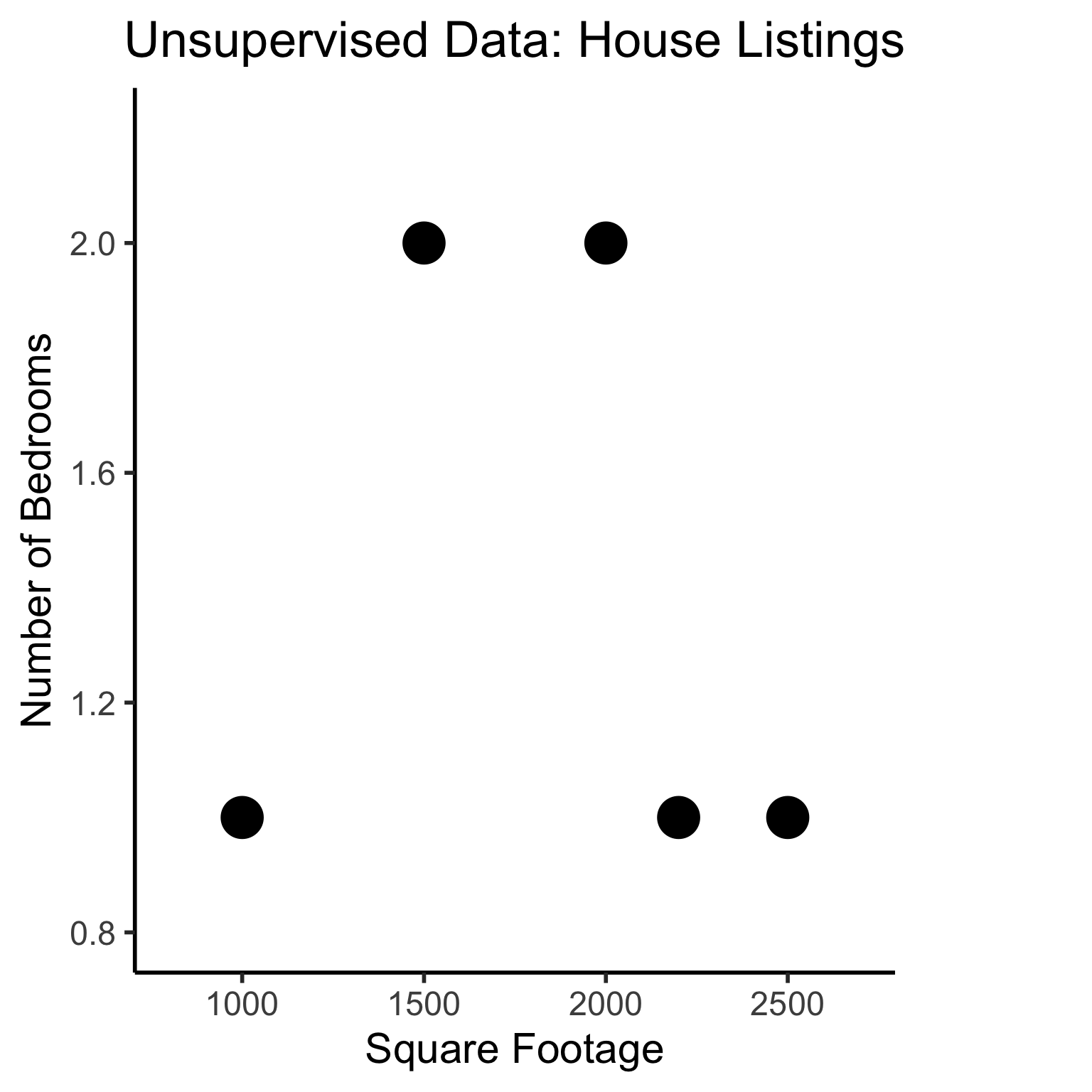

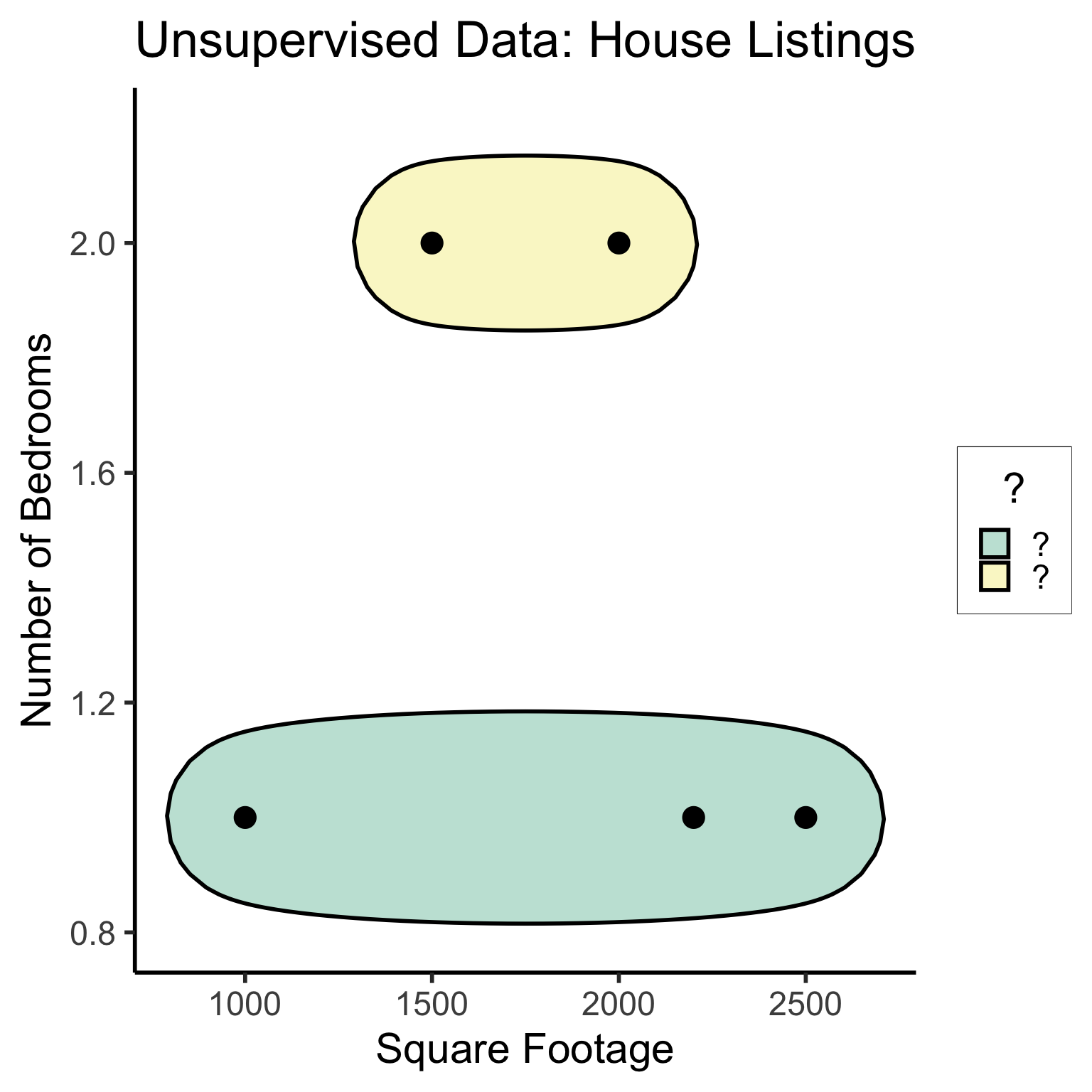

Dataset Structures: Visualized
Code
# To force a legend
unsup_grouped <- unsup_data %>% mutate(big=bedrooms > 1)
unsup_grouped[['big']] <- factor(unsup_grouped[['big']], labels=c("?1","?2"))
ggplot(unsup_grouped, aes(x=sqft, y=bedrooms, fill=big)) +
geom_point(size = g_pointsize * 2) +
labs(
x = "Square Footage",
y = "Number of Bedrooms",
fill = "?"
) +
dsan_theme("half") +
expand_limits(x=c(800,2700), y=c(0.8,2.2)) +
ggtitle("Unsupervised Data: House Listings") +
theme(legend.background = element_rect(fill="white", color="white"), legend.box.background = element_rect(fill="white"), legend.text = element_text(color="white"), legend.title = element_text(color="white"), legend.position = "right") +
scale_fill_discrete(labels=c("?","?")) +
#scale_color_discrete(values=c("white","white"))
scale_color_manual(name=NULL, values=c("white","white")) +
#scale_color_manual(values=c("?1"="white","?2"="white"))
guides(fill = guide_legend(override.aes = list(shape = NA)))

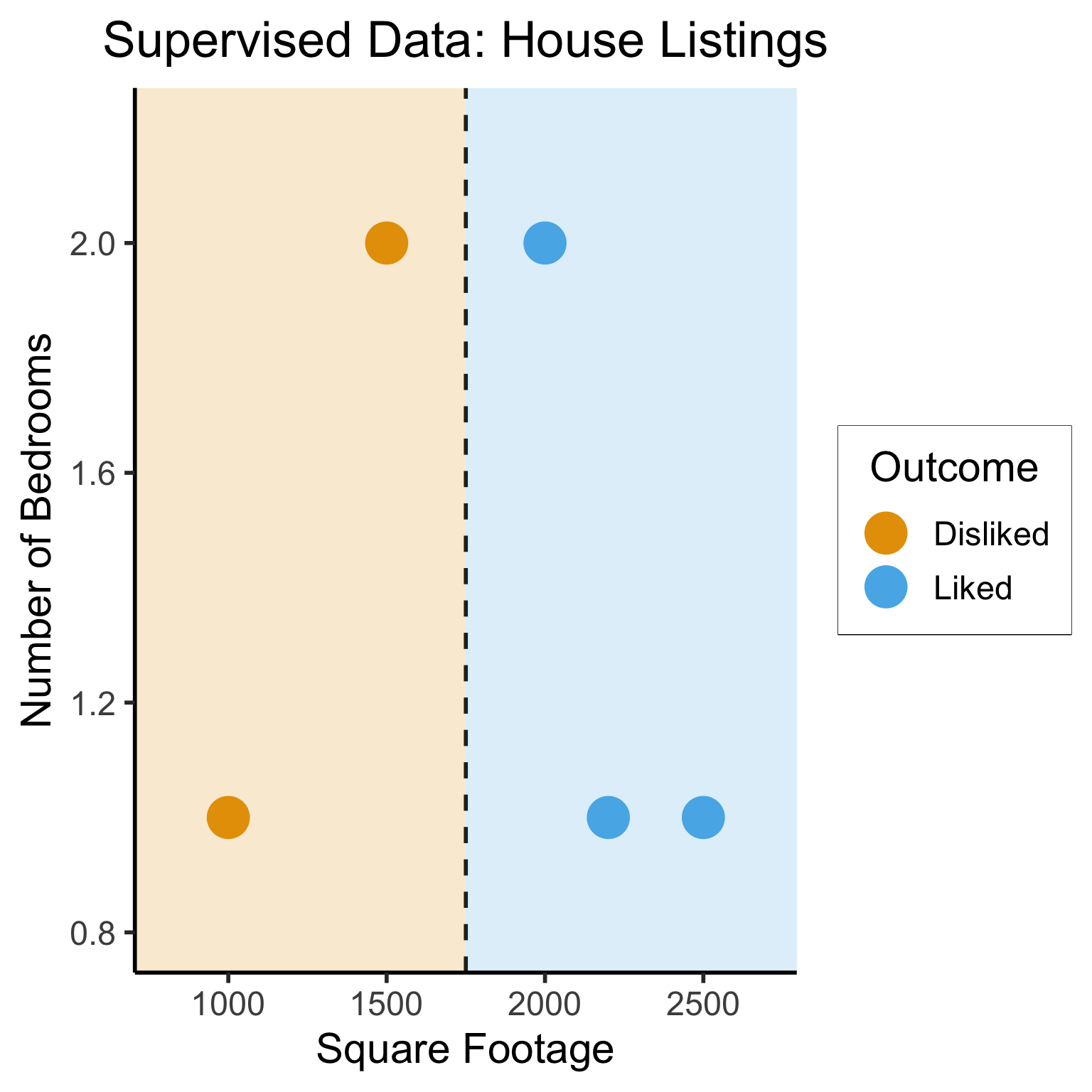

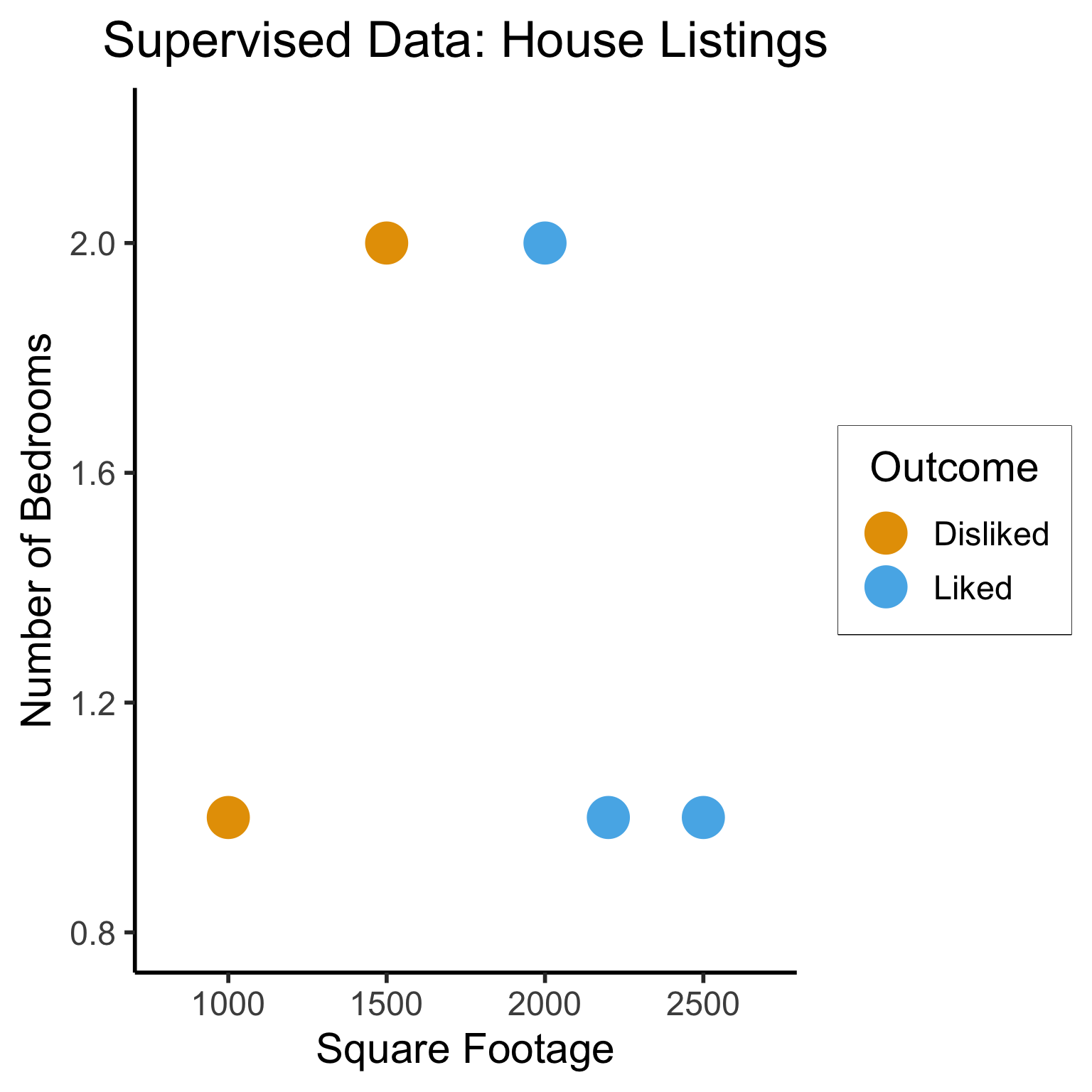

Different Goals
Code
ggplot(sup_data, aes(x=sqft, y=bedrooms, color=rating)) +
geom_point(size = g_pointsize * 2) +
labs(
title = "Supervised Data: House Listings",
x = "Square Footage",
y = "Number of Bedrooms",
color = "Outcome"
) +
dsan_theme("half") +
expand_limits(x=c(800,2700), y=c(0.8,2.2)) +
geom_vline(xintercept = 1750, linetype="dashed", color = "black", size=1) +
annotate('rect', xmin=-Inf, xmax=1750, ymin=-Inf, ymax=Inf, alpha=.2, fill=cbPalette[1]) +
annotate('rect', xmin=1750, xmax=Inf, ymin=-Inf, ymax=Inf, alpha=.2, fill=cbPalette[2])
Code
library(ggforce)
ggplot(unsup_grouped, aes(x=sqft, y=bedrooms)) +
#scale_color_brewer(palette = "PuOr") +
geom_mark_ellipse(expand=0.1, aes(fill=big), size = 1) +
geom_point(size=g_pointsize) +
labs(
x = "Square Footage",
y = "Number of Bedrooms",
fill = "?"
) +
dsan_theme("half") +
ggtitle("Unsupervised Data: House Listings") +
#theme(legend.position = "none") +
#theme(legend.title = text_element("?"))
expand_limits(x=c(800,2700), y=c(0.8,2.2)) +
scale_fill_manual(values=c(cbPalette[3],cbPalette[4]), labels=c("?","?"))
KNN In Pictures
Image credit: DataCamp tutorial
What is “Naïve” About It?
Guessing House Prices:
- If I tell you there’s a house, what is your guess for number of bathrooms it has?
- If I tell you the house is 50,000 sqft, does your guess go up?
Guessing Word Frequencies:
- If I tell you there’s a book, how often do you think the word “University” appears?
- Now if I tell you that the word “Stanford” appears 2,000 times, does your guess go up?
In Math
- Assume some email \(E\) with \(N = 5\) words, \(E = (w_1, w_2, w_3, w_4, w_5)\). Say \(E = (\texttt{you},\texttt{win},\texttt{a},\texttt{million},\texttt{dollars})\).
- We’re trying to classify \(S = \begin{cases}1 &\text{if spam} \\ 0 &\text{otherwise}\end{cases}\) given \(E\)
- Normal person (marine biologist?)1:
\[ \begin{align*} &\Pr(S = 1 \mid w_5 = \texttt{dollars}, w_4 = \texttt{million}) \\ &> \Pr(S = 1 \mid w_5 = \texttt{dollars}, w_4 = \texttt{octopus}) \end{align*} \]
- Naïve Bayes classifier:
\[ \Pr(S = 1 \mid w_5) \perp \Pr(S = 1 \mid w_4) \]
“Unreasonable Effectiveness”
- This must absolutely suck in practice, right?
