Week 8: Point Processes: Null Models, Clustering, and Regularity

PPOL 6805 / DSAN 6750: GIS for Spatial Data Science
Fall 2025

Class Sessions

Author

Affiliation

Jeff Jacobs

jj1088@georgetown.edu

Published

Wednesday, October 15, 2025

Open slides in new tab →

[Naïve] Spatial Autocorrelation

Where we left off: Location \(i\) has high value \(\implies\) locations near \(i\) more likely to have high values

Code

source("../dsan-globals/_globals.r")
set.seed(6805)
library(tidyverse) |> suppressPackageStartupMessages()
library(sf) |> suppressPackageStartupMessages()
library(spatstat) |> suppressPackageStartupMessages()
library(mdthemes) |> suppressPackageStartupMessages()
library(mapview) |> suppressPackageStartupMessages()
library(leaflet) |> suppressPackageStartupMessages()

Moran’s \(I\)

\[ I = \underset{\text{Inverse of Variance}}{\boxed{\frac{n}{\sum_{i=1}^{n}(y_i - \overline{y})^2}}} \frac {\overbrace{\sum_{i=1}^{n}\sum_{j=1}^{n}w_{ij}(y_i - \overline{y})(y_j - \overline{y})}^{\text{Weighted Covariance}}} {\underbrace{\sum_{i=1}^{n}\sum_{j=1}^{n}w_{ij}}_{\text{Normalize Weights}}} \]

\(I\) is Large when:
- \(y_i\) and \(y_j\) are neighbors: \(w_{ij}\), and
- \(y_i\) and \(y_j\) large at the same time: \((y_i - \overline{y})(y_j - \overline{y})\)

Local Indicators of Spatial Autocorrelation (LISA)

tldr: See how much a given location \(\mathbf{s}\) contributes to overall Moran’s \(I\)
Local Moran’s \(I\):

\[ I_i = \frac{y_i - \overline{y}}{S_i^2}\sum_{j=1}^{n}w_{ij}(y_j - \overline{y}) \]

Agenda for Point Patterns: Something “Noteworthy” is Happening if Pattern Unlikely to Arise Randomly Under CSR!

Less clustering than expected

Roughly expected amount of clustering under CSR

More clustering than expected

*Is this likely to arise under CSR?*
*But is it because of repulsion?*

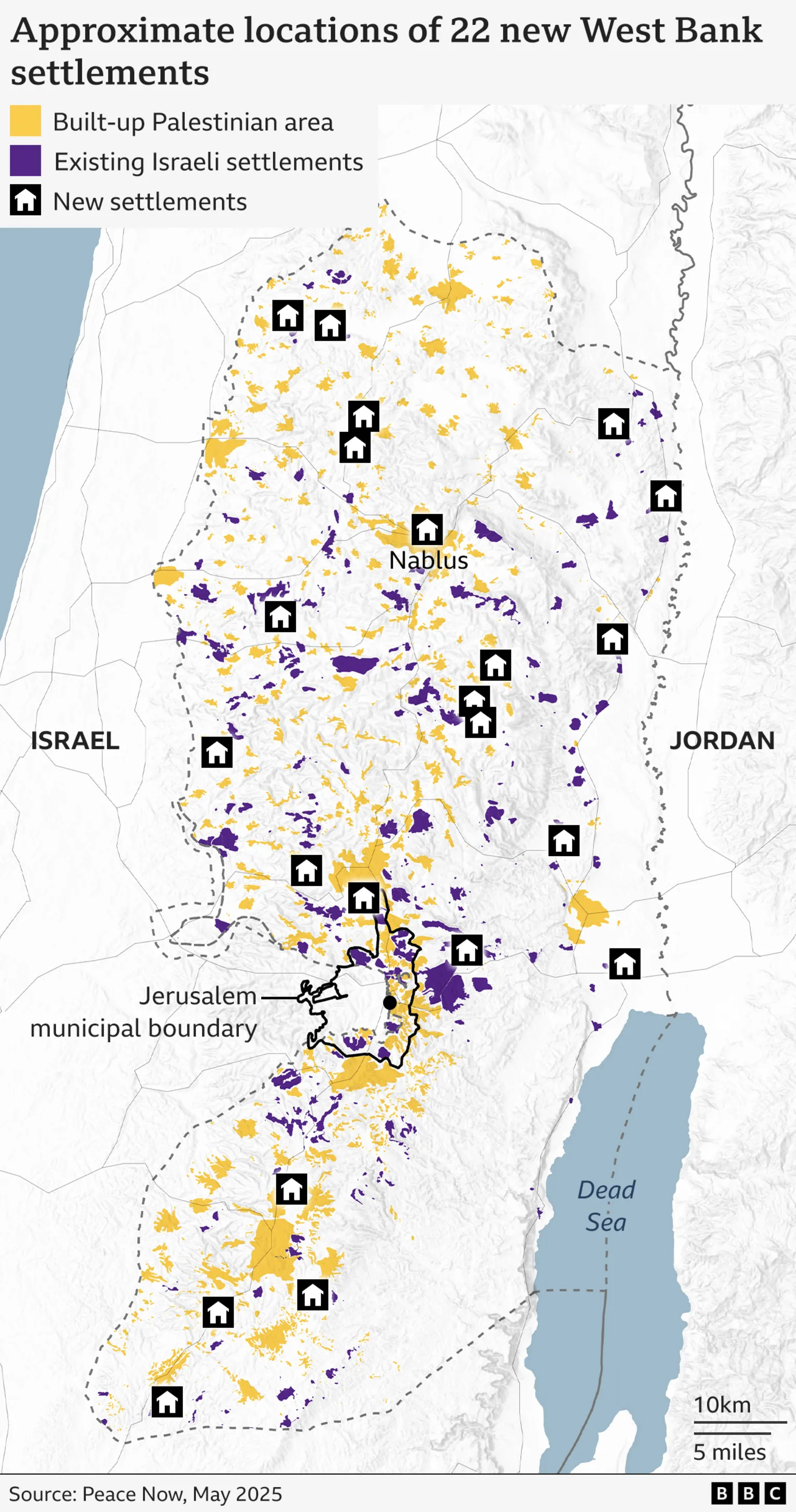

BBC, Aug 10 2025

*A pattern arising from CSR!*
(Realizations \(\omega_\triangle\) and \(\omega_\square\) from same \(D\))

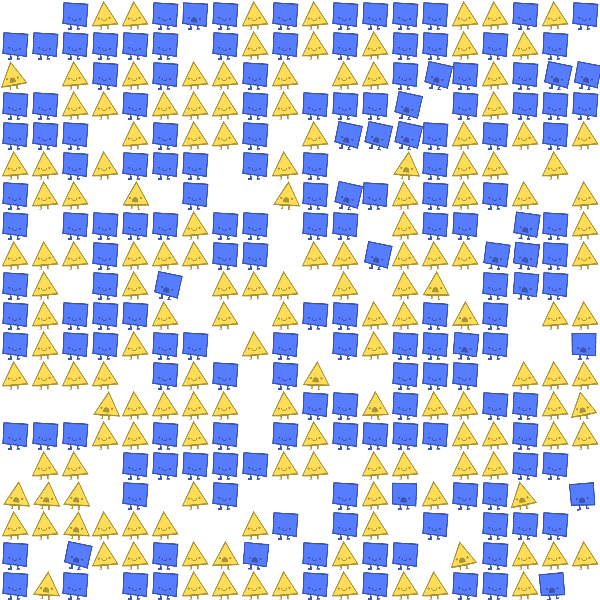

*From Parable of the Polygons*

*Is this likely to arise under CSR?*
Is it because of homophily?

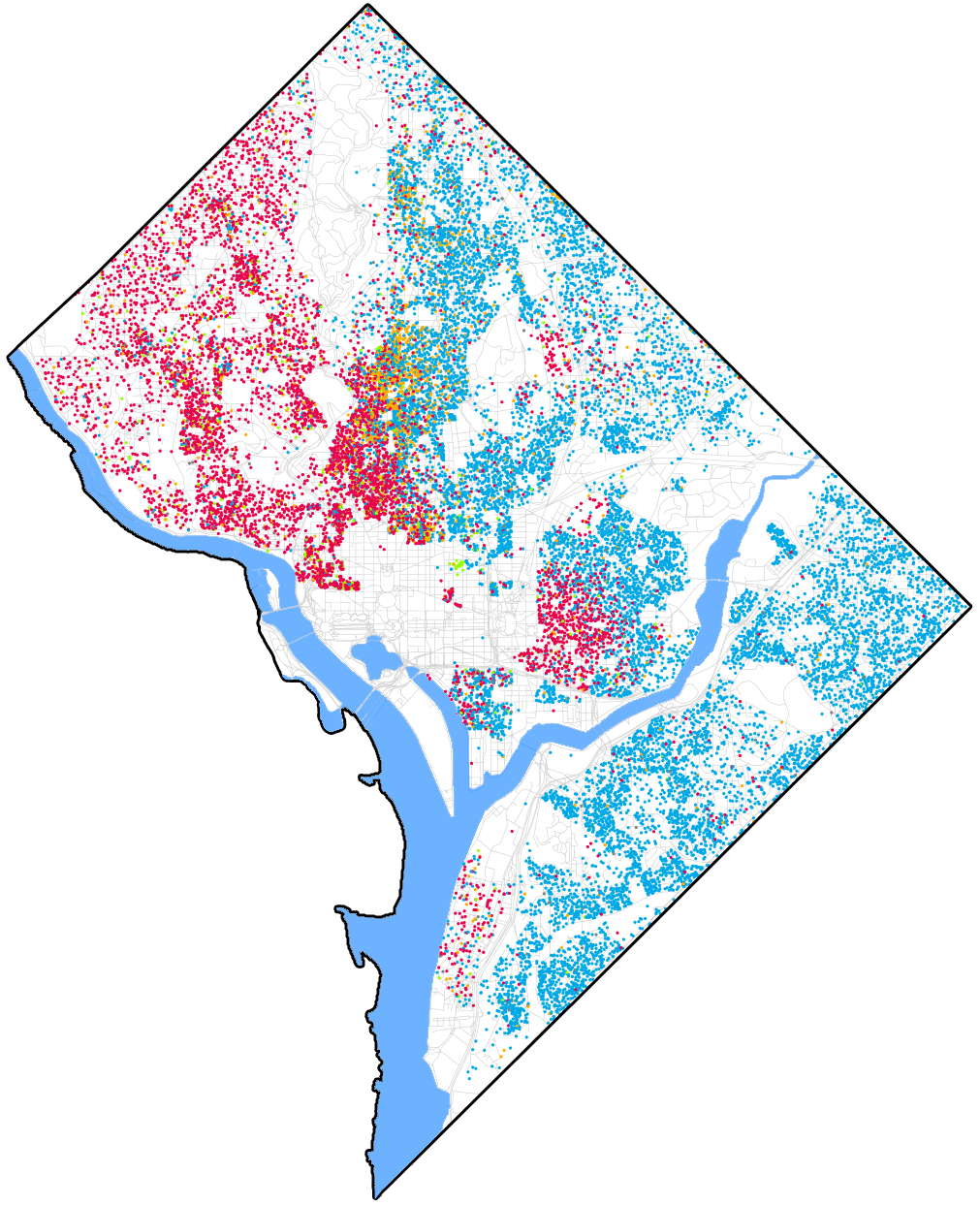

*(Realization \(\omega_1\) in red, \(\omega_2\) in blue)*

…Or, [Non-Human] Nature Examples

Namibian “Fairy Circles”; Smithsonian Magazine: *Namibia’s mysterious fairy circles may be competition 👀 between plants*

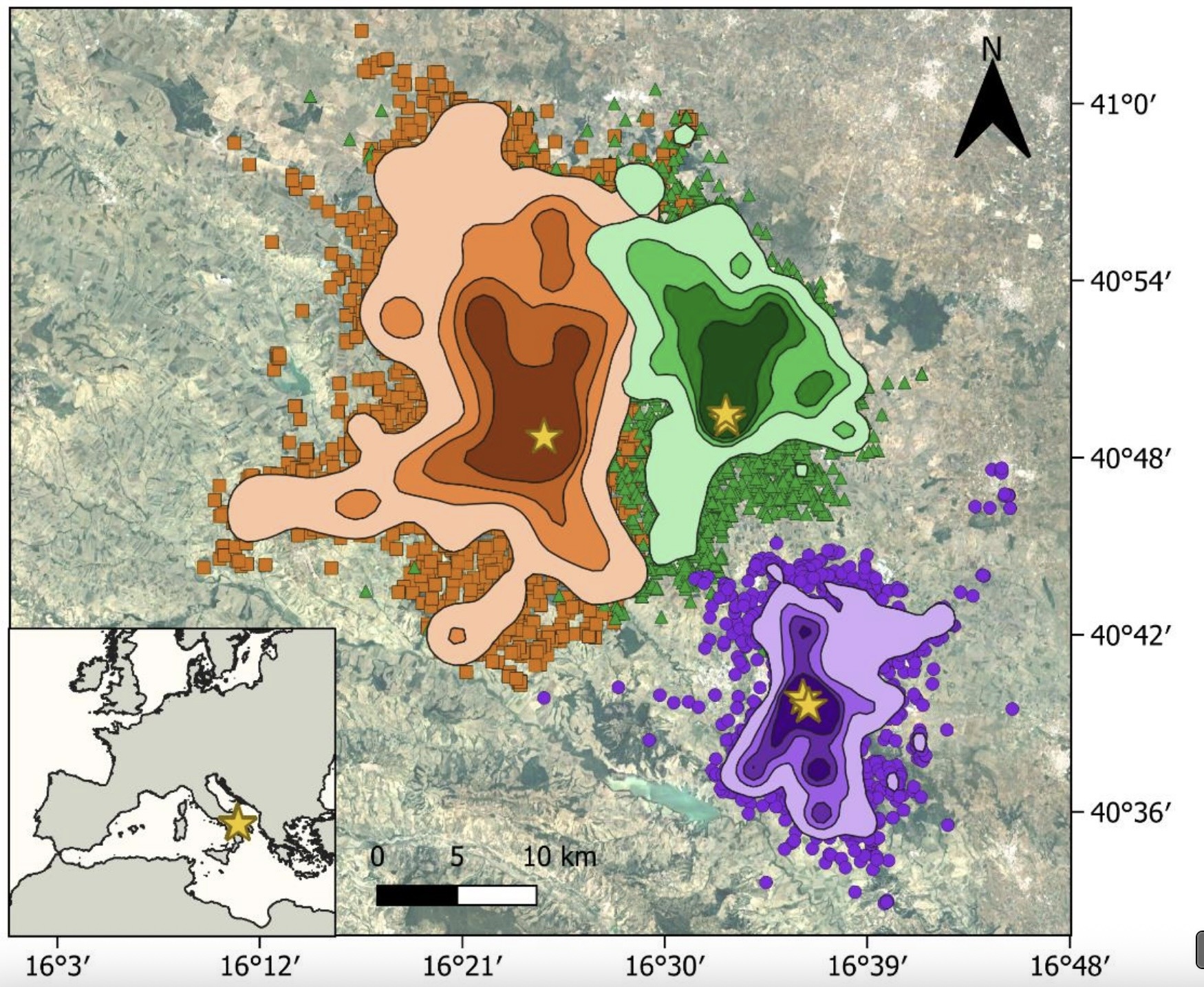

Three kestral (bird) colonies form a triangle straddling the Basilicata and Apulia regions of Italy; from Morinay et al. (2023)

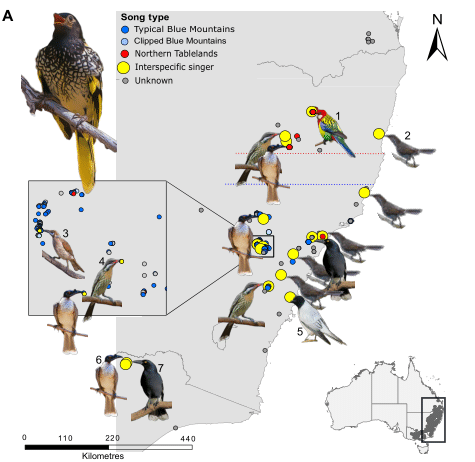

Spatial clustering of birdsongs; from Crates et al. (2021)

But, a Challenge…

Typically depends on context and/or level of resolution and/or level of analysis

Naïve Clustering

Weeks 8-9 (My labels)	Naïve Clustering	→	Point Process Models	→	Autocorrelation in Point Data	→	Autocorrelation in Lattice Data
Waller and Gotway (2004)	(A bunch of stuff we already learned)	→	Ch 5: Analysis of Spatial Point Patterns	→	Ch 6: Point Data (Cases and Controls)	→	Ch 7: Regional Count Data (First mention of autocorrelation on pg. 227)
Schabenberger and Gotway (2004)	Ch 1 (pg. 14): Autocorrelation	→	(A bunch of more complicated stuff we’ll learn at the end)

Why “Naïve”?

Regional data: easiest way to visualize / operationalize simple measures of clustering via spatial autocorrelation
So, we develop intuitions for measures like Moran’s \(I\) by looking at lattice data, but…
Naïve because we’re not modeling the lattice regions (cells) themselves!
Non-naïve clustering: Knowing the clusters but also what process led to their formation! Which brings us to…

…Point Process Models!

Our New Library: spatstat!
Homepage: spatstat.org
GitHub: github.com/spatstat
Book: Baddeley, Rubak, and Turner (2015) [Companion website]
PDF: here

Spatial Randomness

Code

library(tidyverse)
library(spatstat)
set.seed(6805)
N <- 60
r_core <- 0.05
obs_window <- square(1)
# Regularity via Inhibition
#reg_sims <- rMaternI(N, r=r_core, win=obs_window)
cond_reg_sims <- rSSI(r=r_core, N)
# CSR data
#csr_sims <- rpoispp(N, win=obs_window)
cond_sr_sims <- rpoint(N, win=obs_window)
### Clustered data
#clust_sims <- rMatClust(kappa=6, r=2.5*r_core, mu=10, win=obs_window)
#clust_sims <- rMatClust(mu=5, kappa=1, scale=0.1, win=obs_window, n.cond=N, w.cond=obs_window)
#clust_sims <- rclusterBKBC(clusters="MatClust", kappa=10, mu=10, scale=0.05, verbose=FALSE)
# Each cluster consist of 10 points in a disc of radius 0.2
nclust <- function(x0, y0, radius, n) {
    #print(n)
    return(runifdisc(10, radius, centre=c(x0, y0)))
}
cond_clust_sims <- rNeymanScott(kappa=5, expand=0.0, rclust=nclust, radius=2*r_core, n=10)
# And PLOT
plot_w <- 400
plot_h <- 400
plot_scale <- 2.25
cond_reg_plot <- cond_reg_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme()
ggsave("images/cond_reg.png", cond_reg_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
cond_sr_plot <- cond_sr_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme()
ggsave("images/cond_sr.png", cond_sr_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
cond_clust_plot <- cond_clust_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme()
ggsave("images/cond_clust.png", cond_clust_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)

Autocorrelation	\(I = -1\)	\(I = 0\)	\(I = 1\)
Description	Negative Autocorr	No Autocorr	Positive Autocorr
Event at \(\mathbf{s} = (x,y)\) Implies	Less likely to find another point nearby	No information about nearby points	More likely to find another point nearby
Resulting Pattern	Regularity	Reg/Clustered Mix	Clustering
Process(es) Which Could Produce Pattern	1st Order: Random within even-spaced grid 2nd Order: Competition	1st Order: i.i.d. points 2nd Order: i.i.d. distances	1st Order: Tasty food at clust centers 2nd Order: Cooperation
Fixed \(N\)	60	60	60
Problem with fixed \(N\): Learning there are \(n_1\) points in region \(R_1\) \(\Rightarrow\) there are \(N - n_1\) points outside \(R_1\)

Complete Spatial Randomness (CSR)

Code

library(tidyverse)
library(spatstat)
set.seed(6807)
lambda <- 60
r_core <- 0.05
obs_window <- square(1)
# Regularity via Inhibition
# Regularity via Inhibition
reg_sims <- rMaternI(lambda, r=r_core, win=obs_window)
# CSR data
csr_sims <- rpoispp(N, win=obs_window)
### Clustered data
clust_mu <- 10
clust_sims <- rMatClust(kappa=lambda / clust_mu, scale=2*r_core, mu=10, win=obs_window)
# And PLOT
plot_w <- 400
plot_h <- 400
plot_scale <- 2.25
reg_plot <- reg_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  labs(title=paste0("N = ",reg_sims$n)) +
  dsan_theme()
ggsave("images/reg.png", reg_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
csr_plot <- csr_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  labs(title=paste0("N = ",csr_sims$n)) +
  dsan_theme()
ggsave("images/csr.png", csr_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)
clust_plot <- clust_sims |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  labs(title=paste0("N = ",clust_sims$n)) +
  dsan_theme()
ggsave("images/clust.png", clust_plot, width=plot_w, height=plot_h, units="px", scale=plot_scale)

Autocorrelation	\(I = -1\)	\(I = 0\)	\(I = 1\)
Description	Negative Autocorr	No Autocorr	Positive Autocorr
Event at \(\mathbf{s} = (x,y)\) Implies	Less likely to find another point nearby	No information about nearby points	More likely to find another point nearby
Resulting Pattern	Regularity	Reg/Clustered Mix	Clustering
Process(es) Which Could Produce Pattern	1st Order: Random within even-spaced grid 2nd Order: Competition	1st Order: i.i.d. points 2nd Order: i.i.d. distances	1st Order: Tasty food at clust centers 2nd Order: Cooperation
Fixed Intensity \(\lambda\)	60	60	60
Random \(N\)

Caveat 1: Measures are Relative to Window of Observation

Same data can be spatially random within one window, clustered or regular in others!

Code

N <- 60
obs_window <- square(1)
window_scale <- 3.5
csr_sims_square <- rpoispp(N, win=obs_window)
# Triangular window
obs_window_tri <- st_sfc(st_polygon(list(
    matrix(c(0.3,0.1,0.7,0.1,0.5,0.5,0.3,0.1), byrow=TRUE, nrow=4)
)))
obs_window_geom <- st_sfc(st_linestring(
    matrix(c(0,0,1,0,1,1,0,1,0,0), byrow=TRUE, nrow=5)
))
csr_sims_tri <- ppp(csr_sims_square$x, csr_sims_square$y, window=as.owin(obs_window_tri))
tri_plot <- csr_sims_tri |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  dsan_theme("quarter");
ggsave("images/window_tri.png", tri_plot, width=plot_w, height=plot_h, units="px", scale=window_scale)
# Square window
square_plot <- csr_sims_square |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  geom_sf(data=obs_window_tri |> sf::st_boundary()) +
  dsan_theme("quarter")
ggsave("images/window_square.png", square_plot, width=plot_w, height=plot_h, units="px", scale=window_scale)
# Circular window
obs_window_disc <- st_sfc(st_point(c(1, 0.5))) |> st_buffer(1.2)
csr_sims_circ <- ppp(csr_sims_square$x, csr_sims_square$y, window=as.owin(obs_window_disc))
circ_plot <- csr_sims_circ |> sf::st_as_sf() |>
  ggplot() +
  geom_sf() +
  geom_sf(data=obs_window_geom) +
  dsan_theme("quarter")
ggsave("images/window_circ.png", circ_plot, width=plot_w, height=plot_h, units="px", scale=window_scale)

Regular	CSR	Clustered

Caveat 2: Summary Statistics Like \(I\) are Not Models!

Moran’s \(I\) is to GISers what a thermometer is to doctors
Measures symptoms; many possible underlying causes!
Need to ask why autocorrelation seems to be present!

[] Why Do Events Appear Where They Do?

Code

center_l_function <- function(x, ...) {
  if (!spatstat.geom::is.ppp(x) && !spatstat.geom::is.fv(x)) {
    stop("Please provide either ppp or fv object.")
  }
  if (spatstat.geom::is.ppp(x)) {
    x <- spatstat.explore::Lest(x, ...)
  }
  r <- x$r
  l_centered <- spatstat.explore::eval.fv(x - r)
  return(l_centered)
}
cond_clust_sf <- cond_clust_sims |> sf::st_as_sf()
pines_plot <- cond_clust_sf |>
  ggplot() +
  geom_sf() +
  theme_classic(base_size=12)
ggsave("images/pines.png", pines_plot)
# density() calls density.ppp() if the argument is a ppp object
den <- density(cond_clust_sims, sigma = 0.1)
#summary(den)
png("images/intensity_plot.png")
plot(den, main = "Intensity λ(s)")
contour(den, add = TRUE) # contour plot
dev.off()
# And Gest / Kest / Lest
# saveRDS(cond_clust_sims, "cond_clust_sims.rds")
pcf_result <- spatstat.explore::pcf.ppp(
  cond_clust_sims,
  divisor="d",
  stoyan=0.25,
  bw=0.05,
  r=seq(from=0.0, to=1.0, by=0.001)
)

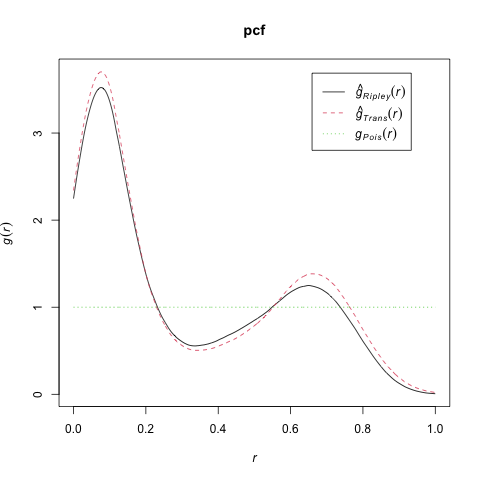

png("images/spatstat_pcf.png")
plot(pcf_result, xlim=c(0, 1), main="pcf")
dev.off()
# kest_result <- Kest(cond_clust_sims, rmax=0.5, correction="best")
# lest_result <- center_l_function(cond_clust_sims, rmax=0.5)
# png("images/lest.png")
# plot(lest_result, main="K(h)")
# dev.off()

	First-Order	Second-Order
	Events considered individually \(\Rightarrow\) Intensity function \(\lambda(\mathbf{s})\)	Events considered pairwise \(\Rightarrow\) Pairwise Correlation Function \(\textrm{pcf}(\vec{h})\)

The Tree-Grid Mystery

You’ve been hired as an archaeologist – congratulations! Your job: determine whether arrangement of trees formed:

Naturally, via a process of resource competition, or
Artificially, via an ancient civilization planting in a grid…

Two Possible Histories…

Hypothesis \(\mathcal{H}_{\textsf{Art}}\): Artificial Formation

Code (Step 1: Grid Creation)

ha_base <- 28
square_sf <- sf::st_as_sf(spatstat.geom::square(1))
grid_sf <- sf::st_as_sf(sf::st_make_grid(square_sf))
grid_buffer_sf <- grid_sf |> sf::st_buffer(dist=-0.01, singleSide = TRUE)
grid_buffer_sf |> ggplot() +
  geom_sf() +
  theme_classic(base_size=ha_base)

Code (Step 2: Point Generation)

grid_points <- sf::st_sample(grid_buffer_sf, size=rep(1,100))
grid_buffer_sf |> ggplot(aes(shape='Cell')) +
  geom_sf() +
  geom_sf(data=grid_points) +
  scale_shape_manual("Shape", values=c('Cell'=19)) +
  theme_classic(base_size=ha_base) +
  theme(
    legend.title = element_blank(),
    # legend.text = element_text(size=18)
  )

Code (Step 3: Observed Result)

grid_ppp <- as.ppp(grid_points, W=spatstat.geom::square(1))
grid_ppp |> sf::st_as_sf() |> ggplot() +
  geom_sf() +
  theme_classic(base_size=ha_base)

Hypothesis \(\mathcal{H}_{\textsf{Nat}}\): Natural Formation

Code (Step 1: Tree Generation)

hn_base <- 28
r <- 0.05
pois_ppp <- rpoispp(150)
pois_sf <- pois_ppp |> sf::st_as_sf()
pois_sf |> ggplot() +
  geom_sf() +
  theme_classic(base_size=hn_base)

Code (Step 2: Competition)

age <- runif(npoints(pois_ppp))
pair_dists <- pairdist(pois_ppp)
close <- (pair_dists < r)
later <- outer(age, age, ">")
killed <- apply(close & later, 1, any)
killed_ppp <- pois_ppp[killed]
alive_ppp <- pois_ppp[!killed]
pois_window_sf <- pois_ppp |> sf::st_as_sf() |> filter(label=="window")
pois_killed_sf <- killed_ppp |> sf::st_as_sf() |> filter(label=="point")
pois_alive_sf <- alive_ppp |> sf::st_as_sf() |> filter(label=="point")
alive_buff_sf <- pois_alive_sf |> sf::st_buffer(r) |> sf::st_union() |> sf::st_intersection(pois_window_sf)
ggplot() +
  geom_sf(data=pois_window_sf) +
  geom_sf(data=alive_buff_sf, aes(color='Inhibition', shape='Inhibition'), linetype='dashed') +
  geom_sf(data=pois_killed_sf, aes(color='Dead', shape='Dead'), size=2, stroke=2) +
  geom_sf(data=pois_alive_sf, aes(color='Alive', shape='Alive'), size=1, stroke=1) +
  scale_shape_manual(name=NULL, values=c("Alive"=19, "Dead"=4, 'Inhibition'=21), labels=c("Alive", "Dead", "Inhibition")) +
  scale_color_manual(name=NULL, values=c("Alive"="black", "Dead"=cb_palette[1], "Inhibition"="black"), labels=c("Alive", "Dead", "Inhibition")) +
  guides(shape=guide_legend(override.aes=list(fill = "white"))) +
  theme_classic(base_size = hn_base) +
  theme(plot.margin = unit(c(0,0,0,0), "cm"))

Code (Step 3: Observed Result)

alive_ppp |> sf::st_as_sf() |> ggplot() +
  geom_sf() +
  theme_classic(base_size=hn_base)

What Tools Do We Have for Distinguishing Between These Cases?

“First-Order” measures vs. “Second-Order” measures

Why Do Events Appear Where They Do?

Code

library(tidyverse)
library(spatstat)
set.seed(6809)
N <- 60
r_core <- 0.05
obs_window <- square(1)
### Clustered data
clust_ppp <- rMatClust(
  kappa=6,
  scale=r_core,
  mu=10
)
clust_sf <- clust_ppp |> sf::st_as_sf()
clust_plot <- clust_sf |>
  ggplot() +
  geom_sf(size=2) +
  theme_classic(base_size=18)
ggsave("images/clust_ppp.png", clust_plot, width=3, height=3)
# Intensity fn
clust_intensity <- density(clust_ppp, sigma = 0.1)
png("images/clust_intensity.png")
par(mar=c(0,0,0,2), las=2, oma=c(0,0,0,0), cex=2)
plot(clust_intensity, main=NULL)
contour(clust_intensity, add = TRUE)
dev.off()
### PCF
clust_pcf <- spatstat.explore::pcf(
  clust_ppp, divisor="d",
  r=seq(from=0.00, to=0.50, by=0.01)
)
clust_pcf_plot <- clust_pcf |> ggplot(aes(x=r, y=iso)) +
  geom_hline(yintercept=1, linetype='dashed', linewidth=1) +
  geom_area(color='black', fill=cb_palette[1], alpha=0.75) +
  scale_x_continuous(breaks=seq(from=0.0, to=1.0, by=0.1)) +
  labs(x="Distance", y="Density") +
  theme_classic(base_size=14)
ggsave("images/clust_pcf.png", clust_pcf_plot, width=3, height=3)

Original Data	First-Order	Second-Order
\(N = 60\) Events	Events modeled individually \(\Rightarrow\) Intensity Function \(\lambda(\mathbf{s})\)	Events modeled pairwise \(\Rightarrow\) Pairwise-Corr Function \(\textrm{pcf}(\vec{h})\)

What Do These Functions “Detect”?

Code (Fixed Points)

sq_base <- 16
sq_psize <- 2.5
obs_window <- square(1)
r0 <- 0.2
sq_df <- tibble::tribble(
  ~x, ~y,
  0.5-r0,0.5-r0,
  0.5+r0,0.5+r0,
  0.5-r0,0.5+r0,
  0.5+r0,0.5-r0
)
sq_sf <- sf::st_as_sf(
  sq_df,
  coords = c("x","y")
)
sq_ppp <- as.ppp(sq_sf, W=obs_window)
sq_ppp |> sf::st_as_sf() |> ggplot() +
  geom_sf(size=sq_psize) +
  theme_classic(base_size=sq_base)

Code

par(mar=c(0,0,0,2), las=2, oma=c(0,0,1,0))
sq_density <- density(sq_ppp)
plot(sq_density, main=NULL, xaxs='i', yaxs='i')
contour(sq_density, xaxs='i', yaxs='i', add = TRUE)

Code

### PCF
pcf_result <- spatstat.explore::pcf(
  sq_ppp,
  divisor="d",
  r=seq(from=0.00, to=0.8, by=0.01)
)
pcf_result |> ggplot(aes(x=r, y=iso)) +
  geom_hline(yintercept=1, linetype='dashed', linewidth=1.5) +
  geom_area(color='black', fill=cb_palette[1], alpha=0.75) +
  scale_x_continuous(breaks=seq(from=0.0, to=1.0, by=0.1)) +
  theme_classic(base_size=sq_base)

Code (CSR Points)

csr_ppp <- spatstat.random::rpoispp(
  lambda = 60,
  win=obs_window
)
csr_ppp |> sf::st_as_sf() |> ggplot() +
  geom_sf(size=sq_psize) +
  theme_classic(base_size=sq_base)

Code

par(
  mar=c(0,0,0,2),
  las=2,
  oma=c(0,0,1,0)
)
csr_density <- density(csr_ppp)
plot(csr_density, main=NULL, xaxs="i", yaxs="i")
contour(csr_density, xaxs="i", yaxs="i", add = TRUE, lwd=1.5)

Code

csr_pcf_result <- spatstat.explore::pcf(
  csr_ppp,
  divisor="d",
  r=seq(from=0.00, to=0.8, by=0.01)
)
csr_pcf_result |> ggplot(aes(x=r, y=iso)) +
  geom_hline(yintercept=1, linetype='dashed', linewidth=1.5) +
  geom_area(color='black', fill=cb_palette[1], alpha=0.75) +
  scale_x_continuous(breaks=seq(from=0.0, to=1.0, by=0.1)) +
  theme_classic(base_size=sq_base)

A Menagerie of Models

Open Interactive (WebR) Version

Poisson Point Processes (CSR)

spatstat.random::rpoispp(lambda, win)

\(N \sim \text{Pois}(\lambda)\)
For \(i \in \{1, \ldots, N\}\):
- Generate \(X_i, Y_i \sim \mathcal{U}(\texttt{win})\)

Code

sim_base <- 22
sim_psize <- 2
sim_xticks <- seq(from=0.0, to=1.0, by=0.2)
sim_yticks <- seq(from=0.0, to=1.0, by=0.2)
gen_pois_df <- function(num_sims=1) {
  pois_sims <- spatstat.random::rpoispp(
    lambda = 60, nsim=num_sims
  )
  return(tibble::as_tibble(pois_sims))
}
#pois_dfs <- gen_pois_df()
#pois_dfs |> head()
pois_sims <- spatstat.random::rpoispp(
  lambda = 60, nsim=3
)
to_sim_df <- function(cur_sim, sim_name) {
  cur_df <- tibble::as_tibble(cur_sim) |> mutate(sim=sim_name)
  return(cur_df)
}
combined_df <- imap(.x=pois_sims, .f=to_sim_df) |> bind_rows()
combined_df |> ggplot(aes(x=x, y=y)) +
  geom_point(size=sim_psize) +
  facet_wrap(vars(sim)) +
  coord_equal() +
  theme_classic(base_size=sim_base) +
  theme(panel.spacing.x = unit(2, "lines")) +
  scale_x_continuous(breaks=sim_xticks) +
  scale_y_continuous(breaks=sim_yticks)

Simple Sequential Inhibition (SSI)

spatstat.random::rSSI(r, n=Inf, giveup=1000, win)

\(\mathbf{S} = \varnothing\)
While not done:
- Generate \(\mathbf{E} = (X, Y) \sim \mathcal{U}(\texttt{win})\)
- Check if \(\mathbf{E}\) within r units of any existing point in \(\mathbf{S}\)
  - If it is, throw \(\mathbf{E}\) away. Otherwise, add \(\mathbf{E}\) to \(\mathbf{S}\)
- done=TRUE if \(\mathbf{S}\) has n points OR has been the same for giveup steps

Code

capture.output(ssi_sims <- spatstat.random::rSSI(
  r = 0.05, n=60, nsim=3
), file=nullfile())
combined_df <- imap(.x=ssi_sims, .f=to_sim_df) |> bind_rows()
combined_df |> ggplot(aes(x=x, y=y)) +
  geom_point(size=sim_psize) +
  facet_wrap(vars(sim)) +
  coord_equal() +
  theme_classic(base_size=24) +
  theme(panel.spacing.x = unit(3, "lines")) +
  scale_x_continuous(breaks=sim_xticks) +
  scale_y_continuous(breaks=sim_yticks)

Matérn Cluster Process

spatstat.random::rMatClust(kappa, scale, mu, win)

Docs

Generate \(K(\kappa)\) parent points via Poisson Point Process with intensity \(\lambda = \kappa\)
For each parent point \(\mathbf{s}_i \in \left\{\mathbf{s}_1, \ldots, \mathbf{s}_{K(\kappa)}\right\}\):
- Generate \(N(\mu)\) offspring points via Poisson Point Process with intensity \(\lambda = \mu\), distributed uniformly within a circle of radius scale centered at \(\mathbf{s}_i\)
Offspring points form the outcome (parent points are thrown away)

Code

matclust_sims <- rMatClust(
  kappa = 6,
  scale = 0.075,
  mu = 10,
  nsim = 3
)
matclust_df <- imap(.x=matclust_sims, .f=to_sim_df) |> bind_rows()
matclust_plot <- matclust_df |> ggplot(aes(x=x, y=y)) +
  geom_point(size=sim_psize) +
  facet_wrap(vars(sim), nrow=1) +
  coord_equal() +
  theme_classic(base_size=sim_base) +
  theme(panel.spacing.x = unit(2, "lines")) +
  scale_x_continuous(breaks=sim_xticks) +
  scale_y_continuous(breaks=sim_yticks)
matclust_plot

Matérn Inhibition Process (I and II)

spatstat.random::rMaternI(kappa, r, win)
spatstat.random::rMaternII(kappa, r, win)

`rMaternI()` [Docs]	`rMaternII()` [Docs]
Generate events \(\mathbf{S} = \{\mathbf{s}_1, \ldots, \mathbf{s}_{N(\lambda)}\}\) via Poisson point process with \(\lambda = \kappa\)	Generate events \(\mathbf{S} = \{\mathbf{s}_1, \ldots, \mathbf{s}_{N(\lambda)}\}\) via Poisson point process with \(\lambda = \kappa\), plus timestamp \(t_i \sim \mathcal{U}(0,1)\) for each \(\mathbf{s}_i\)
Delete all pairs of points \(\mathbf{s}_i\), \(\mathbf{s}_j\) for which \(\textsf{dist}(\mathbf{s}_i, \mathbf{s}_j) < \texttt{r}\)	For each pair of points \(\mathbf{s}_i\), \(\mathbf{s}_j\): if \(\textsf{dist}(\mathbf{s}_i, \mathbf{s}_j) < \texttt{r}\), delete the later point

Code

mI_sims <- rMaternI(
  kappa = 60, r = 0.075, nsim=2
)
mII_sims <- rMaternII(
  kappa = 60, r = 0.075, nsim=2
)
mI_combined_df <- imap(.x=mI_sims, .f=to_sim_df) |> bind_rows() |> mutate(sim=paste0("MI ",sim))
mII_combined_df <- imap(.x=mII_sims, .f=to_sim_df) |> bind_rows() |> mutate(sim=paste0("MII ",sim))
m_combined_df <- bind_rows(mI_combined_df, mII_combined_df)
m_plot <- m_combined_df |> ggplot(aes(x=x, y=y)) +
  geom_point(size=sim_psize) +
  facet_wrap(vars(sim), nrow=1) +
  coord_equal() +
  theme_classic(base_size=sim_base) +
  theme(panel.spacing.x = unit(2, "lines")) +
  scale_x_continuous(breaks=sim_xticks) +
  scale_y_continuous(breaks=sim_yticks)
m_plot

Cox Processes: Random Intensity → Random Events

spatstat.random::rLGCP(model, mu, param, win)
models=c("exponential", "gauss", "stable", "gencauchy", "matern")

Docs

Code

cox_pcol <- "black"
cox_bg <- "grey90"
cox_pch <- 21
# inhomogeneous LGCP with Gaussian covariance function
m <- as.im(function(x, y){
  5 - 1.5 * (x - 0.5)^2 + 2 * (y - 0.5)^2
}, W=owin())
lgcp_sims <- rLGCP("gauss", m, var=0.15, scale =0.5, nsim=3)

Warning: 32750 out of 65536 terms (50%) in FFT calculation of matrix square
root were negative, and were set to zero. Range: [-2.96, 1910]

Code

# lgcp_combined_df <- imap(.x=ssi_sims, .f=to_sim_df) |> bind_rows()
plot_lgcp <- function(lgcp_sim) {
  plot(attr(lgcp_sim, "Lambda"), main=NULL)
  points(lgcp_sim, col=cox_pcol, bg=cox_bg, pch=cox_pch)
}
par(mfrow=c(1,3), mar=c(0,0,0,2), oma=c(0,0,0,0), las=2)
nulls <- lapply(X=lgcp_sims, FUN=plot_lgcp)

HW3 Tips!

ppp Objects
Converting between ppp and sf
Plotting

`ppp` Objects

The main datatype used to represent Planar Point Patterns [spatstat book p. 41]
Unlike sf objects, which contain data+geometries for any desired collection of \(N\) entities, ppp objects are required to have at least an observation window!

sf Creation:

Code

tree_df <- tibble::tibble(lon=runif(100,0,1), lat=runif(100,0,1), age=runif(100,0,1))
tree_sf <- sf::st_as_sf(
  tree_df,
  coords = c('lon', 'lat')
)
tree_sf |> head(4)

age	geometry
0.8593935	POINT (0.5035446 0.05519595)
0.9770798	POINT (0.2606818 0.3874983)
0.9517643	POINT (0.5464588 0.8271631)
0.0592741	POINT (0.7999682 0.5852131)

ppp Creation:

Code

pois_ppp <- spatstat.random::rpoispp(
  lambda=100, win=spatstat.geom::square(1)
)
pois_ppp

Planar point pattern: 93 points
window: rectangle = [0, 1] x [0, 1] units

Code

attributes(pois_ppp)$names

[1] "window"     "n"          "x"          "y"          "markformat"

Code

pois_ppp$x |> head(4)

[1] 0.51779807 0.62213583 0.84467836 0.05354204

`ppp` \(\leftrightarrow\) `sf` Conversion

ppp to sf Conversion:

Code

pois_sf <- pois_ppp |> sf::st_as_sf()
pois_sf |> head(4)

label	geom
window	POLYGON ((0 0, 1 0, 1 1, 0 …
point	POINT (0.5177981 0.553718)
point	POINT (0.6221358 0.3933781)
point	POINT (0.8446784 0.8187611)

Code

library(mdthemes) |> suppressPackageStartupMessages()
pois_sf |> ggplot() +
  geom_sf(data=pois_sf |> filter(label=="window"), aes(fill='grey')) +
  geom_sf(data=pois_sf |> filter(label != "window"), aes(color='black')) +
  md_theme_classic(base_size=26) +
  scale_fill_manual(name=NULL, values=c("gray90"), labels=c("<span style='font-family: mono'>label == 'window'</span>")) +
  scale_color_manual(name=NULL, values=c("black"), labels=c("<span style='font-family: mono'>label == 'point'</span>")) +
  labs(title = "<span style='font-family: mono'>ppp</span> &rarr; <span style='font-family: mono'>sf</span> Result")

sf to ppp Conversion:

Code

square_sfc <- sf::st_polygon(list(
  matrix(c(0,0,1,0,1,1,0,1,0,0), nrow=5, byrow=TRUE)
)) |> sf::st_sfc()
tree_ppp <- as.ppp(
  sf::st_as_sfc(tree_sf),
  W=as.owin(square_sfc)
)
tree_ppp

Planar point pattern: 100 points
window: polygonal boundary
enclosing rectangle: [0, 1] x [0, 1] units

Code

tree_ppp_sf <- tree_ppp |> sf::st_as_sf()
tree_ppp_sf |> ggplot() +
  geom_sf(aes(fill='gray90')) +
  geom_sf(data=tree_ppp_sf |> filter(label != "window"), aes(color='black')) +
  md_theme_classic(base_size=26) +
  scale_fill_manual(name=NULL, values=c("gray90"), labels=c("<span style='font-family: mono'>tree_ppp$window</span>")) +
  scale_color_manual(name=NULL, values=c("black"), labels=c("<span style='font-family: mono'>tree_ppp${x,y}</span>")) +
  labs(
    title = "<span style='font-family: mono'>sf</span> &rarr; <span style='font-family: mono'>ppp</span> Result",
    x="<span style='font-family: mono'>tree_ppp$x</span>",
    y="<span style='font-family: mono'>tree_ppp$y</span>"
  ) +
  guides(fill = guide_legend(order = 1),
              color = guide_legend(order = 2))

References

Baddeley, Adrian, Ege Rubak, and Rolf Turner. 2015. Spatial Point Patterns: Methodology and Applications with R. CRC Press.

Crates, Ross, Naomi Langmore, Louis Ranjard, Dejan Stojanovic, Laura Rayner, Dean Ingwersen, and Robert Heinsohn. 2021. “Loss of Vocal Culture and Fitness Costs in a Critically Endangered Songbird.” Proceedings of the Royal Society B: Biological Sciences 288 (1947): 20210225.

Morinay, Jennifer, Louise Riotte-Lambert, Geert Aarts, Federico De Pascalis, Simona Imperio, Michelangelo Morganti, Carlo Catoni, et al. 2023. “Within-Colony Segregation of Foraging Areas: From Patterns to Processes.” Oikos 2023 (8): e09926.

Schabenberger, Oliver, and Carol A. Gotway. 2004. Statistical Methods for Spatial Data Analysis. CRC Press.

Waller, Lance A., and Carol A. Gotway. 2004. Applied Spatial Statistics for Public Health Data. John Wiley & Sons.

[Naïve] Spatial Autocorrelation

Moran’s \(I\)

Local Indicators of Spatial Autocorrelation (LISA)

Agenda for Point Patterns: Something “Noteworthy” is Happening if Pattern Unlikely to Arise Randomly Under CSR!

…Or, [Non-Human] Nature Examples

But, a Challenge…

Naïve Clustering

Why “Naïve”?

…Point Process Models!

Spatial Randomness

Complete Spatial Randomness (CSR)

Caveat 1: Measures are Relative to Window of Observation

Caveat 2: Summary Statistics Like \(I\) are Not Models!

[] Why Do Events Appear Where They Do?

The Tree-Grid Mystery

Two Possible Histories…

What Tools Do We Have for Distinguishing Between These Cases?

Why Do Events Appear Where They Do?

What Do These Functions “Detect”?

A Menagerie of Models

Poisson Point Processes (CSR)

Simple Sequential Inhibition (SSI)

Matérn Cluster Process

Matérn Inhibition Process (I and II)

Cox Processes: Random Intensity → Random Events

HW3 Tips!

ppp Objects

ppp \(\leftrightarrow\) sf Conversion

References

`ppp` Objects

`ppp` \(\leftrightarrow\) `sf` Conversion
