(DC minimum marriage age = 18)
Week 12: Causal Forests for Heterogeneous Treatment Effects
DSAN 5650: Causal Inference for Computational Social Science
Summer 2025, Georgetown University
Wednesday, August 6, 2025
Sensitivity Analysis 2: How Sensitive Are My Results to Omitted/Included Variable Bias?
- You probably know about omitted variable bias from previous classes / intuition… but, included variable bias?
- That’s right folks… colliders can be agents of chaos, laying waste to our best, most meticulously-planned-out models

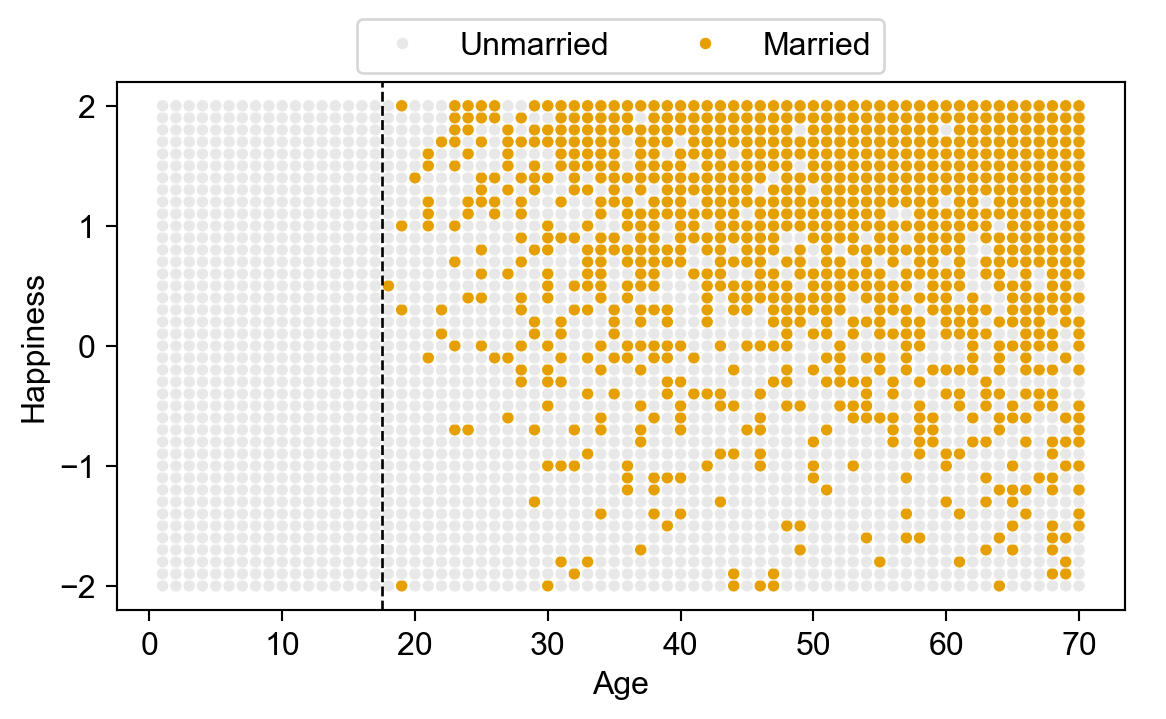

Does Aging Cause Sadness?
| Each year, 20 people are born with uniformly-distributed happiness values | |
| Each year, each person ages one year; Happiness does not change | |
| At age 18, individuals can become married; Odds of marriage each year proportional to individual's happiness; Once married, they remain married | |
| At age 70 individuals leave the sample (They move to Boca Raton, Florida) |
Code
import pandas as pd
import numpy as np
rng = np.random.default_rng(seed=5650)
import matplotlib.pyplot as plt
import seaborn as sns
cb_palette = ['#e69f00','#56b4e9','#009e73']
sns.set_palette(cb_palette)
import patchworklib as pw
from scipy.special import expit
# The original R code:
# sim_happiness <- function( seed=1977 , N_years=1000 , max_age=65 , N_births=20 , aom=18 ) {
# set.seed(seed)
# H <- M <- A <- c()
# for ( t in 1:N_years ) {
# A <- A + 1 # age existing individuals
# A <- c( A , rep(1,N_births) ) # newborns
# H <- c( H , seq(from=-2,to=2,length.out=N_births) ) # sim happiness trait - never changes
# M <- c( M , rep(0,N_births) ) # not yet married
# # for each person over 17, chance get married
# for ( i in 1:length(A) ) {
# if ( A[i] >= aom & M[i]==0 ) {
# M[i] <- rbern(1,inv_logit(H[i]-4))
# }
# }
# # mortality
# deaths <- which( A > max_age )
# if ( length(deaths)>0 ) {
# A <- A[ -deaths ]
# H <- H[ -deaths ]
# M <- M[ -deaths ]
# }
# }
# d <- data.frame(age=A,married=M,happiness=H)
# return(d)
# DGP: happiness -> marriage <- age
years = 70
num_births = 41
colnames = ['age','a','h','m']
sim_dfs = []
A = np.zeros(shape=(num_births,1))
H = np.linspace(-2, 2, num=num_births)
M = np.zeros(shape=(num_births,1))
def update_m(row):
if row['m'] == 0:
return int(rng.binomial(
n=1,
p=expit(row['h'] - 3.875),
size=1,
))
return 1
def sim_cohort_to(max_age):
sim_df = pd.DataFrame({
'age': [1 for _ in range(num_births)],
'h': np.linspace(-2, 2, num=num_births),
'm': [0 for _ in range(num_births)],
}
)
for t in range(2, max_age + 1):
sim_df['age'] = sim_df['age'] + 1
if t >= 18:
sim_df['m'] = sim_df.apply(update_m, axis=1)
return sim_df
all_sim_dfs = []
for cur_max_age in range(1, 71):
cur_sim_df = sim_cohort_to(cur_max_age)
all_sim_dfs.append(cur_sim_df)
full_sim_df = pd.concat(all_sim_dfs)
# full_sim_df.head()
cbg_palette = ['#c6c6c666'] + cb_palette
full_sim_df['m_label'] = full_sim_df['m'].apply(lambda x: "Unmarried" if x == 0 else "Married")
full_sim_df = full_sim_df.rename(columns={'age': 'Age', 'h': 'Happiness'})
ax = pw.Brick(figsize=(5.25,2.75));
sns.scatterplot(
x='Age', y='Happiness', hue='m_label',
data=full_sim_df,
ax=ax,
palette=cbg_palette,
s=22,
legend=True,
);
ax.move_legend("upper center", bbox_to_anchor=(0.5, 1.15), ncol=2);
ax.legend_.set_title("");
ax.axvline(x=17.5, color='black', ls='dashed', lw=1);
ax.savefig()

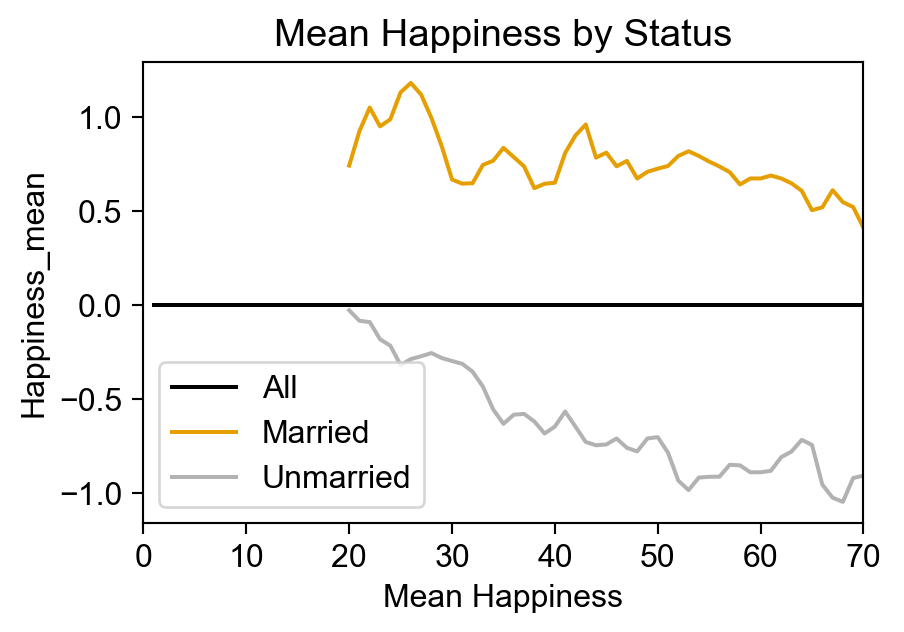

mean_hap_df = full_sim_df.groupby('Age')['Happiness'].mean().reset_index()
mean_hap_df['m_label'] = "All"
mean_hap_df['Happiness_mean'] = 0
group_hap_df = full_sim_df[full_sim_df['Age'] >= 18].groupby(['Age','m_label'])['Happiness'].mean().reset_index()
married_df = group_hap_df[group_hap_df['m_label'] == "Married"].copy()
unmarried_df = group_hap_df[group_hap_df['m_label'] == "Unmarried"].copy()
# Moving averages
win_size = 3
married_df['Happiness_mean'] = married_df['Happiness'].rolling(window=win_size).mean()
unmarried_df['Happiness_mean'] = unmarried_df['Happiness'].rolling(window=win_size).mean()
# Merge back together
combined_df = pd.concat([mean_hap_df, married_df, unmarried_df], ignore_index=True)
# display(combined_df.tail())
ax = pw.Brick(figsize=(3.75,2.4));
ax.set_xlim(0, 70);
# ax.set_ylim(-1.2, 1.2);
cbg_palette = ['black', cb_palette[0], '#b2b2b2ff']
# And plot
sns.lineplot(
x='Age', y='Happiness_mean',
hue='m_label',
# marker=".",
# s=20,
data=combined_df,
palette=cbg_palette,
# color=cbg_palette[0],
# order=3,
ax=ax
);
ax.set_title("Mean Happiness by Status");
ax.legend_.set_title("");
ax.set_xlabel("Mean Happiness");
ax.savefig()(DC minimum marriage age = 18)
…What’s happening here?
\(\textsf{Happy} \rightarrow {}^{🤔}\textsf{Marriage}^{🤔} \leftarrow \textsf{Age}\)
The Classical OVB Equation
- Remember that \(D\) is our treatment variable! (\(\mathbf{X}\) = covariates, \(Y\) = outcome)
- In a perfect world, we would estimate \(Y = \hat{\tau}D + \mathbf{X} \hat{\beta} + \hat{\gamma}Z+ \varepsilon_{\text{full}}\)
- But, \(Z\) is unobserved \(\leadsto\) “restricted” model \(Y = \hat{\tau}_{\text{res}}D + \mathbf{X} \hat{\beta}_{\text{res}} + \varepsilon_{\text{res}}\)
- What is the “gap” between \(\hat{\tau}\) and \(\hat{\tau}^{\text{res}}\)? \(\text{OVB} = \hat{\tau}_{\text{res}} - \hat{\tau}\)
\[ \begin{align*} \hat{\tau}_{\text{res}} &= \frac{ \text{Cov}[D^{\top \mathbf{X}}, Y^{\top \mathbf{X}}] }{ \text{Var}[D^{\top \mathbf{X}}] } \\ &= \frac{ \text{Cov}[D^{\top \mathbf{X}}, \hat{\tau}D^{\top \mathbf{X}} + \hat{\gamma}Z^{\top \mathbf{X}}] }{ \text{Var}[D^{\top \mathbf{X}}] } \\ &= \hat{\tau} + \hat{\gamma}\frac{ \text{Cov}[D^{\top \mathbf{X}}, Z^{\top \mathbf{X}}] }{ \text{Var}[D^{\top \mathbf{X}}] } \\ &= \hat{\tau} + \hat{\gamma}\hat{\delta} \\ \implies \text{OVB} &= \hat{\tau}_{\text{res}} - \hat{\tau} = \overbrace{ \boxed{\hat{\gamma} \times \hat{\delta}} }^{\mathclap{\text{Impact} \, \times \, \text{Imbalance}}} \end{align*} \]
More Generally
- What if we don’t have a specific omitted variable in mind? We just want to know the expected impact if there were omitted vars… Enter “Partial \(R^2\)”
