Week 8: Support Vector Machines

DSAN 5300: Statistical Learning
Spring 2025, Georgetown University

Class Sessions
Author
Affiliation

Jeff Jacobs

jj1088@georgetown.edu

Published

Monday, March 10, 2025

Open slides in new tab →

Schedule

Today’s Planned Schedule:

Start End Topic
Lecture 6:30pm 7:00pm Separating Hyperplanes →
7:00pm 7:20pm Max-Margin Classifiers →
7:20pm 8:00pm Support Vector Classifiers →
Break! 8:00pm 8:10pm
8:10pm 9:00pm Support Vector Machines →

Quick Roadmap

  • Weeks 1-7: Regression was central motivating problem
    • (Even when we looked at classification via Logistic Regression, it was regression and then a final thresholding step on the regression result)
  • This Week:
    • On the one hand, we shift focus to binary classification through learning decision boundaries
    • On the other hand, everything we’ve discussed about handling non-linearity will come into play!

Decision Boundaries \(\leadsto\) Max-Margin Classifiers

  • Most important building block for SVMs…
  • But should not be used on its own! For reasons we’ll see shortly
    • (Like “Linear Probability Models” or “Quadratic Splines”, MMCs highlight problem that [usable method] solves!)
  • MMC \(\leadsto\) Support Vector Classifiers (can be used)
  • MMC \(\leadsto\) Support Vector Machines (can be used)

Learning Decision Boundaries

  • How can we get our computer to “learn” which houses I like?
Code
library(tidyverse) |> suppressPackageStartupMessages()
house_df <- tibble::tribble(
  ~sqm, ~yrs, ~Rating,
  10, 5, "Disliked",
  10, 20, "Disliked",
  20, 22, "Liked",
  25, 12, "Liked",
  11, 15, "Disliked",
  22.1, 5, "Liked"
) |> mutate(
  label = ifelse(Rating == "Liked", 1, -1)
)
base_plot <- house_df |> ggplot(aes(x=sqm, y=yrs)) +
  labs(
    title = "Jeff's House Search",
    x = "Square Meters",
    y = "Years Old"
  ) +
  expand_limits(x=c(0,25), y=c(0,25)) +
  coord_equal() +
  # 45 is minus sign, 95 is em-dash
  scale_shape_manual(values=c(95, 43)) +
  theme_dsan(base_size=14)
base_plot +
  geom_point(
    aes(color=Rating, shape=Rating), size=g_pointsize * 0.9,
    stroke=6
  ) +
  geom_point(aes(fill=Rating), color='black', shape=21, size=6, stroke=0.75, alpha=0.333)

  • Naïve idea: Try random lines (each forming a decision boundary), pick “best” one
Code
set.seed(5300)
is_separating <- function(beta_vec) {
  beta_str <- paste0(beta_vec, collapse=",")
  # print(paste0("is_separating: ",beta_str))
  margins <- c()
  for (i in 1:nrow(house_df)) {
    cur_data <- house_df[i,]
    # print(cur_data)
    linear_comb <- beta_vec[1] + beta_vec[2] * cur_data$sqm + beta_vec[3] * cur_data$yrs
    cur_margin <- cur_data$label * linear_comb
    # print(cur_margin)
    margins <- c(margins, cur_margin)
  }
  #print(margins)
  return(all(margins > 0) | all(margins < 0))
}
cust_rand_lines_df <- tribble(
  ~b0, ~b1, ~b2,
  # 41, -0.025, -1,
  165, -8, -1,
  -980, 62, -1
) |> mutate(
  slope=-(b1/b2),
  intercept=-(b0/b2)
)
num_lines <- 20
rand_b0 <- runif(num_lines, min=-40, max=40)
rand_b1 <- runif(num_lines, min=-2, max=2)
# rand_b2 <- -1 + 2*rbernoulli(num_lines)
rand_b2 <- -1
rand_lines_df <- tibble::tibble(
  id=1:num_lines,
  b0=rand_b0,
  b1=rand_b1,
  b2=rand_b2
) |> mutate(
  slope=-(b1/b2),
  intercept=-(b0/b2)
)
rand_lines_df <- bind_rows(rand_lines_df, cust_rand_lines_df)
# Old school for loop
for (i in 1:nrow(rand_lines_df)) {
  cur_line <- rand_lines_df[i,]
  cur_beta_vec <- c(cur_line$b0, cur_line$b1, cur_line$b2)
  cur_is_sep <- is_separating(cur_beta_vec)
  rand_lines_df[i, "is_sep"] <- cur_is_sep
}
base_plot +
  geom_abline(
    data=rand_lines_df, aes(slope=slope, intercept=intercept), linetype="dashed"
  ) +
  geom_point(
    aes(color=Rating, shape=Rating), size=g_pointsize * 0.9,
    stroke=6
  ) +
  geom_point(aes(fill=Rating), color='black', shape=21, size=6, stroke=0.75, alpha=0.333) +
  labs(
    title = paste0("10 Boundary Guesses"),
    x = "Square Meters",
    y = "Years Old"
  )

(…Which one is “best”?)

Separating Hyperplanes

  • Any line which perfectly separates positive from negative cases is a separating hyperplane
Code
base_plot +
  geom_abline(
    data=rand_lines_df, aes(slope=slope, intercept=intercept, linetype=is_sep)
  ) +
  geom_abline(
    data=rand_lines_df |> filter(is_sep),
    aes(slope=slope, intercept=intercept),
    linewidth=3, color=cb_palette[4], alpha=0.333
  ) +
  scale_linetype_manual("Separating?", values=c("dotted", "dashed")) +
  geom_point(
    aes(color=Rating, shape=Rating), size=g_pointsize * 0.9,
    stroke=6
  ) +
  geom_point(aes(fill=Rating), color='black', shape=21, size=6, stroke=0.75, alpha=0.333) +
  labs(
    title = paste0("The Like vs. Dislike Boundary: 10 Guesses"),
    x = "Square Meters",
    y = "Years Old"
  )

  • Why might the left line be better? (Think of DGP!)

Max-Margin Hyperplanes

  • Among the two, left hyperplane establishes a larger margin between the two classes!
  • Margin (of hyperplane) = Smallest distance to datapoint (Think of hyperplane as middle of separating slab: how wide is the slab?)
  • Important: Note how margin is not the same as average distance!
Code
sep_lines_df <- rand_lines_df |> filter(is_sep) |> mutate(
  norm_slope = (-1)/slope
)
cur_line_df <- sep_lines_df |> filter(slope > 0)
# left_line_df
# And make one copy per point
cur_sup_df <- uncount(cur_line_df, nrow(house_df))
cur_sup_df <- bind_cols(cur_sup_df, house_df)
cur_sup_df <- cur_sup_df |> mutate(
  norm_intercept = yrs - norm_slope * sqm,
  margin_intercept = yrs - slope * sqm,
  margin_intercept_gap = intercept - margin_intercept,
  margin_intercept_inv = intercept + margin_intercept_gap,
  norm_cross_x = -(norm_intercept - intercept) / (norm_slope - slope),
  x_gap = norm_cross_x - sqm,
  norm_cross_y = yrs + x_gap * norm_slope,
  vec_margin = label * (b0 + b1 * sqm + b2 * yrs),
  is_sv = vec_margin <= 240
)
base_plot +
  geom_abline(
    data=cur_line_df, aes(slope=slope, intercept=intercept), linetype="solid"
  ) +
  geom_abline(
    data=cur_sup_df |> filter(is_sv),
    aes(
      slope=slope,
      intercept=margin_intercept
    ),
    linetype="dashed"
  ) +
  geom_abline(
    data=cur_sup_df |> filter(is_sv),
    aes(
      slope=slope,
      intercept=margin_intercept_inv
    ),
    linetype="dashed"
  ) +
  geom_segment(
    data=cur_sup_df |> filter(is_sv),
    aes(x=sqm, y=yrs, xend=norm_cross_x, yend=norm_cross_y),
    color=cb_palette[4], linewidth=3
  ) +
  geom_segment(
    data=cur_sup_df,
    aes(x=sqm, y=yrs, xend=norm_cross_x, yend=norm_cross_y, linetype=is_sv)
  ) +
  geom_point(
    aes(color=Rating, shape=Rating), size=g_pointsize * 0.9,
    stroke=6
  ) +
  geom_point(aes(fill=Rating), color='black', shape=21, size=6, stroke=0.75, alpha=0.333) +
  scale_linetype_manual("Support\nVector?", values=c("dotted", "solid")) +
  labs(
    title = paste0("Left Hyperplane Distances"),
    x = "Square Meters",
    y = "Years Old"
  )

Code
# New calculation: line with same slope but that hits the SV
# y - y1 = m(x - x1), so...
# y - yrs = m(x - sqm) <=> y = m(x-sqm) + yrs <=> y = mx  - m*sqm + yrs
# <=> b = yrs - -m*sqm
cur_line_df <- sep_lines_df |> filter(slope < 0)
# left_line_df
# And make one copy per point
cur_sup_df <- uncount(cur_line_df, nrow(house_df))
cur_sup_df <- bind_cols(cur_sup_df, house_df)
cur_sup_df <- cur_sup_df |> mutate(
  norm_intercept = yrs - norm_slope * sqm,
  margin_intercept = yrs - slope * sqm,
  margin_intercept_gap = intercept - margin_intercept,
  margin_intercept_inv = intercept + margin_intercept_gap,
  norm_cross_x = -(norm_intercept - intercept) / (norm_slope - slope),
  x_gap = norm_cross_x - sqm,
  norm_cross_y = yrs + x_gap * norm_slope,
  vec_margin = abs(label * (b0 + b1 * sqm + b2 * yrs)),
  is_sv = vec_margin <= 25
)
base_plot +
  geom_abline(
    data=cur_line_df, aes(slope=slope, intercept=intercept), linetype="solid"
  ) +
  geom_abline(
    data=cur_sup_df |> filter(is_sv),
    aes(
      slope=slope,
      intercept=margin_intercept
    ),
    linetype="dashed"
  ) +
  geom_abline(
    data=cur_sup_df |> filter(is_sv),
    aes(
      slope=slope,
      intercept=margin_intercept_inv
    ),
    linetype="dashed"
  ) +
  # geom_abline(
  #   data=cur_line_df,
  #   aes(slope=slope, intercept=intercept),
  #   linewidth=3, color=cb_palette[4], alpha=0.333
  # ) +
  geom_segment(
    data=cur_sup_df |> filter(vec_margin <= 18),
    aes(x=sqm, y=yrs, xend=norm_cross_x, yend=norm_cross_y),
    color=cb_palette[4], linewidth=3
  ) +
  geom_segment(
    data=cur_sup_df,
    aes(x=sqm, y=yrs, xend=norm_cross_x, yend=norm_cross_y, linetype=is_sv)
  ) +
  geom_point(
    aes(color=Rating, shape=Rating), size=g_pointsize * 0.9,
    stroke=6
  ) +
  geom_point(aes(fill=Rating), color='black', shape=21, size=6, stroke=0.75, alpha=0.333) +
  scale_linetype_manual("Support\nVector?", values=c("dotted", "solid")) +
  labs(
    title = paste0("Right Hyperplane Margin"),
    x = "Square Meters",
    y = "Years Old"
  )

Optimal Max-Margin Hyperplane

  • On previous slides we chose from a small set of randomly-generated lines…
  • Now that we have max-margin objective, we can optimize over all possible lines!
  • Any hyperplane can be written as \(\beta_0 + \beta_1 x_{1} + \beta_2 x_{2} = 0\)

Let \(y_i = \begin{cases} +1 &\text{if house }i\text{ Liked} \\ -1 &\text{if house }i\text{ Disliked}\end{cases}\)

\[ \begin{align*} \underset{\beta_0, \beta_1, \beta_2, M}{\text{maximize}}\text{ } & M \\ \text{s.t. } & y_i(\beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2}) \geq M, \\ ~ & \beta_0^2 + \beta_1^2 + \beta_2^2 = 1 \end{align*} \]

  • \(\beta_0^2 + \beta_1^2 + \beta_2^2 = 1\) just ensures that \(y_i(\beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2})\) gives distance from hyperplane to \(x_i\)
Code
library(e1071)
liked <- as.factor(house_df$Rating == "Liked")
cent_df <- house_df
cent_df$sqm <- scale(cent_df$sqm)
cent_df$yrs <- scale(cent_df$yrs)
svm_model <- svm(liked ~ sqm + yrs, data=cent_df, kernel="linear")
cf <- coef(svm_model)
sep_intercept <- -cf[1] / cf[3]
sep_slope <- -cf[2] / cf[3]
# Invert Z-scores
sd_ratio <- sd(house_df$yrs) / sd(house_df$sqm)
inv_slope <- sd_ratio * sep_slope
inv_intercept <- mean(house_df$yrs) - inv_slope * mean(house_df$sqm) + sd(house_df$yrs)*sep_intercept
# And the margin boundary
sv_index <- svm_model$index[1]
sv_sqm <- house_df$sqm[sv_index]
sv_yrs <- house_df$yrs[sv_index]
margin_intercept <- sv_yrs - inv_slope * sv_sqm
margin_diff <- inv_intercept - margin_intercept
margin_intercept_inv <- inv_intercept + margin_diff
base_plot +
  coord_equal() +
  scale_shape_manual(values=c(95, 43)) +
  theme_dsan(base_size=14) +
  geom_abline(
    intercept=inv_intercept, slope=inv_slope, linetype="solid"
  ) +
  geom_abline(
    intercept=margin_intercept, slope=inv_slope, linetype="dashed"
  ) +
  geom_abline(
    intercept=margin_intercept_inv, slope=inv_slope, linetype="dashed"
  ) +
  geom_point(
    aes(color=Rating, shape=Rating), size=g_pointsize * 0.9,
    stroke=6
  ) +
  geom_point(aes(fill=Rating), color='black', shape=21, size=6, stroke=0.75, alpha=0.333) +
  scale_linetype_manual("Support\nVector?", values=c("dotted", "solid")) +
  labs(
    title = "Optimal Max-Margin Hyperplane",
    x = "Square Meters",
    y = "Years Old"
  )
Coordinate system already present. Adding new coordinate system, which will
replace the existing one.
Scale for shape is already present.
Adding another scale for shape, which will replace the existing scale.

When Does This Fail?

  • What do we do in this case? (No separating hyperplane!)
Code
# Generate gaussian blob of disliked + gaussian
# blob of liked :3
library(mvtnorm) |> suppressPackageStartupMessages()
set.seed(5304)
num_houses <- 100
# Shared covariance matrix
Sigma_all <- matrix(c(12,0,0,20), nrow=2, ncol=2, byrow=TRUE)
# Negative datapoints
mu_neg <- c(10, 12.5)
neg_matrix <- rmvnorm(num_houses/2, mean=mu_neg, sigma=Sigma_all)
colnames(neg_matrix) <- c("sqm", "yrs")
neg_df <- as_tibble(neg_matrix) |> mutate(Rating="Disliked")
# Positive datapoints
mu_pos <- c(21, 12.5)
pos_matrix <- rmvnorm(num_houses/2, mean=mu_pos, sigma=Sigma_all)
colnames(pos_matrix) <- c("sqm", "yrs")
pos_df <- as_tibble(pos_matrix) |> mutate(Rating="Liked")
# And combine
nonsep_df <- bind_rows(neg_df, pos_df)
nonsep_df <- nonsep_df |> filter(yrs >= 5 & sqm <= 24 & sqm >= 7)
# Plot
nonsep_plot <- nonsep_df |> ggplot(aes(x=sqm, y=yrs)) +
  labs(
    title = "Jeff's House Search",
    x = "Square Meters",
    y = "Years Old"
  ) +
  # xlim(6,25) + ylim(2,22) +
  coord_equal() +
  # 45 is minus sign, 95 is em-dash
  scale_shape_manual(values=c(95, 43)) +
  theme_dsan(base_size=22)
nonsep_plot +
  geom_point(
    aes(color=Rating, shape=Rating), size=g_pointsize * 0.25,
    stroke=6
  ) +
  geom_point(aes(fill=Rating), color='black', shape=21, size=4, stroke=0.75, alpha=0.333)

  • Here we need to keep in mind how our goal is relative to the Data-Generating Process!

No Separating Hyperplane? 😧

  • Don’t let the perfect be the enemy of the good!

Perfect vs. Good

  • In fact, “sub-optimal” may be better than optimal, in terms of overfitting!

ISLR Figure 9.5: Notice how the dashed line on the right side may be better in terms of generalization, even though the solid line is the optimal Max-Margin Hyperplane!

Support Vector Classifiers

  • Max-Margin Classifier + budget \(C\) for errors

Handling Non-Linearly-Separable Data

\[ \begin{align*} \underset{\beta_0, \beta_1, \beta_2, \varepsilon_1, \ldots, \varepsilon_n, M}{\text{maximize}}\text{ } \; & M \\ \text{s.t. } \; & y_i(\beta_0 + \beta_1 x_{i1} + \beta_2 x_{i2}) \geq M(1 - \varepsilon_i), \\ ~ & \varepsilon_i \geq 0, \sum_{i=1}^{n}\varepsilon_i \leq C, \\ ~ & \beta_0^2 + \beta_1^2 + \beta_2^2 = 1 \end{align*} \]

  • \(C = 0\) \(\implies\) Max-Margin Classifier
  • We want to choose \(C\) to optimize generalizability to unseen data… So, choose via Cross-Validation

“Slack” Variables

  • The \(\varepsilon_i\) values also give us valuable information!
  • \(\varepsilon_i = 0 \implies\) observation \(i\) on correct side of margin
  • \(0 < \varepsilon_i \leq 1 \implies\) observation \(i\) is within margin but on correct side of hyperplane
  • \(\varepsilon_i > 1 \implies\) observation \(i\) on wrong side of hyperplane

Image source

Our Non-Linearly-Separable Example



Code
library(e1071)
liked <- as.factor(nonsep_df$Rating == "Liked")
nonsep_cent_df <- nonsep_df
nonsep_cent_df$sqm <- scale(nonsep_cent_df$sqm)
nonsep_cent_df$yrs <- scale(nonsep_cent_df$yrs)
# Compute boundary for different cost budgets
budget_vals <- c(0.01, 1, 5)
svm_df <- tibble(
  sep_slope=numeric(), sep_intercept=numeric(),
  inv_slope=numeric(), inv_intercept=numeric(),
  margin_intercept=numeric(), margin_intercept_inv=numeric(),
  budget=numeric(), budget_label=character()
)
for (cur_c in budget_vals) {
  # print(cur_c)
  svm_model <- svm(liked ~ sqm + yrs, data=nonsep_cent_df, kernel="linear", cost=cur_c)
  cf <- coef(svm_model)
  sep_intercept <- -cf[1] / cf[3]
  sep_slope <- -cf[2] / cf[3]
  # Invert Z-scores
  sd_ratio <- sd(nonsep_df$yrs) / sd(nonsep_df$sqm)
  inv_slope <- sd_ratio * sep_slope
  inv_intercept <- mean(nonsep_df$yrs) - inv_slope * mean(nonsep_df$sqm) + sd(nonsep_df$yrs)*sep_intercept
  # And the margin boundary
  sv_index <- svm_model$index[1]
  sv_sqm <- nonsep_df$sqm[sv_index]
  sv_yrs <- nonsep_df$yrs[sv_index]
  margin_intercept <- sv_yrs - inv_slope * sv_sqm
  margin_diff <- inv_intercept - margin_intercept
  margin_intercept_inv <- inv_intercept + margin_diff
  cur_svm_row <- tibble_row(
    budget = cur_c,
    budget_label = paste0("Penalty = ",cur_c),
    sep_slope = sep_slope,
    sep_intercept = sep_intercept,
    inv_slope = inv_slope,
    inv_intercept = inv_intercept,
    margin_intercept = margin_intercept,
    margin_intercept_inv = margin_intercept_inv
  )
  svm_df <- bind_rows(svm_df, cur_svm_row)
}
ggplot() +
  # xlim(6,25) + ylim(2,22) +
  coord_equal() +
  # 45 is minus sign, 95 is em-dash
  scale_shape_manual(values=c(95, 43)) +
  theme_dsan(base_size=14) +
  geom_abline(
    data=svm_df,
    aes(intercept=inv_intercept, slope=inv_slope),
    linetype="solid"
  ) +
  geom_abline(
    data=svm_df,
    aes(intercept=margin_intercept, slope=inv_slope),
    linetype="dashed"
  ) +
  geom_abline(
    data=svm_df,
    aes(intercept=margin_intercept_inv, slope=inv_slope),
    linetype="dashed"
  ) +
  geom_point(
    data=nonsep_df,
    aes(x=sqm, y=yrs, color=Rating, shape=Rating), size=g_pointsize * 0.1,
    stroke=5
  ) +
  geom_point(
    data=nonsep_df,
    aes(x=sqm, y=yrs, fill=Rating), color='black', shape=21, size=3, stroke=0.75, alpha=0.333
  ) +
  labs(
    title = "Support Vector Classifier",
    x = "Square Meters",
    y = "Years Old"
  ) +
  facet_wrap(vars(budget_label), nrow=1) +
  theme(
    panel.border = element_rect(color = "black", fill = NA, size = 0.4)
  )
Warning: The `size` argument of `element_rect()` is deprecated as of ggplot2 3.4.0.
ℹ Please use the `linewidth` argument instead.

But… Why Restrict Ourselves to Lines?

  • We just spent 7 weeks learning how to move from linear to non-linear! Basic template:

\[ \text{Nonlinear model} = \text{Linear model} \underbrace{- \; \text{linearity restriction}}_{\text{Enables overfitting...}} \underbrace{+ \text{ Complexity penalty}}_{\text{Prevent overfitting}} \]

  • So… We should be able to find reasonable non-linear boundaries!

From MathWorks

Support Vector Machines

This is where stuff gets super…

Linear

Linear \(\rightarrow\) Linear

  • Old feature space: \(\mathcal{S} = \{X_1, \ldots, X_J\}\)
  • New feature space: \(\mathcal{S}^2 = \{X_1, X_1^2, \ldots, X_J, X_J^2\}\)
  • Linear boundary in \(\mathcal{S}^2\) \(\implies\) Quadratic boundary in \(\mathcal{S}\)
  • Helpful example: Non-linearly separable in 1D \(\leadsto\) Linearly separable in 2D

1D Hyperplane = point! But no separating point here 😰

Code
library(latex2exp) |> suppressPackageStartupMessages()
x_vals <- runif(50, min=-9, max=9)
data_df <- tibble(x=x_vals) |> mutate(
  label = factor(ifelse(abs(x) >= 6, 1, -1)),
  x2 = x^2
)
data_df |> ggplot(aes(x=x, y=0, color=label)) +
  geom_point(
    aes(color=label, shape=label), size=g_pointsize,
    stroke=6
  ) +
  geom_point(
    aes(fill=label), color='black', shape=21, size=6, stroke=0.75, alpha=0.333
  ) +
  # xlim(6,25) + ylim(2,22) +
  # coord_equal() +
  # 45 is minus sign, 95 is em-dash
  scale_shape_manual(values=c(95, 43)) +
  theme_dsan(base_size=28) +
  theme(
    axis.line.y = element_blank(),
    axis.text.y = element_blank(),
    axis.ticks.y = element_blank(),
    axis.title.y = element_blank()
  ) +
  xlim(-10, 10) +
  ylim(-0.1, 0.1) +
  labs(title="Non-Linearly-Separable Data") +
  theme(
    plot.margin = unit(c(0,0,0,20), "mm")
  )

Code

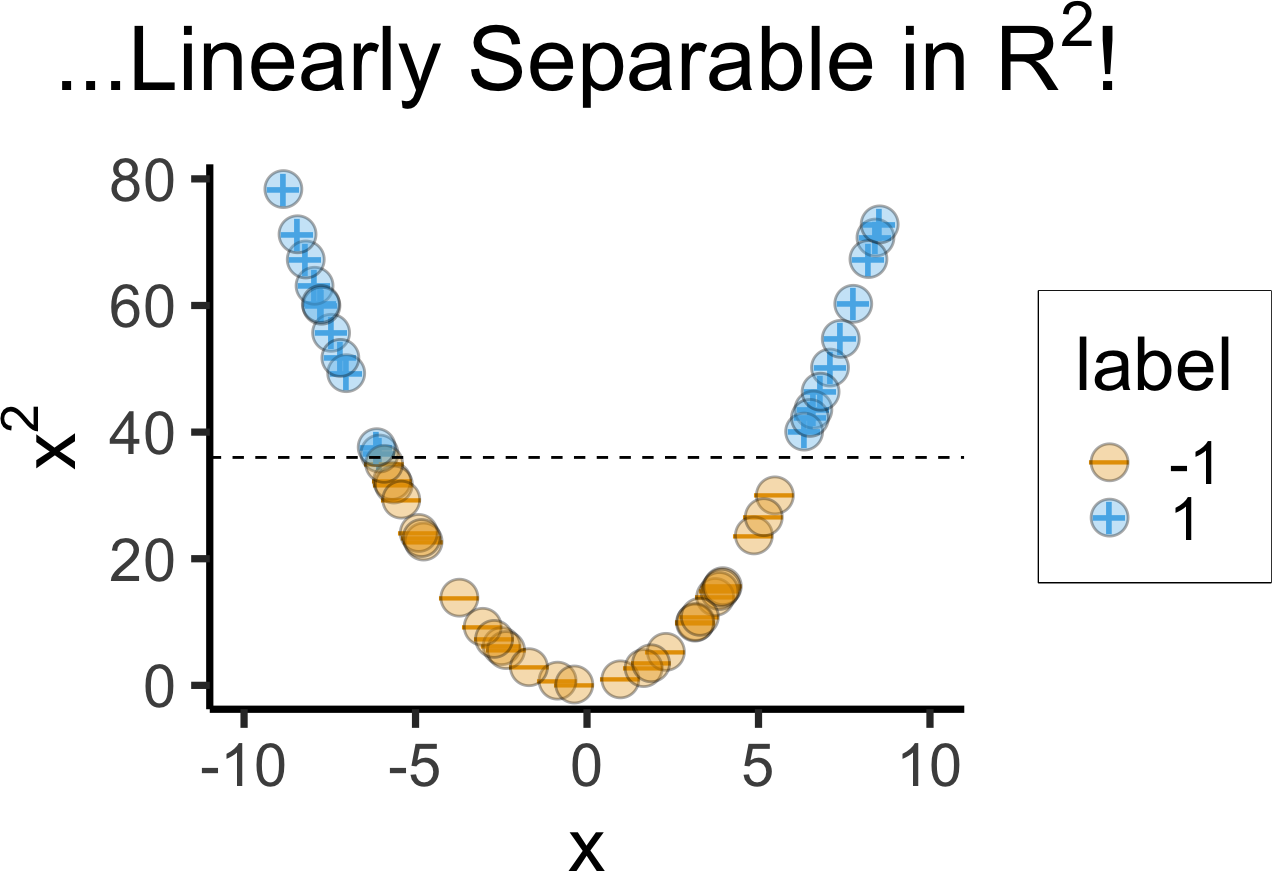

data_df |> ggplot(aes(x=x, y=x2, color=label)) +
  geom_point(
    aes(color=label, shape=label), size=g_pointsize,
    stroke=6
  ) +
  geom_point(
    aes(fill=label), color='black', shape=21, size=6, stroke=0.75, alpha=0.333
  ) +
  geom_hline(yintercept=36, linetype="dashed") +
  # xlim(6,25) + ylim(2,22) +
  # coord_equal() +
  # 45 is minus sign, 95 is em-dash
  scale_shape_manual(values=c(95, 43)) +
  theme_dsan(base_size=28) +
  xlim(-10, 10) +
  labs(
    title = TeX("...Linearly Separable in $R^2$!"),
    y = TeX("$x^2$")
  )

And in 3D…



Image Source

Taking This Idea and Running With It

  • The goal: find a transformation of the original space that the (non-linearly-separable) data lives in, such that data is linearly separable in new space
  • In theory, could just compute tons and tons of new features \(\{X_1, X_1^2, X_1^3, \ldots, X_1X_2, X_1X_3, \ldots, X_1^2X_2, X_1^2X_3, \ldots\}\)
  • In practice this “blows up” the dimensionality of the feature space, making SVM slower and slower
  • Weird trick (literally): turns out we only need inner products \(\langle x_i, x_j \rangle\) between datapoints… “Kernel Trick”

The Magic of Kernels

Radial Basis Function (RBF) Kernel:

\[ K(x_i, x_{i'}) = \exp\left[ -\gamma \sum_{j=1}^{J} (x_{ij} - x_{i'j})^2 \right] \]

Code
library(kernlab) |> suppressPackageStartupMessages()
library(mlbench) |> suppressPackageStartupMessages()
if (!file.exists("assets/linspike_df.rds")) {
  set.seed(5300)
  N <- 120
  x1_vals <- runif(N, min=-5, max=5)
  x2_raw <- x1_vals
  x2_noise <- rnorm(N, mean=0, sd=1.25)
  x2_vals <- x2_raw + x2_noise
  linspike_df <- tibble(x1=x1_vals, x2=x2_vals) |>
    mutate(
      label = factor(ifelse(x1^2 + x2^2 <= 2.75, 1, -1))
    )
  linspike_svm <- ksvm(
    label ~ x1 + x2,
    data = linspike_df,
    kernel = "rbfdot",
    C = 500,
    prob.model = TRUE
  )
  # Grid over which to evaluate decision boundaries
  npts <- 500
  lsgrid <- expand.grid(
    x1 = seq(from = -5, 5, length = npts),
    x2 = seq(from = -5, 5, length = npts)
  )
  # Predicted probabilities (as a two-column matrix)
  prob_svm <- predict(
    linspike_svm,
    newdata = lsgrid,
    type = "probabilities"
  )
  # Add predicted class probabilities
  lsgrid2 <- lsgrid |>
    cbind("SVM" = prob_svm[, 1L]) |>
    tidyr::gather(Model, Prob, -x1, -x2)

  # Serialize for quicker rendering
  saveRDS(linspike_df, "assets/linspike_df.rds")
  saveRDS(lsgrid2, "assets/lsgrid2.rds")
} else {
  linspike_df <- readRDS("assets/linspike_df.rds")
  lsgrid2 <- readRDS("assets/lsgrid2.rds")
}
linspike_df <- linspike_df |> mutate(
  Label = label
)
linspike_df |> ggplot(aes(x = x1, y = x2)) +
  # geom_point(aes(shape = label, color = label), size = 3, alpha = 0.75) +
  geom_point(aes(shape = Label, color = Label), size = 3, stroke=4) +
  geom_point(aes(fill=Label), color='black', shape=21, size=4, stroke=0.75, alpha=0.4) +
  xlab(expression(X[1])) +
  ylab(expression(X[2])) +
  coord_fixed() +
  theme(legend.position = "none") +
  theme_dsan(base_size=28) +
  xlim(-5, 5) + ylim(-5, 5) +
  stat_contour(
    data = lsgrid2,
    aes(x = x1, y = x2, z = Prob),
    breaks = 0.5,
    color = "black"
  ) +
  scale_shape_manual(values=c(95, 43))
Warning: Removed 15 rows containing missing values or values outside the scale range
(`geom_point()`).
Removed 15 rows containing missing values or values outside the scale range
(`geom_point()`).

Code
if (!file.exists("assets/spiral_df.rds")) {
  spiral_df <- as.data.frame(
    mlbench.spirals(300, cycles = 2, sd = 0.09)
  )
  names(spiral_df) <- c("x1", "x2", "label")

  # Fit SVM using a RBF kernel
  spirals_svm <- ksvm(
    label ~ x1 + x2,
    data = spiral_df,
    kernel = "rbfdot",
    C = 500,
    prob.model = TRUE
  )

  # Grid over which to evaluate decision boundaries
  npts <- 500
  xgrid <- expand.grid(
    x1 = seq(from = -2, 2, length = npts),
    x2 = seq(from = -2, 2, length = npts)
  )

  # Predicted probabilities (as a two-column matrix)
  prob_svm <- predict(
    spirals_svm,
    newdata = xgrid,
    type = "probabilities"
  )

  # Add predicted class probabilities
  xgrid2 <- xgrid |>
    cbind("SVM" = prob_svm[, 1L]) |>
    tidyr::gather(Model, Prob, -x1, -x2)

  # Serialize for quicker rendering
  saveRDS(spiral_df, "assets/spiral_df.rds")
  saveRDS(xgrid2, "assets/xgrid2.rds")
} else {
  spiral_df <- readRDS("assets/spiral_df.rds")
  xgrid2 <- readRDS("assets/xgrid2.rds")
}
# And plot
spiral_df <- spiral_df |> mutate(
  Label = factor(ifelse(label == 2, 1, -1))
)
spiral_df |> ggplot(aes(x = x1, y = x2)) +
  geom_point(aes(shape = Label, color = Label), size = 3, stroke=4) +
  geom_point(aes(fill=Label), color='black', shape=21, size=4, stroke=0.75, alpha=0.4) +
  xlab(expression(X[1])) +
  ylab(expression(X[2])) +
  xlim(-2, 2) +
  ylim(-2, 2) +
  coord_fixed() +
  theme(legend.position = "none") +
  theme_dsan(base_size=28) +
  stat_contour(
    data = xgrid2,
    aes(x = x1, y = x2, z = Prob),
    breaks = 0.5,
    color = "black"
  ) +
  scale_shape_manual("Label", values=c(95, 43))

Based on code from Boehmke and Greenwell (2019), Ch 14

How Is This Possible?

  • SVM prediction for an observation \(\mathbf{x}\) can be rewritten as

\[ f(\mathbf{x}) = \beta_0 + \sum_{i=1}^{n} \alpha_i \langle \mathbf{x}, \mathbf{x}_i \rangle \]

  • Rather than one parameter \(\beta_j\) per feature, we have one parameter \(\alpha_i\) per observation
  • At first this seems worse, since usually \(n > p\)… But we’re saved by support vectors!
  • Since the margin itself is only a function of the support vectors (not every vector—remember that margin \(\neq\) average distance!), \(\alpha_i > 0\) only when \(\mathbf{x}_i\) a support vector!
  • Thus the equation becomes \(f(\mathbf{x}) = \beta_0 + \sum_{i \in \mathcal{SV}} \alpha_i \langle \mathbf{x}, \mathbf{x}_i \rangle\), and there’s one step left…
  • Kernel \(K\) = similarity function (generalization of inner product!)

\[ f(\mathbf{x}) = \beta_0 + \sum_{i \in \mathcal{SV}} \alpha_i K(\mathbf{x}, \mathbf{x}_i) \]

Inner Products are Already Similarities!

  • When linearly separable, this is exactly the property we use (by computing inner product of new vector \(\mathbf{x}\) with support vectors \(\mathbf{x}_i\)) to classify!

Interactive demo
  • Why restrict ourselves to this similarity function? Choosing \(K\) converts the problem:
    • From finding transformation of features allowing linear separability
    • To finding similarity function for observations allowing linear separability

Kernel Trick as Two-Sided Swiss Army Knife

  • If we have a linearly-separating transformation (like \(f(x) = x^2\)), can “encode” as kernel, saving computation

  • Example: Transformation of features \(f(x) = x^2\) equivalent to quadratic kernel:

    \[ K(x_i, x_{i'}) = (1 + \sum_{j = 1}^{p}x_{ij}x_{i'j})^2 \]

  • If we don’t have a transformation (and having trouble figuring it out), can change the problem into one of finding a “good” similarity function

  • Example: Look again at RBF Kernel:

    \[ K(x_i, x_{i'}) = \exp\left[ -\gamma \sum_{j=1}^{J} (x_{ij} - x_{i'j})^2 \right] \]

  • It turns out: no finite collection of transformed features is equivalent to this kernel! (Roughly: can keep adding transformed features to asymptotically approach it—space of SVMs w/kernel thus \(>\) space of SVMs w/transformed features)

References

Boehmke, Brad, and Brandon M. Greenwell. 2019. Hands-On Machine Learning with R. CRC Press.
