Week 5B: Joint, Marginal, and Conditional Distributions

DSAN 5100: Probabilistic Modeling and Statistical Computing
Section 01

Purna Gamage, Amineh Zadbood, and Jeff Jacobs

Tuesday, September 23, 2025

Frequency Tables \(\leftrightarrow\) Probabilities

\[ \DeclareMathOperator*{\argmax}{argmax} \DeclareMathOperator*{\argmin}{argmin} \newcommand{\bigexp}[1]{\exp\mkern-4mu\left[ #1 \right]} \newcommand{\bigexpect}[1]{\mathbb{E}\mkern-4mu \left[ #1 \right]} \newcommand{\convergesAS}{\overset{\text{a.s.}}{\longrightarrow}} \newcommand{\definedas}{\overset{\text{def}}{=}} \newcommand{\definedalign}{\overset{\phantom{\text{def}}}{=}} \newcommand{\eqeventual}{\overset{\mathclap{\text{\small{eventually}}}}{=}} \newcommand{\Err}{\text{Err}} \newcommand{\expect}[1]{\mathbb{E}[#1]} \newcommand{\expectsq}[1]{\mathbb{E}^2[#1]} \newcommand{\fw}[1]{\texttt{#1}} \newcommand{\given}{\mid} \newcommand{\green}[1]{\color{green}{#1}} \newcommand{\heads}{\outcome{heads}} \newcommand{\iid}{\overset{\text{\small{iid}}}{\sim}} \newcommand{\lik}{\mathcal{L}} \newcommand{\loglik}{\ell} \newcommand{\mle}{\textsf{ML}} \newcommand{\nimplies}{\;\not\!\!\!\!\implies} \newcommand{\orange}[1]{\color{orange}{#1}} \newcommand{\outcome}[1]{\textsf{#1}} \newcommand{\param}[1]{{\color{purple} #1}} \newcommand{\pgsamplespace}{\{\green{1},\green{2},\green{3},\purp{4},\purp{5},\purp{6}\}} \newcommand{\prob}[1]{P\left( #1 \right)} \newcommand{\purp}[1]{\color{purple}{#1}} \newcommand{\sign}{\text{Sign}} \newcommand{\spacecap}{\; \cap \;} \newcommand{\spacewedge}{\; \wedge \;} \newcommand{\tails}{\outcome{tails}} \newcommand{\Var}[1]{\text{Var}[#1]} \newcommand{\bigVar}[1]{\text{Var}\mkern-4mu \left[ #1 \right]} \]

Frequency Tables

• What does Table 1 tell us on its own (before computing proportions in our heads) that is useful for probability?
• Answer: Not much!
• But, once we find the overall total, it tells us a lot (everything we need to know!)

	\(H = 0\)	\(H = 1\)
\(G = 10\)	10	5
\(G = 11\)	6	4
\(G = 12\)	7	1

Table 1: A frequency table of HS students
(\(G\) = grade, \(H\) = honors status)
Tells us, e.g., 5 honors students in grade 10

A frequency table where each row corresponds to a grade in a certain senior high school, each column corresponds to honor-student-status (\(H=1\) represents honors, \(H=0\) represents non-honors), and each cell contains the number of students in that grade with that honors-status

Why Do We Need The Total?

• Q1: Someone asks the probability that a randomly-selected student will be an honor student in 11th grade.
• Q2: Someone asks what proportion of students are honors
• Q3: Someone asks what % of 12th grade are honors

Q1, for example, is asking us for \(\Pr(G = 11, H = 1)\), a question we can answer if we know the joint distribution \(f_{G,H}(g, h)\)

Back to the Naïve Definition

Using our naïve definition of probability, we can compute this probability using the frequencies in the table as

\[ \Pr(G = 11, H = 1) = \frac{\#[G = 11, H = 1]}{\#\text{ Students Total}} \]

Plugging in the values from Table 1, we obtain the answer:

\[ \Pr(G = 11, H = 1) = \frac{4}{33} \approx 0.121 \]

Frequency Table → Probability Table

• When we divide by 33, we are normalizing the counts, producing probabilities (normalized counts)
• By normalizing all cells in the table, we convert our frequency table into a probability table

Computing Overall Total by Column

We could compute the total by summing columns, then summing over our individual column totals to get 33:

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	10	5
\(G = 11\)	6	4
\(G = 12\)	7	1
Total	23	10	33

Computing Overall Total by Row

Or, we could compute the total by summing rows, then summing over our individual row totals to get 33:

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	10	5	15
\(G = 11\)	6	4	10
\(G = 12\)	7	1	8
Total			33

Bringing Both Methods Together

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	10	5	15
\(G = 11\)	6	4	10
\(G = 12\)	7	1	8
Total	23	10	33

Table 2: The same frequency table as in Table 1, but now with row and column totals representing marginal frequencies

Frequencies to Probabilities

Now let’s use overall total (33) to convert counts into probabilities:

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	\(\frac{10}{33}\)	\(\frac{5}{33}\)	\(\frac{15}{33}\)
\(G = 11\)	\(\frac{6}{33}\)	\(\frac{4}{33}\)	\(\frac{10}{33}\)
\(G = 12\)	\(\frac{7}{33}\)	\(\frac{1}{33}\)	\(\frac{8}{33}\)
Total	\(\frac{23}{33}\)	\(\frac{10}{33}\)	\(\frac{33}{33}\)

Table 3: Table from prev slide with all values normalized (divided by the total number of obs)

Distributions in Discrete World

• Discrete = “Easy mode”: Based (intuitively) on sets

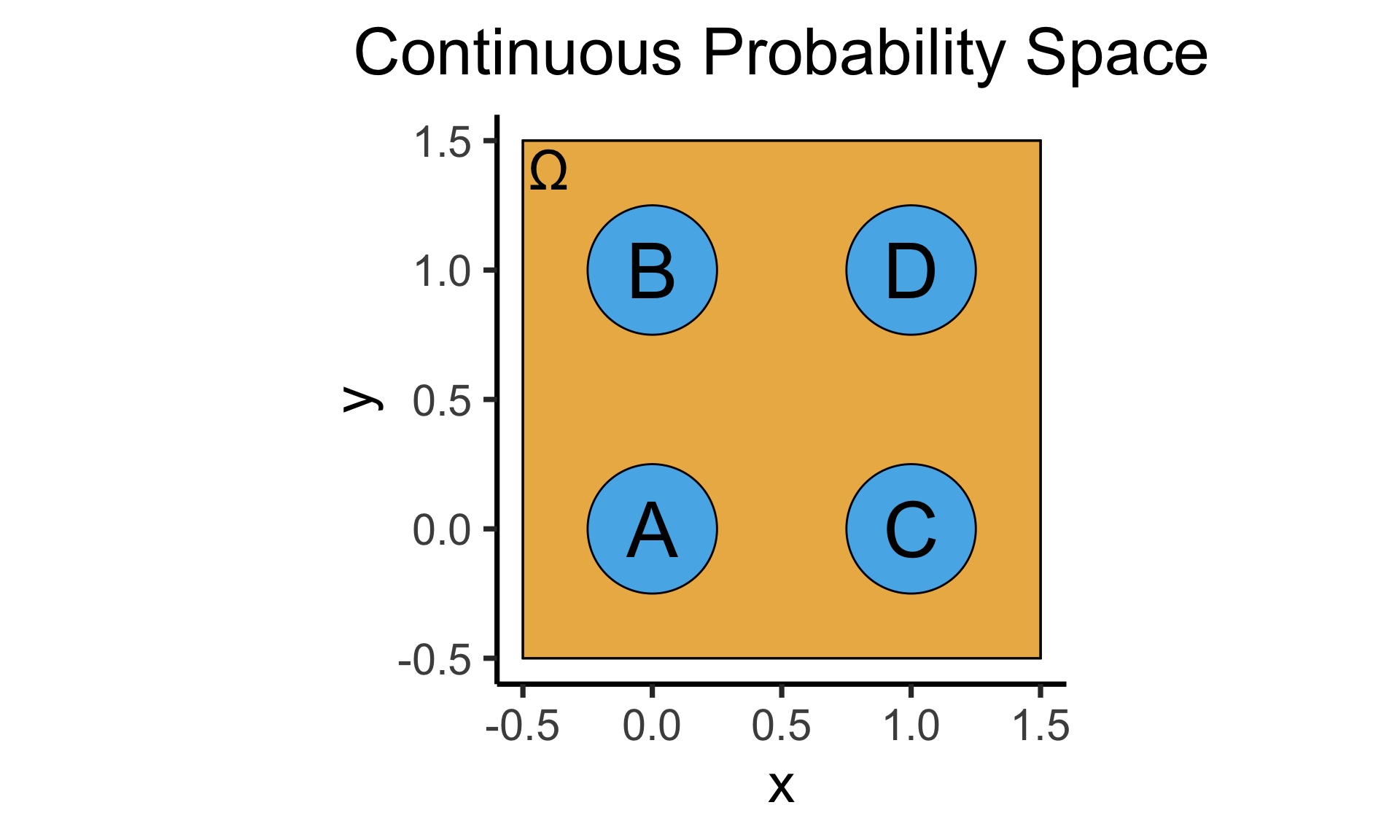

• \(\Pr(A)\): Four equally-likely marbles \(\{A, B, C, D\}\) in box, what is probability I pull out \(A\)?

\[ \Pr(A) = \underset{\mathclap{\small \text{Probability }\textbf{mass}}}{\boxed{\frac{|\{A\}|}{|\Omega|}}} = \frac{1}{|\{A,B,C,D\}|} = \frac{1}{4} \]

• Continuous = “Hard mode”: Based (intuitively) on areas
• \(\Pr(A)\): Throw dart at random point in square, what is probability I hit \(\require{enclose}\enclose{circle}{\textsf{A}}\)?

\[ \Pr(A) = \underset{\mathclap{\small \text{Probability }\textbf{density}}}{\boxed{\frac{\text{Area}(\{A\})}{\text{Area}(\Omega)}}} = \frac{\pi r^2}{s^2} = \frac{\pi \left(\frac{1}{4}\right)^2}{4} = \frac{\pi}{64} \]

One Table, Three Distributions!

Now that we have normalized counts, different pieces of this table give different probability distributions:

Joint Distribution \(f_{G,H}(g, h)\): Look at value in row \(g\), col \(h\)

Two Marginal Distributions

\(f_G(g)\): Look at total for row \(g\)

\(f_H(h)\): Look at total for column \(h\)

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	\(\frac{10}{33}\)	\(\frac{5}{33}\)	\(\frac{15}{33}\)
\(G = 11\)	\(\frac{6}{33}\)	\(\frac{4}{33}\)	\(\frac{10}{33}\)
\(G = 12\)	\(\frac{7}{33}\)	\(\frac{1}{33}\)	\(\frac{8}{33}\)
Total	\(\frac{23}{33}\)	\(\frac{10}{33}\)	\(\frac{33}{33}\)

Summary: Joint → Marginal

• Note how marginal distributions were obtained by summing the joint distribution over a particular dimension:
• Summing each column (\(H = 0\) and \(H = 1\)) produced marginal distribution of \(H\):

	\(\Pr(H = 0, G = 10)\)
+	\(\Pr(H = 0, G = 11)\)
+	\(\Pr(H = 0, G = 12)\)
=	\(\Pr(H = 0)\)

	\(\Pr(H = 1, G = 10)\)
+	\(\Pr(H = 1, G = 11)\)
+	\(\Pr(H = 1, G = 12)\)
=	\(\Pr(H = 1)\)

• Summing each row (\(G = 10\), \(G = 11\), \(G = 12\)) produced marginal distribution of \(G\):

\(\Pr(G = 10, H = 0)\)	+	\(\Pr(G = 10, H = 1)\)	=	\(\Pr(G = 10)\)
\(\Pr(G = 11, H = 0)\)	+	\(\Pr(G = 11, H = 1)\)	=	\(\Pr(G = 11)\)
\(\Pr(G = 12, H = 0)\)	+	\(\Pr(G = 12, H = 1)\)	=	\(\Pr(G = 12)\)

What’s Missing? Conditional Distributions

• Conditional distribution does not represent a sum but a slice: we consider e.g. one particular row or one particular column of the table.
• 🚨Warning🚨! unlike in joint and marginal cases, when computing conditional distributions we have to renormalize, since we are “entering world” where we only consider subsets of the table where condition is met!
• Recall slide about how all distributions are conditional distributions:

\(\Pr(G = 10, H = 1)\)

\[ \begin{align*} = &\Pr(G = 10, H = 1 \mid \Omega) \\[0.6em] = &\frac{\#(G = 10, H = 1, \Omega)}{\#\text{ Total }(\Omega)\text{ ✅}} \end{align*} \]

\(\Pr(G = 10)\)

\[ \begin{align*} = &\Pr(G = 10 \mid \Omega) \\[0.6em] = &\frac{\#(G = 10, \Omega)}{\#\text{ Total }(\Omega)\text{ ✅}} \end{align*} \]

\(\Pr(G = 10 \mid H = 1)\)

\[ \begin{align*} = &\frac{\Pr(G = 10, H = 1)}{\Pr(H = 1)} \\[0.6em] = &\frac{\#(G = 10, H = 1)}{\#(H = 1)\text{ 😳}} \end{align*} \]

Conditional Distributions from Columns

Let’s extract just the \(H = 1\) column:

	\(H = 1\)
\(G = 10\)	5
\(G = 11\)	4
\(G = 12\)	1
Total	10

	\(H = 1\)
\(G = 10\)	\(\frac{5}{10}\)
\(G = 11\)	\(\frac{4}{10}\)
\(G = 12\)	\(\frac{1}{10}\)
Total	\(\frac{10}{10}\)

• Before, 10 was a particular marginal frequency of interest; now 10 is just a total that we use to renormalize

Conditional Distributions from Rows

Let’s extract just the \(G = 10\) row:

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	5	10	15

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	\(\frac{5}{15}\)	\(\frac{10}{15}\)	\(\frac{15}{15}\)

• Before, 15 was a particular marginal frequency of interest; now 15 is just a total that we use to renormalize

Discrete World Summary

We now have the link between three types of distributions derived from our table:

Distribution Type	How Many?	Example Value
Joint Distribution	1	\(\Pr(G = 11, H = 1) = \frac{4}{33}\)
Marginal Distributions	2	\(\Pr(H = 1) = \frac{10}{33}\)
Conditional Distributions	6	\(\Pr(G = 10 \mid H = 1) = \frac{5}{10}\)

	\(H = 0\)	\(H = 1\)	Total
\(G = 10\)	\(\frac{10}{33}\)	\(\frac{5}{33}\)	\(\frac{15}{33}\)
\(G = 11\)	\(\frac{6}{33}\)	\(\frac{4}{33}\)	\(\frac{10}{33}\)
\(G = 12\)	\(\frac{7}{33}\)	\(\frac{1}{33}\)	\(\frac{8}{33}\)
Total	\(\frac{23}{33}\)	\(\frac{10}{33}\)	\(\frac{33}{33}\)

	\(H = 0\)	\(H = 1\)
\(G = 10\)	\(\frac{10}{23}\)	\(\frac{5}{10}\)
\(G = 11\)	\(\frac{6}{23}\)	\(\frac{4}{10}\)
\(G = 12\)	\(\frac{7}{23}\)	\(\frac{1}{10}\)
Total	\(\frac{23}{23}\)	\(\frac{10}{10}\)

Working Backwards

• Here we started from the joint distribution and derived marginal and conditional distributions
• Same intuition, plus math, lets us go in opposite direction: given marginal and conditional distributions, can derive joint distribution, since (conditional prob defn):

\(\Pr(A \mid B)\)	\(=\)	\(\Pr(A, B)\)
		\(\Pr(B)\)

\[ \iff \]

\(\Pr(A,B)\)

\(=\)

\(\Pr(A \mid B)\)

\(\cdot\)

\(\Pr(B)\)

from which we can see that if we know the conditional distribution \(\Pr(B \mid A)\) and the marginal distribution \(\Pr(A)\), we can combine these (via multiplication) to obtain the joint distribution \(\Pr(B,A)\).
